63 mm NC Pneumatic PA Actuator - 2000 - 468908

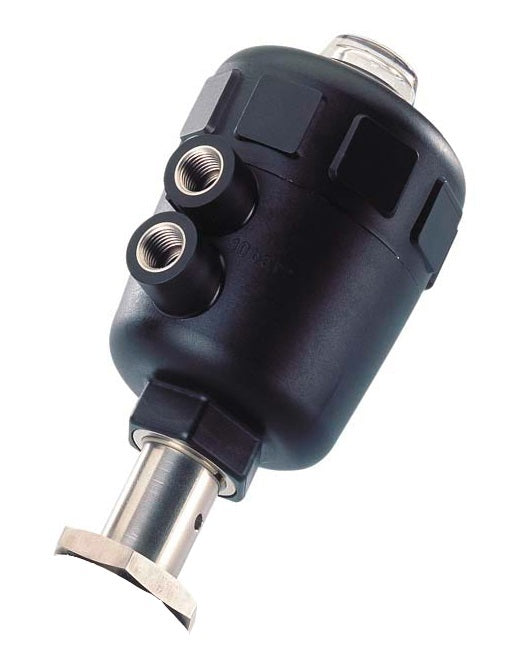

This pneumatic actuator, for series 2000 angle seat valves, has a PA housing with a 63 mm size. Normally closed (NC), which means the valve opens when air is applied. The stainless steel housing is durable, suitable for corrosive media and harsh environments. Suitable for media temperatures ranging from -10 to 185°C (14 to 365°F).
- Regular price
- £190.94
Description
This pneumatic actuator, for series 2000 angle seat valves, has a PA housing with a 63 mm size. Normally closed (NC), which means the valve opens when air is applied. The stainless steel housing is durable, suitable for corrosive media and harsh environments. Suitable for media temperatures ranging from -10 to 185°C (14 to 365°F).
Pros:
- The actuator is designed for direct mounting of a Burkert 8697 feedback and control unit (not included)
Series
The Bürkert type 2000 2/2-way angle seat valve is a pneumatically actuated on/off valve. The CLASSIC pneumatically operated piston actuator is available in PA, or PPS for higher ambient temperatures. The valve body has been optimized for excellent flow properties and is equipped with a self-adjusting packing gland for added tightness and long-term reliability. These valves are suitable for high viscosity media of up to 600 mm2/s. This valve can be controlled through the use of a pilot valve or through central automation with a valve island. The valve can be fitted with accessories like electrical position feedback, manual override or stroke limitation.
