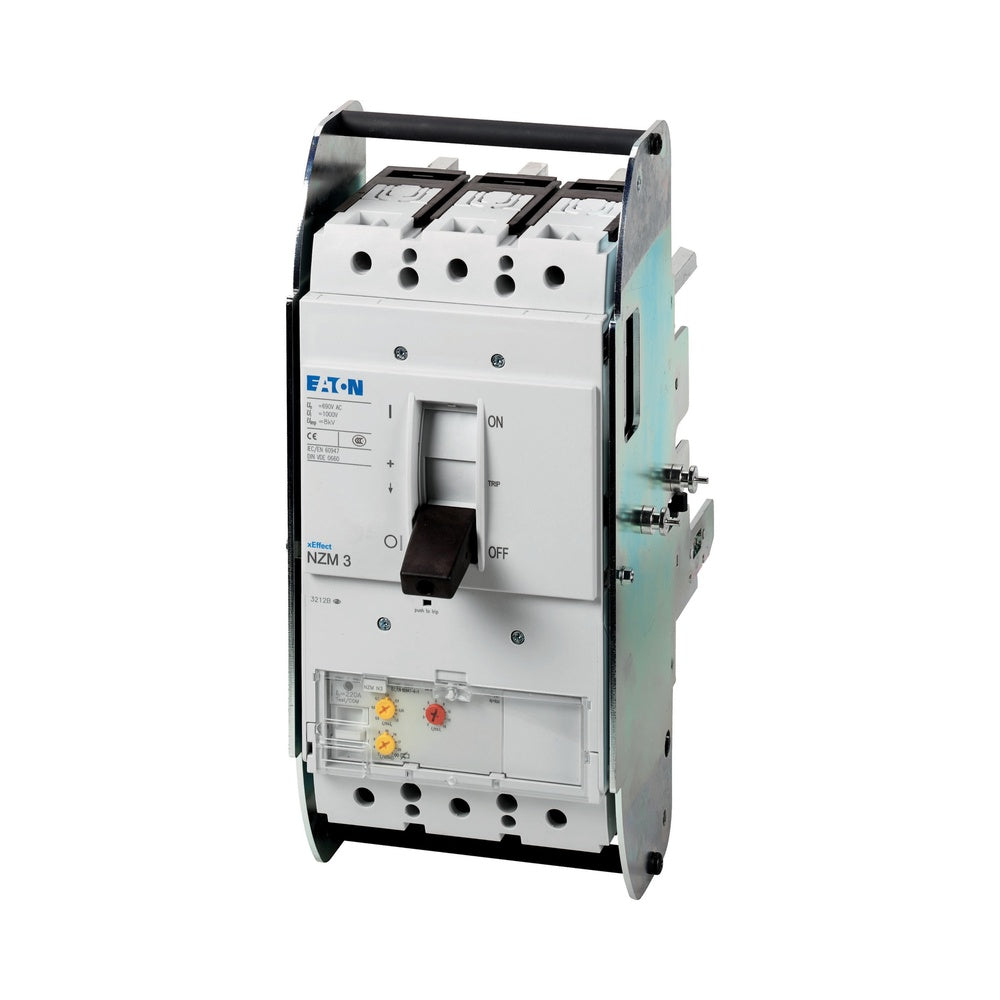

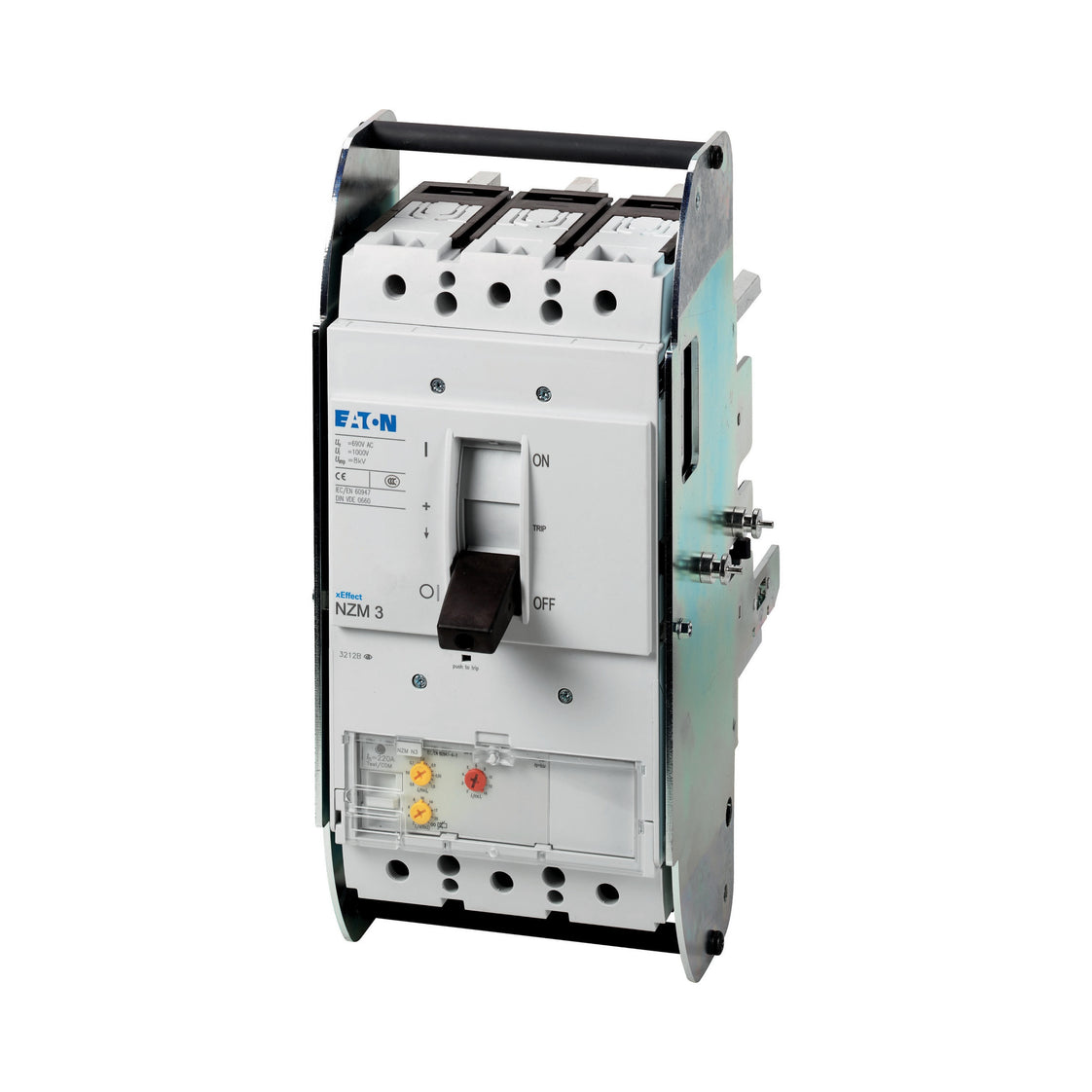

Eaton 3P 350A Circuit Breaker with Withdrawable Unit - 110847
Eaton Industries' MCCB motor protection circuit breaker measures 185x260x346mm with an adjustable overload protection range of 175 - 350A. It features a built-in installation slide device, a nominal continuous current Iu of 350A, and a screw connection for the main current circuit. The circuit breaker employs electronic shutoff technology. Specifically, the NZM..-ME series circuit breakers adhere to IEC/EN 60947-4-1 and IEC/EN 60947-2 standards, offering flexibility in mounting due to their modular function groups. They provide motor protection with phase failure sensitivity, r.m.s. value measurement, thermal memory, and adjustable time delay settings to compensate for current peaks tr:2-20 at 6xIr or infinity (without overload release).
- Regular price
- £2,068.38
Description
Eaton Industries' MCCB motor protection circuit breaker measures 185x260x346mm with an adjustable overload protection range of 175 - 350A. It features a built-in installation slide device, a nominal continuous current Iu of 350A, and a screw connection for the main current circuit. The circuit breaker employs electronic shutoff technology. Specifically, the NZM..-ME series circuit breakers adhere to IEC/EN 60947-4-1 and IEC/EN 60947-2 standards, offering flexibility in mounting due to their modular function groups. They provide motor protection with phase failure sensitivity, r.m.s. value measurement, thermal memory, and adjustable time delay settings to compensate for current peaks tr:2-20 at 6xIr or infinity (without overload release).
