Belimo Characterized Valve Rp1 Kvs7 24VAC/DC Fail-Safe 75s 2-point 1Nm IP40 Terminal C225Q-K/CQK24A-T

Belimo Characterized Valve Rp1 Kvs7 24VAC/DC Fail-Safe 75s 2-point 1Nm IP40 Terminal C225Q-K/CQK24A-T
Belimo Characterized Valve Rp1 Kvs7 24VAC/DC Fail-Safe 75s 2-point 1Nm IP40 Terminal C225Q-K/CQK24A-T
Belimo Characterized Valve Rp1 Kvs7 24VAC/DC Fail-Safe 75s 2-point 1Nm IP40 Terminal C225Q-K/CQK24A-T
Image may vary slightly
See specifications for accurate information.
Reference: V2WUN
Brand: Belimo
Mfr. Part: C225Q-K/CQK24A-T

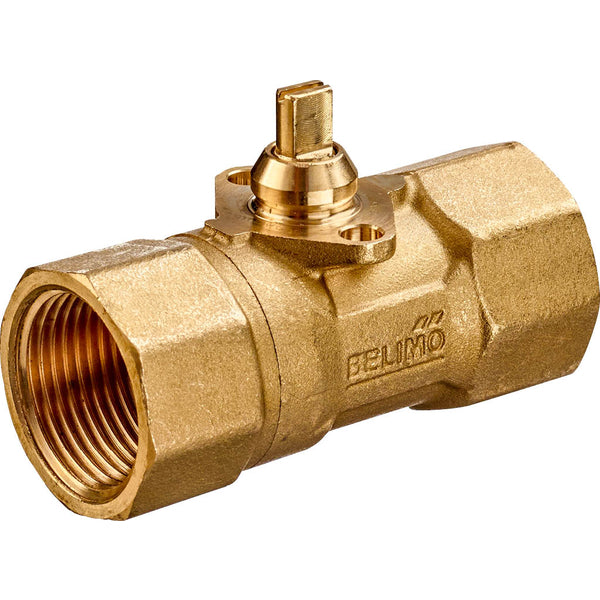

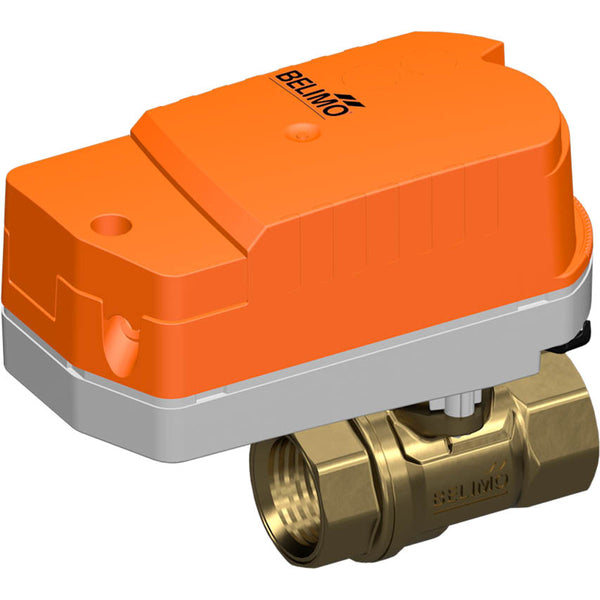

This is a Belimo 2-way characterized ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 25 and the port size is Rp 1 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 7 m3/h, equivalent to a Cv-value of 8.1 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point (open-close) control. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating. The actuator is equipped with a fail-safe (NC) feature that ensures safe operation in the event of a power failure.

View all
Note: product cannot be returned
Regular price
£194.35
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 19 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a Belimo 2-way characterized ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 25 and the port size is Rp 1 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 7 m3/h, equivalent to a Cv-value of 8.1 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point (open-close) control. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating. The actuator is equipped with a fail-safe (NC) feature that ensures safe operation in the event of a power failure.

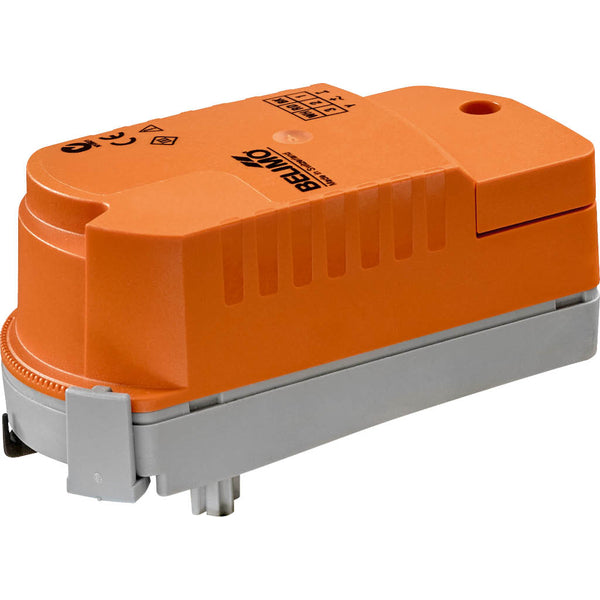

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Remove the actuator by clicking it out, and then use the actuator to rotate the valve spindle. The actuator can be hand-mounted onto the valve without requiring tools. Just ensure only vertical movements (Caution!). The pins should align with the flange holes. The mounting orientation can be configured in 180° increments in relation to the valve. The actuator's rotation angle can be adjusted in increments of 2.5° using a clip. This feature is used for setting the valve's maximum flow rate. The actuator simultaneously moves the valve to the required operating position and charges the integrated capacitors. If the power supply is interrupted, the stored electrical energy moves the valve to the fail-safe position, considering a factory-set bridging time of 1 second. The capacitor actuators require a pre-charging period to bring the capacitors to a usable voltage level. This ensures that, in case of a power failure, the actuator can move from its current position into the fail-safe position at any time. After factory delivery, the actuator is fully discharged and requires approximately 25 seconds of pre-charging before the initial setup to elevate the capacitors to the necessary voltage level.

Pros:

  • The actuator is equipped with a fail-safe feature
