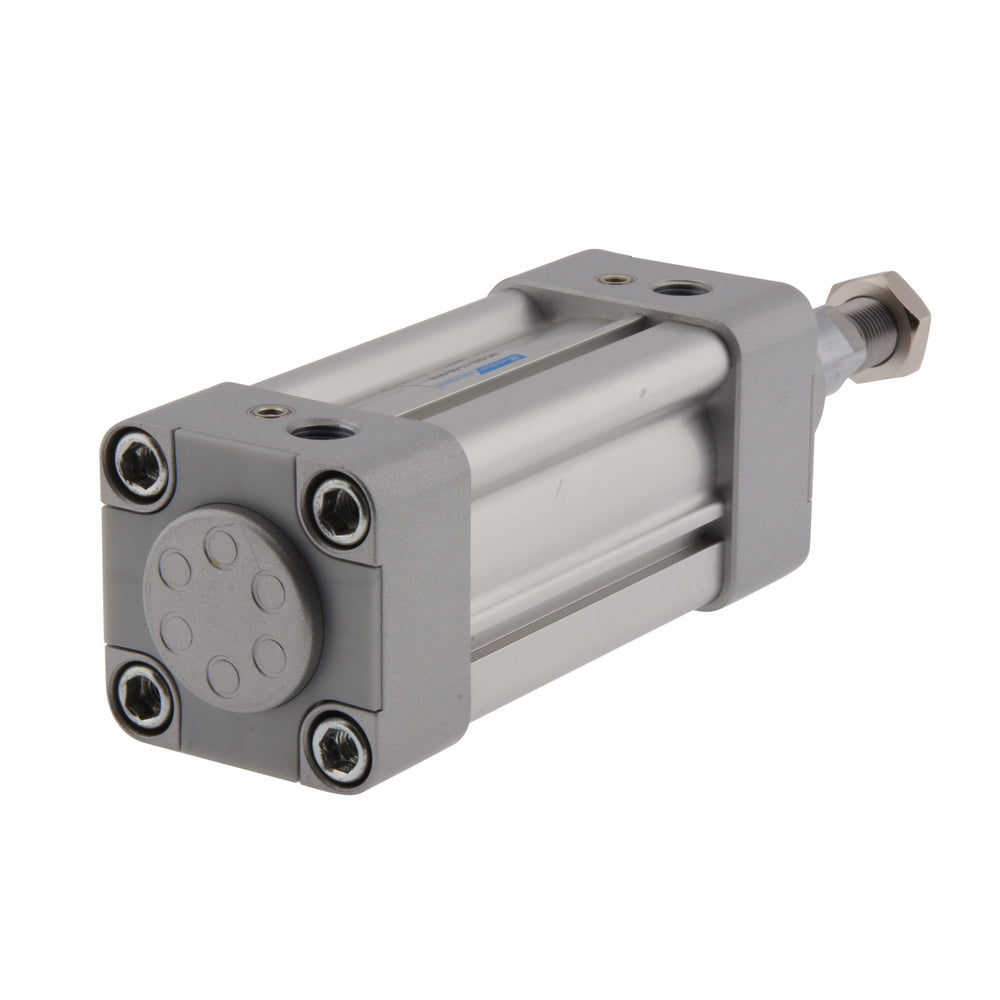

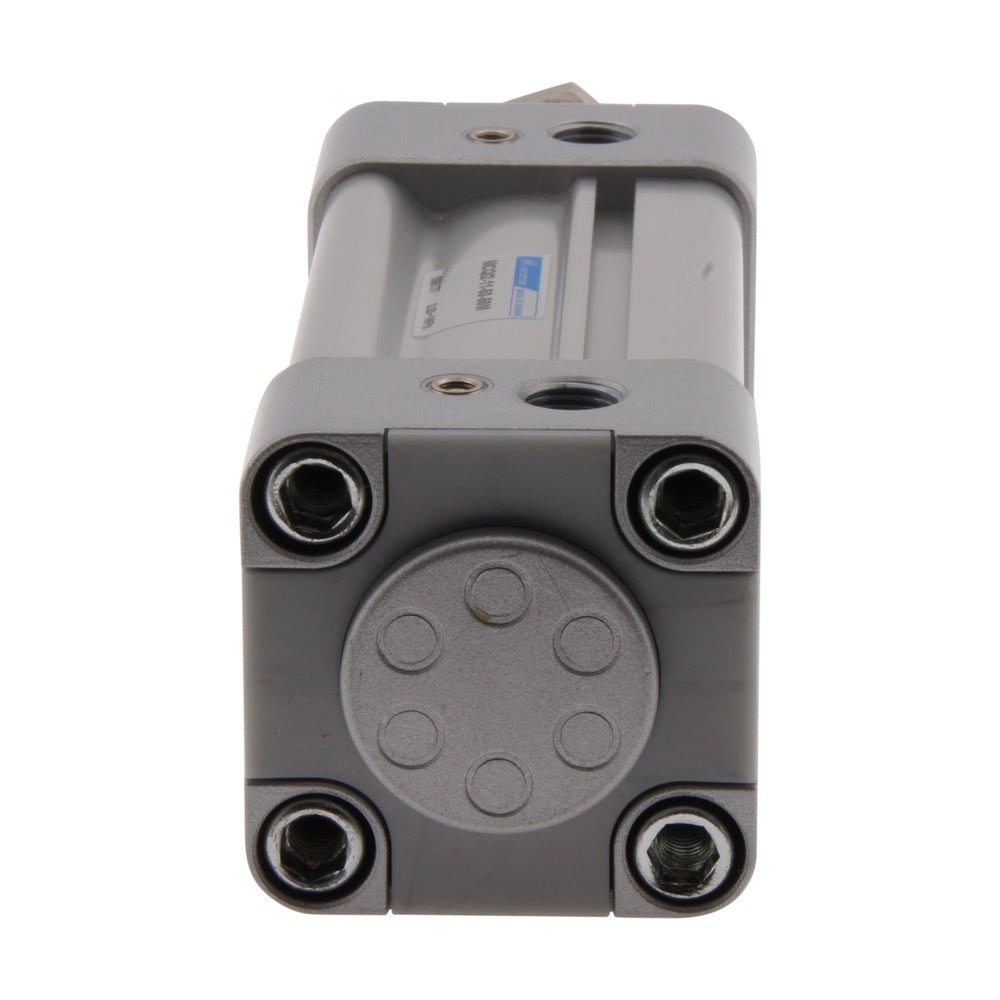

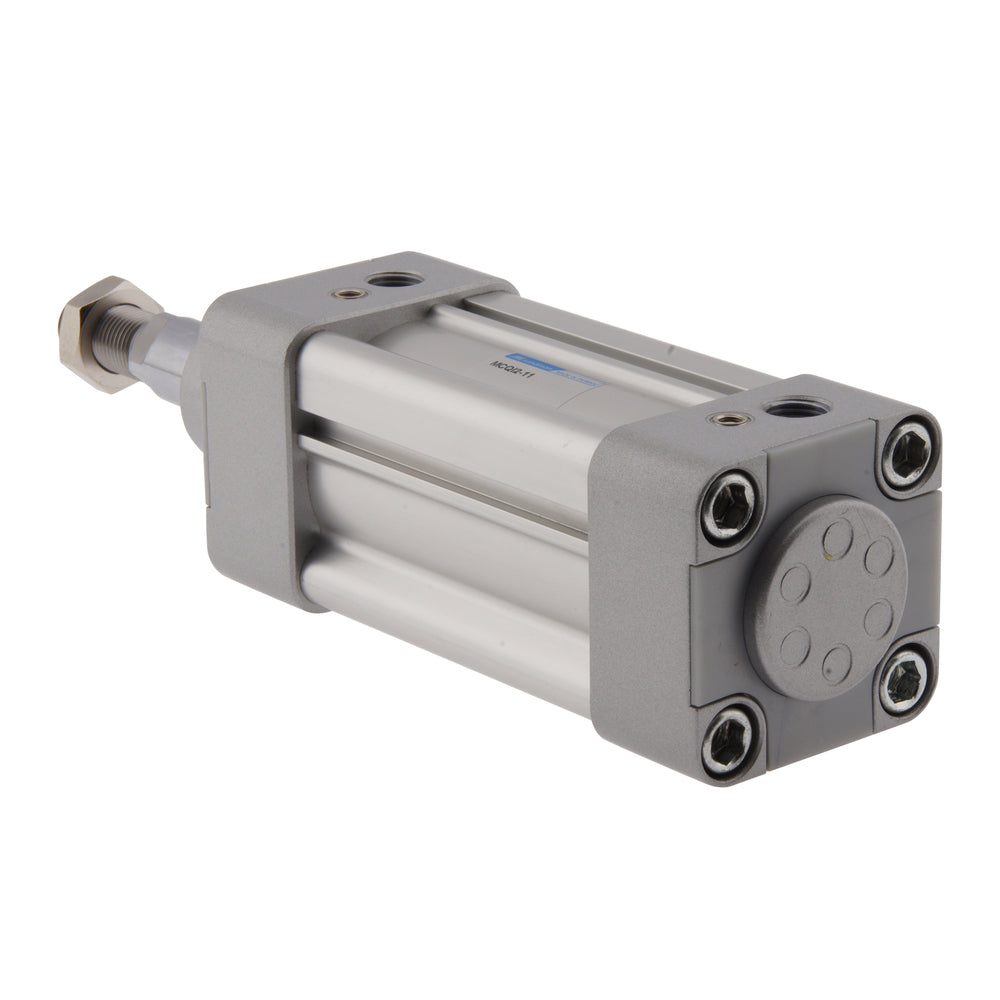

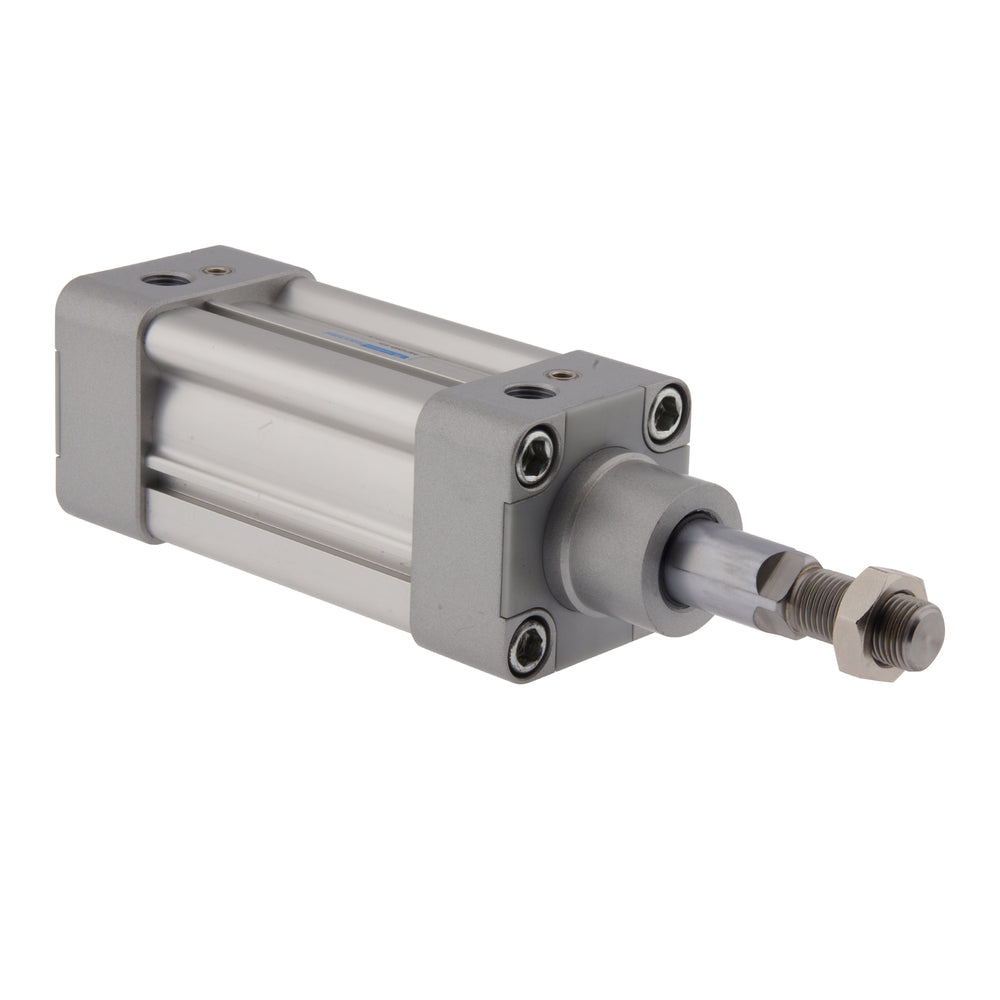

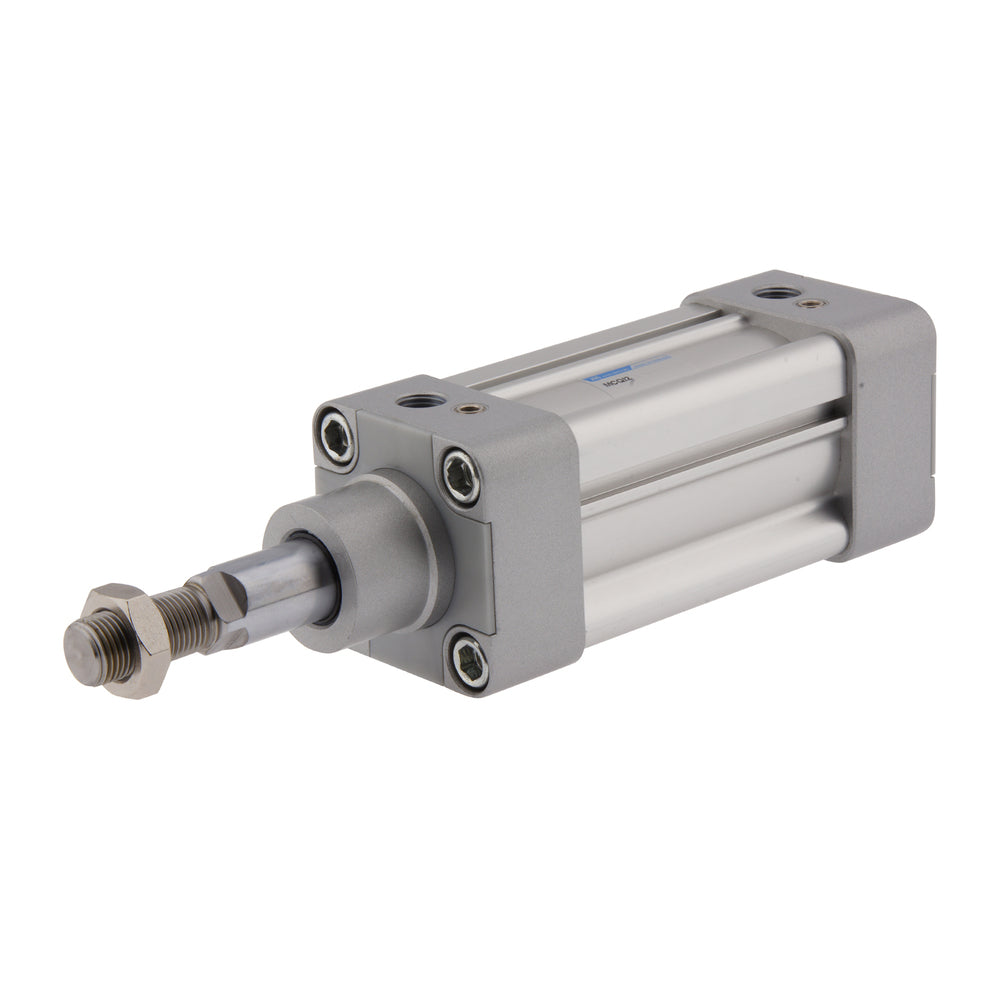

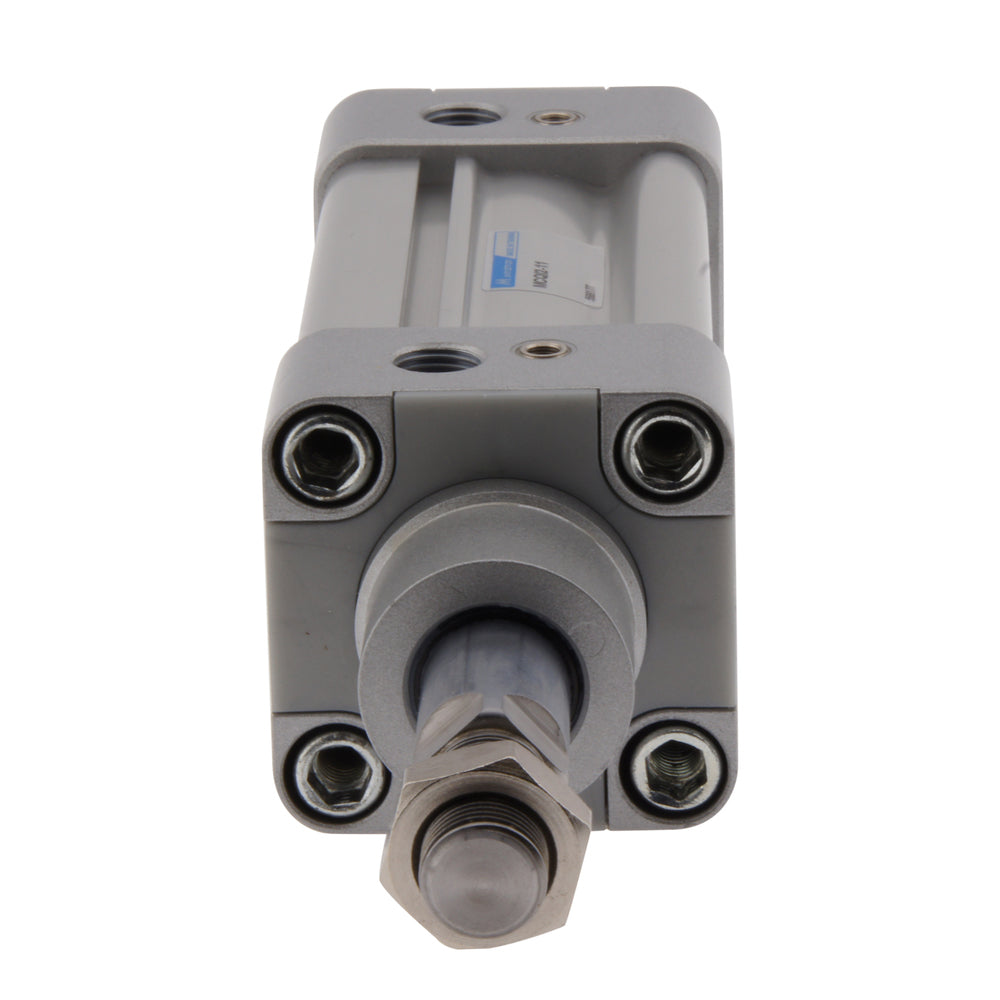

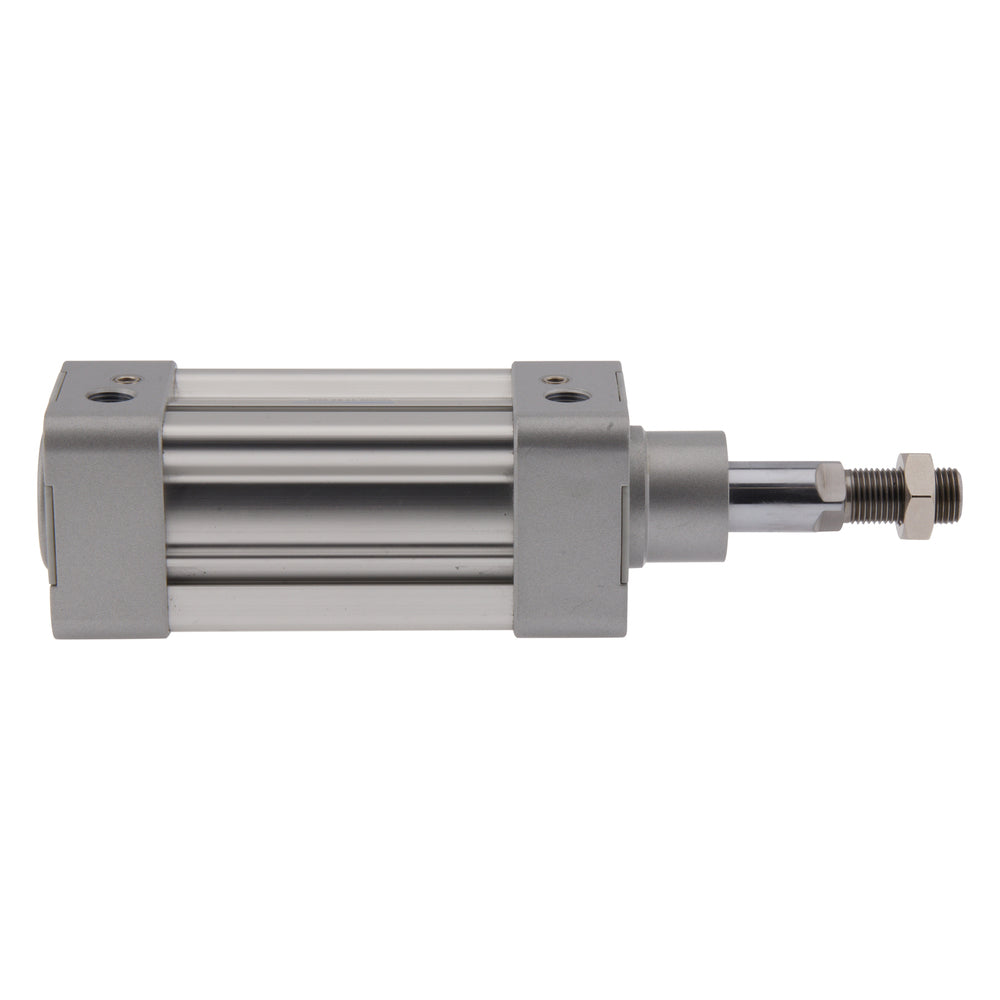

63-50mm Double Acting Cylinder Magnetic/Damping ISO-15552 MCQI2
Notice: This product is discontinued and replaced by MCQI3-11-63-50M
Double acting ISO 15552 pneumatic cylinder with a Ø63 mm bore and 50 mm stroke. It requires an operating pressure between 0.5 - 10 bar to theoretically exert a max force in of 2803 N and max force out of 3117 N. Self-lubricating, magnetic, adjustable damping, and has an end rod thread of M16×1.5. Wide range of mounting accessories available. The cylinder has an aluminum housing and comes with a NBR sealing, it is capable of operating within a temperature range of -5 to 60°C.
Notice: This product is discontinued and replaced by MCQI3-11-63-50M
Description
This pneumatic cylinder from Mindman is double acting, meaning it requires air to extend and air to retract the rod. It adheres to ISO 15552 (replaces VDMA 24562 and ISO 6431), which is a globally accepted and widely used standard. The advantage is that it enables world-wide inter-changeability with other major brands such as Festo, SMC or Norgren. The bore size is 63 mm and it has a stroke length of 50 mm. It has an operating pressure of 0.5 - 10 bar and is capable of movement speeds of 50 - 500mm/s, while theoretically capable of exerting a max force in of 2803 N and max force out of 3117 N. The piston rod is self lubricating and has a M16×1.5 thread at the end. It has a magnet mounted in the piston. This allows precise position feedback of the rod location by mounting (one or more) magnetic sensors, such as reed or hall sensors, to the grooves on the valve body. The cylinder has adjustable needle valves to adjust the damping of the end of the stroke. Pneumatic hoses can be connected to both G 3/8" air ports and the cylinder can be mounted rigid or flexible with a wide range of mounting options, such as rod swivel joint ends (ISO 8139) or rod fork ends. It has an NBR seal and an aluminum housing, making it durable and capable of operating within a temperature range of -5 to 60°C.
Pros:
- Adheres to ISO 15552 (replaces VDMA 24562 and ISO 6431), which is globally accepted and widely used making it interchangeable with other major brands.
- It is double acting, allowing for full control of the rod.
- The grooved body allows for quick and easy sensor mounting
- The rod is self lubricating, meaning no lubricators are required in the air system. It will require little maintenance and have a long service life.
- It comes with the ability to adjust the damping, or cushioning, of the end of the rod stroke This way you can achieve perfect damping for every load situation.
Cons:
- Not able to be operated in freezing environments.
MCQI2 series
The MCQI2 series adheres to ISO 15552. There are double acting and single acting versions available. The rod diameter has a range of 32-100mm and a stroke length between 25-1000mm making it capable of a wide range of applications. Other stroke lengths are available upon request. The piston is capable of movement speeds of 50-500mm/s and operating on a pressure range of 0.5-10 bars. The piston rod is threaded at the end and has a magnetic strip, which together with the grooved body allows for easy sensor mounting to detect rod positioning. With an aluminum housing and an NBR seal, the cylinder is durable and capable of operating from -5 to 60°C. Mindman is a global leader in the pneumatics industry and manufacturers a wide range of high quality pneumatic products. They follow strict manufacturing standards (ISO 9001) and verify their end products with numerous testing and calibration steps to ensure they meet specifications. You can be assured of the high quality, efficiency, life cycle and cost to performance for these pneumatic cylinders.
The MCQI2 series is compatible with the following product series: Asco G453, Aventics PRA, Festo DSBC, IMI Norgren PRA, Parker P1D, Parker P1F and the SMC CP96 series.
