Ratio Electric Desk Connection Unit - PDS6210B

Notice: This product is discontinued

Discontinued

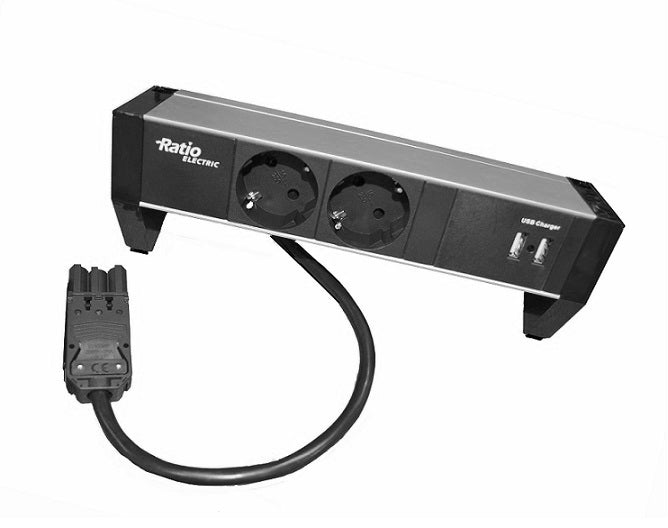

Ratio Electric Desk Connection Unit - PDS6210B
Ratio Electric Desk Connection Unit - PDS6210B
Image may vary slightly
See specifications for accurate information.
Reference: E2XUS
Brand: Ratio Electric
Mfr. Part: PDS6210B

This surface-mounted unit from Ratio Electric's Desk-Top PLUS series features two grounded outlets and two USB connections. The Desk-Top PLUS surface mount unit is designed to be placed on top of a desk and to take up little space. In addition, the Desk-Top PLUS surface mount unit is easily attached to the desktop with table clamps and can be moved without damaging the desk. The table clamps are suitable for desk tops up to a thickness of 40mm. The surface mount unit features a 60cm Prolink power connection cable.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

This surface-mounted unit from Ratio Electric's Desk-Top PLUS series features two grounded outlets and two USB connections. The Desk-Top PLUS surface mount unit is designed to be placed on top of a desk and to take up little space. In addition, the Desk-Top PLUS surface mount unit is easily attached to the desktop with table clamps and can be moved without damaging the desk. The table clamps are suitable for desk tops up to a thickness of 40mm. The surface mount unit features a 60cm Prolink power connection cable.

Downloads

Specifications

Model
Surface mounting
Folding
No
Extendable
No
Shape
Rectangular
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Color
Black
Length (mm)
238
Width (mm)
The product's width without packaging.
70.7
Height (mm)
The product's height without packaging.
78
Built-in depth (mm)
0
Diameter size (mm)
0
Number of socket outlets with protective contact (SCHUKO)
2
Number of UK BS1363 sockets
0
Number of socket outlets Swiss standard type 13
0
Number of socket outlets Swiss standard type 15
0
Number of socket outlets Swiss standard type 23
0
Number of socket outlets Swiss standard type 25
0
Number of socket outlets French standard (Type E)
0
Number of HDMI-connections
0
Number of D-Sub sockets 15-pole
0
Number of audio connections
0
Number of CAT 5E connections
0
Number of CAT 6 connections
0
Number of CAT 6A connections
0
Number of empty module positions
0
Number of miniature circuit breakers
0
Over voltage protection
No
With built-in USB power supply
No
Nominal voltage (V)
230
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Anti-bacterial treatment
No
Working temperature (°C)
0 °C to 60 °C
