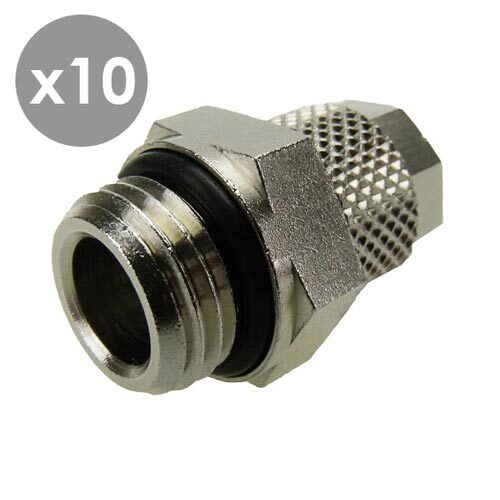

6/4mmxG1/8'' Push-on fitting, O-ring [10 pieces]
Notice: This product is discontinued
![6/4mmxG1/8'' Push-on fitting, O-ring [10 pieces]](http://tameson.co.uk/cdn/shop/files/102_inschroefkoppeling-opsteek-riko-10.ccd5f1d2_9630fb40-f19c-425a-90da-bfec09900bea.jpg?v=1729601392)
![6/4mmxG1/8'' Push-on fitting, O-ring [10 pieces]](http://tameson.co.uk/cdn/shop/files/102_inschroefkoppeling-opsteek-riko-10.ccd5f1d2_9630fb40-f19c-425a-90da-bfec09900bea.jpg?height=232&v=1729601392&width=232)
6/4mm x G1/8" Push-on fitting with O-ring (NBR) and nickel plated brass body. Suited for media from -10 to 80°C with a working pressure of 0 up to 20bar. Suitable for plastic hoses.
Value pack of 10 pieces!
Notice: This product is discontinued
Description
6/4mmxG1/8" Push-on fitting with O-ring (NBR) and brass body. Value pack of 10 pieces! Media from -10 to 80°C and an operating pressure of up to 20 bar. This coupling is suitable for plastic hoses having a 6/4mm outer diameter / inner diameter. The mounting is very simple.
Make sure the plastic hose is clean and cut straight. Slide the nut over the hose as shown in the picture (1). Next, push the hose on the fitting (2). Then tighten the nut by hand or plier (3). The hose is now connected leak-proof. The fitting can be screwed into the port of a solenoid valve. Since the coupling has an O-ring, no additional sealing material is needed, such as PTFE tape.
