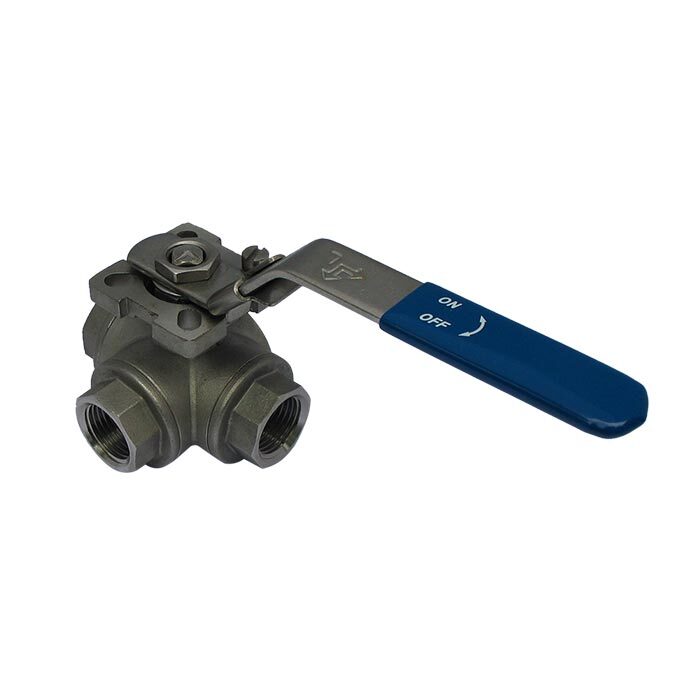

145T - G1/2'' 3-Way (T) Ball Valve Stainless Steel F/F/F ISO-Top
Notice: This product is discontinued and replaced by BL3SAT-012
3-Way ball valve T-bore with G1/2 inch threads (F/F/F) and ISO-Top (F03,F04) and lever for open/close control. 12mm nominal diameter and max pressure 63 bar. Temperature range from -50 to 250°C. Stainless steel housing with stainless steel ball and PPL seals.
Notice: This product is discontinued and replaced by BL3SAT-012
Description

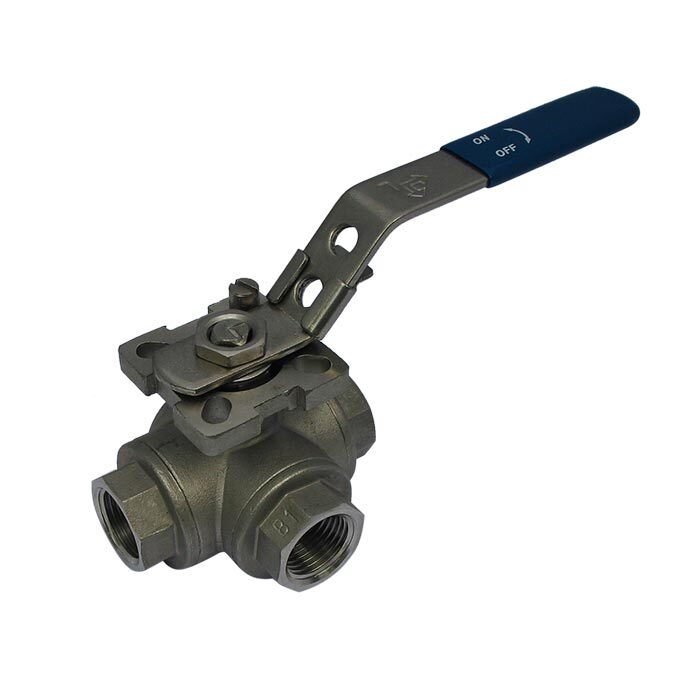

3-Way (T-bore) ball valve of stainless steel from JP Fluid Control with G1/2 inch pipe threads (BSPP) and a nominal diameter of 12mm. The valve features an ISO-Top flange and has furthermore a coated lever for manual control. The ball valves in the 145T-series of JP Fluid Control are characterized by long life.
Technical Specifications
Parameter | Value |
---|---|
Series | 145T |
Function | 3-way (T-bore) |
Diagram | The ports overlap during rotation. |
Ports | G1/2 BSP (F/F/F) |
Housing | Stainless steel (AISI 316) |
Ball | RVS (AISI 316) |
Seals | PPL (Polypropylene) |
Nominal Diameter | 12 mm |
Kv value | 4 m3/h |
Operation | Lever + ISO 5211 flange (for actuator mounting) |
ISO 5211 flange | F03 and F04 |
Max pressure | 63 bar |
Temperature | -50°C .. 250°C |
Installation
The valve has female thread on all three ports (1/2 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Maximum pressure versus temperature - 145T-series.
