Solenoid Valve G1/8'' NC Brass FKM 0-6bar/87psi 24VDC Vacuum 6011 163545

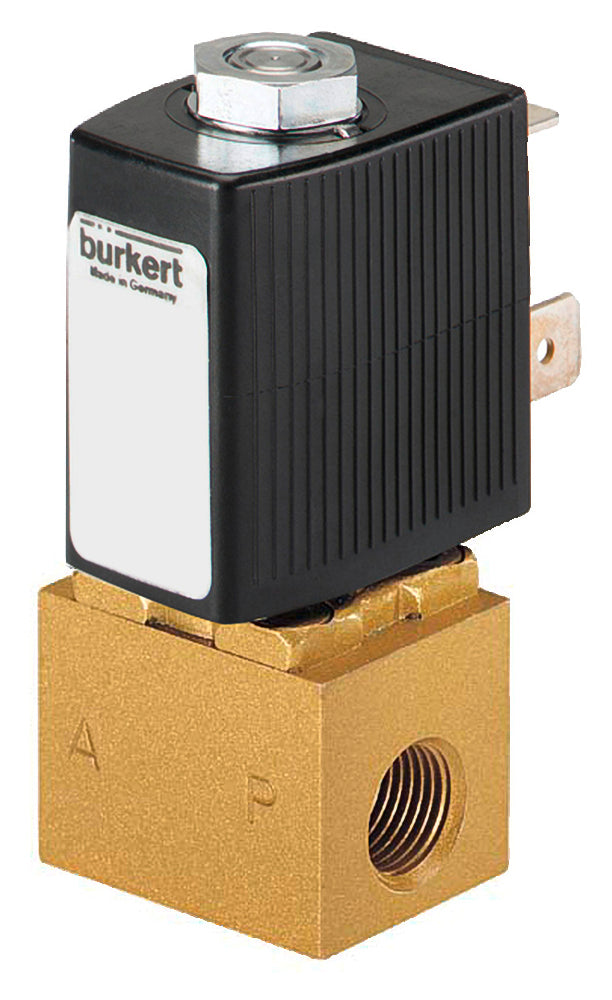

This is a Burkert direct operating 2/2 way solenoid valve with G 1/8 inch threads and a 24 V DC coil. The valve has a brass housing with FKM sealing and an orifice size of 1.6 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure range of 0 to 6 bar (87 psi) and a maximum temperature of 100 °C (212 °F). The valve has a Kv-value of 0.06 m3/h, this translates to a flow rate of 1 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0.07, which means 0.07 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The FKM (fluorine rubber or Viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Suitable for vacuum applications. The valve has an IP65 rating if properly connected. This version is labeled as an 'Analysis Version' and it is designed for extremely pure gaseous media. During the production process, all internal valve parts have been cleaned very thoroughly. This is to ensure that the media will not be contaminated under any circumstance.

Pros:

• Suitable for vacuum applications
• Good protection against the environment thanks to the IP65 rating
• Analysis version with higher purity and tightness
• Solenoid valves open and close very fast compared to many other valve types

Cons:

• Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
• The coil may get hot when energized. A well ventilated environment is recommended
• DIN connector not included

Series:

The Bürkert Type 6011 valve is a normally closed (NC) direct operated 2/2-way miniature solenoid valve. The Type 6011 valve is the smallest in the direct operated D.EV Bürkert series, with a nominal diameter range between 1 and 2.4 mm. The plunger valves of the D.EV series are designed for small flow rates and are often used in machine construction, instrument engineering and pneumatic equipment. This cost-effective valve type is designed for neutral and clean liquids, gases and vapors. A wide range of connections, including threaded connections, push-in fittings, and subbase flange, are available for the Type 6011 valve. The valve is available in brass, stainless steel and polyamide (nylon). Further options include certifications for drinking water, food, and oxygen. There are special options, such as helium leak test versions, highly sealed versions, strand versions, and free of oil, grease and silicon versions.

Please note: this product is made to order and can unfortunately not be returned.
