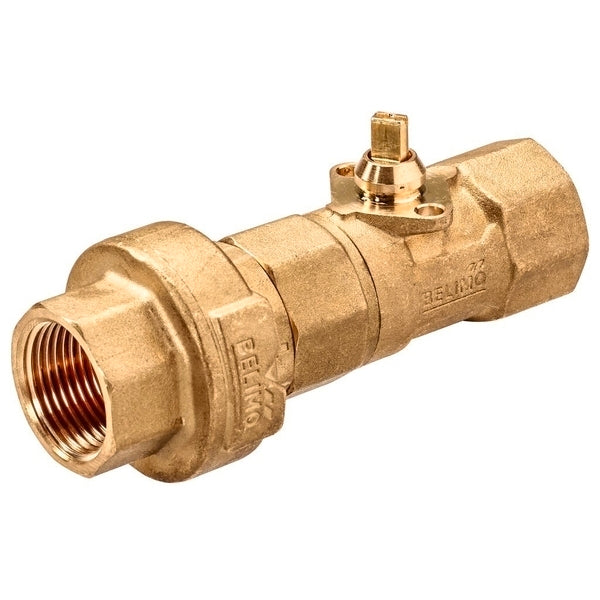

Belimo PI Flow Limiter Valve Rp1/2 Kvs0.29 C215QFL-C
This is a Belimo 2-way pressure independent flow limiter valve (PIFLV) with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The built-in flow limiter maintains a constant flow volume and steady control even with pressure variations at a 90° angle. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 60 °C (36 to 140 °F). The Kv value of the valve is 0.29 m3/h, equivalent to a Cv-value of 0.34 gpm. The valve is designed for use with the Belimo open/close actuator. The installation of Belimo ZoneTight actuators on this valve is easy - it's as simple as clicking it into place. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
- Regular price
- £55.39
Description
This is a Belimo 2-way pressure independent flow limiter valve (PIFLV) with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The built-in flow limiter maintains a constant flow volume and steady control even with pressure variations at a 90° angle. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 60 °C (36 to 140 °F). The Kv value of the valve is 0.29 m3/h, equivalent to a Cv-value of 0.34 gpm. The valve is designed for use with the Belimo open/close actuator. The installation of Belimo ZoneTight actuators on this valve is easy - it's as simple as clicking it into place. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
Pros:
- Very easy installation of Belimo ZoneTight actuators, just click and done
- No need for time-consuming manual hydronic system adjustment anymore
- Water quantity remains constant despite pressure changes
- The valve doesn't "stick" due to reliable ball valve technology
- Resistant to contamination
Series:
The Belimo PIFL series features a 2-way PI flow limiter valve with an internal thread, specifically designed for closed cold water systems. This valve series is ideal for water-side on/off control of fan coil and cooling ceilings. With its robust and straightforward functionality, it ensures reliable and efficient operation. The series aims to provide precision control and longevity, making it a suitable choice for various applications. These valves display Belimo's commitment to quality and performance, offering functionality that can adapt to diverse cooling system needs.
