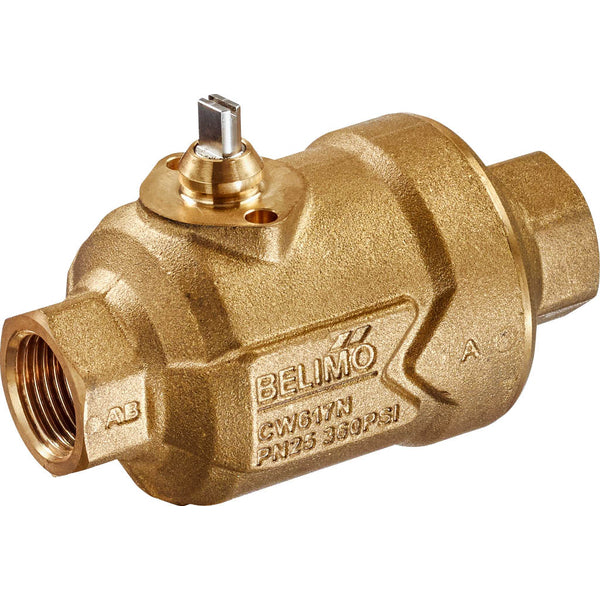

Belimo PI Zone Valve Rp1/2 Kvs0.21 C215QP-B
This is a Belimo 2-way pressure independent zone valve (PIQCV) with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The integrated pressure regulating valve enables a constant flow volume and achieves a valve authority of 1, regardless of the differential pressure. The flow rate remains constant with each opening position, even in the presence of pressure variations and in the partial load range, ensuring a steady control. Equal percentage flow control is ensured by the special design of the ball. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 0.21 m3/h, equivalent to a Cv-value of 0.24 gpm. The valve is designed for use with the Belimo 3-point or modulating actuator. The installation of Belimo ZoneTight actuators on this valve is easy - it's as simple as clicking it into place. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
- Regular price
- £114.40
Description
This is a Belimo 2-way pressure independent zone valve (PIQCV) with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The integrated pressure regulating valve enables a constant flow volume and achieves a valve authority of 1, regardless of the differential pressure. The flow rate remains constant with each opening position, even in the presence of pressure variations and in the partial load range, ensuring a steady control. Equal percentage flow control is ensured by the special design of the ball. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 0.21 m3/h, equivalent to a Cv-value of 0.24 gpm. The valve is designed for use with the Belimo 3-point or modulating actuator. The installation of Belimo ZoneTight actuators on this valve is easy - it's as simple as clicking it into place. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
Pros:
- Very easy installation of Belimo ZoneTight actuators, just click and done
- No need for time-consuming manual hydronic system adjustment anymore
- Water quantity is guaranteed even with varying pressure and partial load operation
- The desired Vmax value can be easily and quickly adjusted on the actuator using the associated clip
Series:
The Belimo PIQCV is a PI Zone Valve series that caters to 2-way internal thread applications. It is designed for closed cold and warm water systems. This series is primarily used for modulating control of air-handling and heating systems on the water side. The Belimo PIQCV series is known for its snap-assembly actuator, making installation and operations efficient. This series offers reliable performance and durability, enhancing system control and user experience.
