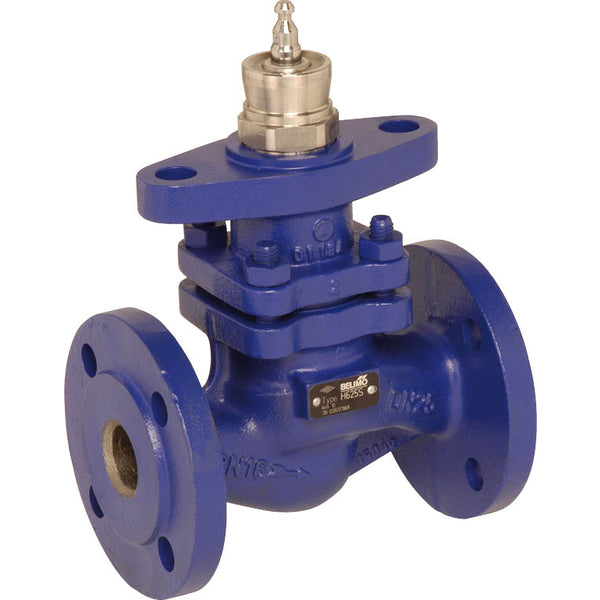

Belimo Globe Valve Flange DN40 Kvs25 Cast Iron PTFE 15mm Stroke PN16 H640S
This is a Belimo 2-way globe valve with a coated cast iron housing and TEFLON (PTFE) sealing. The bore diameter of the valve is DN 40 and the flange size is DN 40. The maximum pressure differential is 8.5 bar (123.3 psi). The valve can operate between 5 and 150 °C (41 and 59 °F). The Kv value of the valve is 25 m3/h, equivalent to a Cv-value of 29 gpm. The valve's stroke length is 15 mm. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. This valve is suited for use with the Belimo 3-point or modulating globe valve actuator. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
- Regular price
- £537.12
Description
This is a Belimo 2-way globe valve with a coated cast iron housing and TEFLON (PTFE) sealing. The bore diameter of the valve is DN 40 and the flange size is DN 40. The maximum pressure differential is 8.5 bar (123.3 psi). The valve can operate between 5 and 150 °C (41 and 59 °F). The Kv value of the valve is 25 m3/h, equivalent to a Cv-value of 29 gpm. The valve's stroke length is 15 mm. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. This valve is suited for use with the Belimo 3-point or modulating globe valve actuator. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
Pros:
- Equal percentage flow characteristic, the bypass has a linear characteristic
Series:
The Belimo H2-S/H4-B series is specifically designed for use in open and closed cold and warm water systems. It offers modulating control for air-handling and heating systems on the water side. This series supports a range of sizes from DN15-50. Belimo H2-S/H4-B is a reliable choice for efficient control in various water systems. Its versatility allows it to cater to different needs, making it a dependable solution for maintaining optimal system performance. This series continues Belimo's tradition of quality and innovation.
