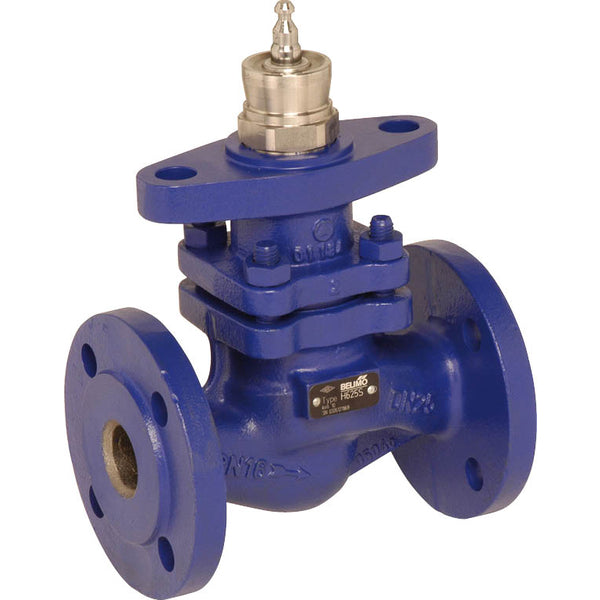

Belimo Globe Valve Flange DN50 Kvs40 Cast Iron PTFE 15mm Stroke PN16 H650SP
This is a Belimo 2-way globe valve with a coated cast iron housing and TEFLON (PTFE) sealing. The bore diameter of the valve is DN 50 and the flange size is DN 50. The maximum pressure differential is 10 bar (145 psi). The valve can operate between 5 and 150 °C (41 and 59 °F). The Kv value of the valve is 40 m3/h, equivalent to a Cv-value of 46 gpm. The valve's stroke length is 15 mm. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. This valve is suited for use with the Belimo 3-point or modulating globe valve actuator. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve. The partial pressure relief stem and overflow channels enable this valve to handle high close-off pressures.
- Regular price
- £1,847.08
Description
This is a Belimo 2-way globe valve with a coated cast iron housing and TEFLON (PTFE) sealing. The bore diameter of the valve is DN 50 and the flange size is DN 50. The maximum pressure differential is 10 bar (145 psi). The valve can operate between 5 and 150 °C (41 and 59 °F). The Kv value of the valve is 40 m3/h, equivalent to a Cv-value of 46 gpm. The valve's stroke length is 15 mm. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. This valve is suited for use with the Belimo 3-point or modulating globe valve actuator. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve. The partial pressure relief stem and overflow channels enable this valve to handle high close-off pressures.
Pros:
- Equal percentage flow characteristic, the bypass has a linear characteristic
Series:
The Belimo H2-S/H4-B series is specifically designed for use in open and closed cold and warm water systems. It offers modulating control for air-handling and heating systems on the water side. This series supports a range of sizes from DN15-50. Belimo H2-S/H4-B is a reliable choice for efficient control in various water systems. Its versatility allows it to cater to different needs, making it a dependable solution for maintaining optimal system performance. This series continues Belimo's tradition of quality and innovation.
