Belimo Sensor Controlled PI-CCV DN15 Flange0 Kvs162 24VAC/DC Fail-Safe MP-Bus EP150F+KMP

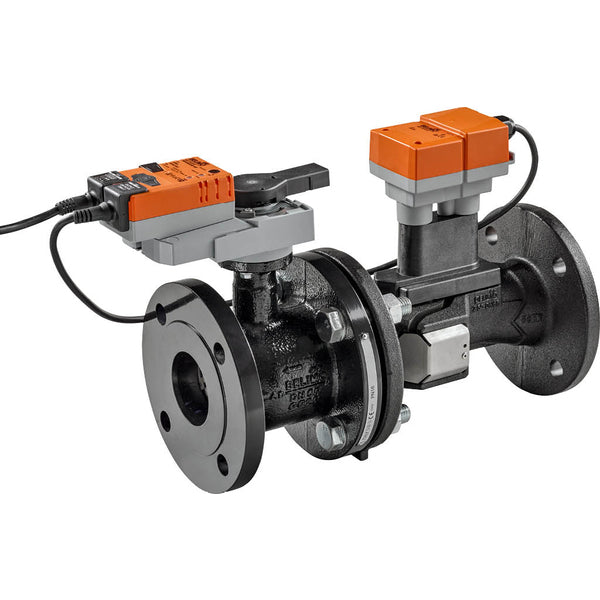

This Belimo Energy Valve consists of a 2-way characterized control valve, a volumetric flow meter, temperature sensors and an actuator. The valve is made of cast iron and has EPDM sealing. The bore diameter of the valve is DN 150 and the flange size is DN 150. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 162 m3/h, equivalent to a Cv-value of 187.43 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports MP-Bus communication protocols and provides precise position feedback in the range of 0-10 V or 2-10 V DC, ensuring accurate and responsive control in various applications. The rotary knob allows you to set the fail-safe position between 0% and 100% in 10% increments. It controls the angle of rotation. If there's a power failure, the actuator will move to the chosen fail-safe position. The actuator has an IP54 protection rating. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
- Regular price
- £7,892.59
Description
This Belimo Energy Valve consists of a 2-way characterized control valve, a volumetric flow meter, temperature sensors and an actuator. The valve is made of cast iron and has EPDM sealing. The bore diameter of the valve is DN 150 and the flange size is DN 150. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 162 m3/h, equivalent to a Cv-value of 187.43 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports MP-Bus communication protocols and provides precise position feedback in the range of 0-10 V or 2-10 V DC, ensuring accurate and responsive control in various applications. The rotary knob allows you to set the fail-safe position between 0% and 100% in 10% increments. It controls the angle of rotation. If there's a power failure, the actuator will move to the chosen fail-safe position. The actuator has an IP54 protection rating. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
Pros:
- The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
- The actuator is equipped with a fail-safe feature
- Modulating actuator with a control signal of 0-10 V or 2-10 V DC
- Integrated thermal energy meter for monitoring energy consumption
Series:
The Belimo EP-F-KMP series consists of characterised control valves featuring sensor-operated flow control with fail-safe. These 2-way, flange, PN 16 valves have a nominal voltage of AC/DC 24 V and offer modulating, communicative control. They are designed for closed cold and warm water systems and for modulating control of air-handling and heating systems on the water side. Communication is via Belimo MP-Bus or conventional control. The series can convert active sensor signals and switching contacts. Sizes range from DN65-100.
