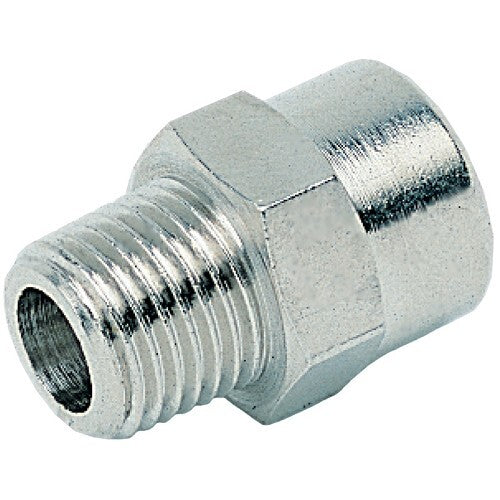

R1/8'' (M) x G1/4'' (F) adapter fitting

Notice: This product is discontinued

Discontinued
R1/8'' (M) x G1/4'' (F) adapter fitting
R1/8'' (M) x G1/4'' (F) adapter fitting
Image may vary slightly
See specifications for accurate information.
Reference: 20403
Brand: Tameson

R1/8"(M) x G1/4"(F) Adapter fitting with tapered threads, nickel-plated brass. Maximum operating pressure 16 bar.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

R1/8"(M) x G1/4"(F) adapter fitting with tapered threads, nickel-plated brass. Maximum operating pressure 16 bar.

Downloads

Specifications

Thread
1/4 inch
Thread (smaller)
1/8 inch
Connection type
Outer thread conical BSPT-R, Inner thread cylindrical BSPP-G
Material
Housing material.
Brass
Min pressure (bar)
0
Min pressure difference (bar)
Minimum required differential pressure for proper operation.
0
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Model
1-part
Bend radius (mm)
0
Material connection 1
Brass
Surface protection connection 1
Nickel-plated
Material connection 2
Brass
Surface protection connection 2
Nickel-plated
Shape
Straight
With drain
No
