Solenoid Valve 32x32mm SFB Flange NC Brass FKM -1-2bar/-15-29psi 24VDC 2873 234304

Solenoid Valve 32x32mm SFB Flange NC Brass FKM -1-2bar/-15-29psi 24VDC 2873 234304
Reference: 234304
Brand: Burkert

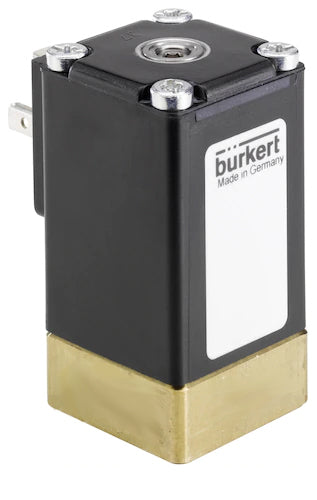

Burkert 2/2 way solenoid valve (type 2873) with 32x32 mm SFB flange and a 24 V DC coil. The circuit function of the solenoid valve is normally closed (voltage = open). The valve is direct operating, so no differential pressure required. Suitable for max media temperatures of 90 °C (194 °F) and a pressure range of -1 to 2 bar (-15 to 29 psi). Housing of brass with FKM sealing and a 4 mm orifice. The Kv-value is 0.32 m3/h (5.33 l/min at dp = 1 bar water).
Note: DIN connector not included.

View all
Note: product cannot be returned
Regular price
£153.62
excl VAT

In stock +17 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 17 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 19 - 21 business days

Description
Specifications
Downloads
Related products

This is a Burkert direct operating 2/2 way solenoid valve with 32x32 mm SFB flange and a 24 V DC coil. The valve has a brass housing with FKM sealing and an orifice size of 4 mm. SFB is a Burkert specific flange design that enables compact mounting of multiple valves on a manifold. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure range of -1 to 2 bar (-15 to 29 psi) and a maximum temperature of 90 °C (194 °F). The valve has a Kv-value of 0.32 m3/h, this translates to a flow rate of 5 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0.37, which means 0.37 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The FKM (fluorine rubber or Viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve has an IP65 rating if properly connected.

Pros:

  • Good protection against the environment thanks to the IP65 rating
  • Solenoid valves open and close very fast compared to many other valve types
  • Compact valve design
  • Response time less than 20 ms
  • SFB flange design enables compact mounting of multiple valves on a manifold

Cons:

  • Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
  • The coil may get hot when energized. A well ventilated environment is recommended
  • DIN connector not included

Series:

The Bürkert 2873 is a direct-operated plunger solenoid valve and is primarily used for applications where flow rate control is necessary (proportional control). Depending on the model, the valve works from 0 up to 16 bar and has a 1/8 inch or 1/4 inch port size with BSPP or NPT thread or can be mounted on sub-base flange. The orifice sizes ranging from 0.8 to 6 mm. The flow can be controlled using a digital controller (for example the Bürkert 8605 or 8611 types). Please note that the correct sizing of the valve (Kv) is critical in flow control setups. For smaller flow rates, type 2871 provides a solution. For larger flow rates, please consider 2875. For advice on which valve to choose and if the 2873 valve is right for you, please read our article about proportional solenoid valves or contact our technical support.

Please note: this product is made to order and can unfortunately not be returned.
