G1/8'' Brass 230VAC Drinking Water Solenoid Valve 6011 243014
Notice: This product is discontinued

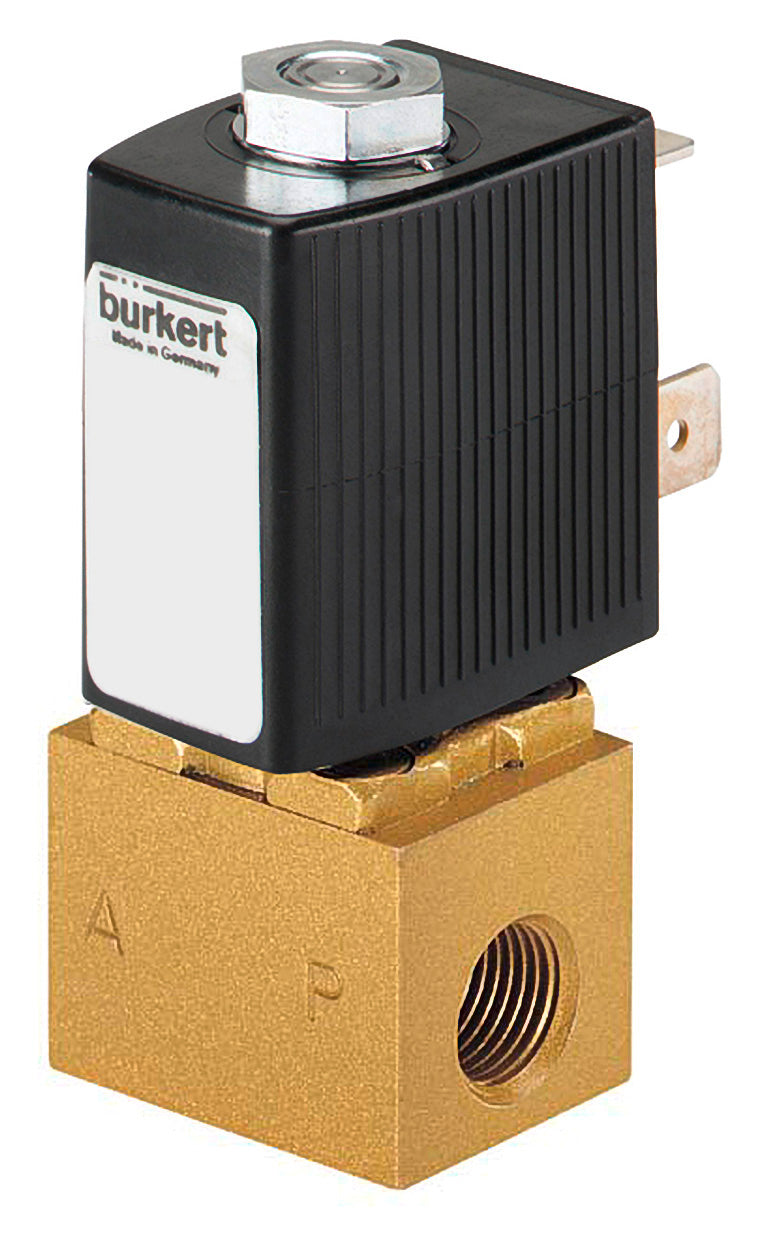

Bürkert 2/2-way solenoid valve (type 6011) with G1/8'' threads and a 230V AC coil. Normally closed (voltage = open) and direct operating, so no differential pressure required. Housing of brass with EPDM sealing and a 1.6 mm orifice. Suitable for drinking water.
Notice: This product is discontinued
Description
Bürkert direct operating 2/2-way solenoid valve with G1/8'' inner threads and 230V AC (alternating current) coil. The valve has a brass housing with EPDM sealing and an orifice size of 1.6 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle. Satisfies all European drinking water requirements.
Important advantages
- This valve satisfies all European drinking water requirements
- Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
- Very compact design
- Bürkert design: proven reliability & durability
6011 series
The Bürkert Type 6011 valve is a normally closed (NC) direct operated 2/2-way miniature solenoid valve. It is the smallest type of the direct operated D.EV Bürkert series with a nominal diameter range between 1 and 2.4 mm. The plunger valves of the D.EV series are designed for small flow rates and are often used in machine construction, instrument engineering and pneumatic equipment. This cost-effective valve type is designed for neutral and clean liquids, gases and vapors. It is available with a wide range of connections, such as threaded connections, push-in fittings or a subbase flange. The valve is available in brass, stainless steel and polyamide (nylon). The possibilities are increased further with a range of certifications for drinking water, food and oxygen. There are special options, such as helium leak test versions, highly sealed versions, strand versions, and free of oil, grease and silicon versions.
Please note: this product is made to order and can therefore unfortunately not be returned.
