G1-1/4'' Brass 24VAC Drinking Water Solenoid Valve 6213 246315

Notice: This product is discontinued

Discontinued
G1-1/4'' Brass 24VAC Drinking Water Solenoid Valve 6213 246315
G1-1/4'' Brass 24VAC Drinking Water Solenoid Valve 6213 246315
Reference: 246315
Brand: Burkert

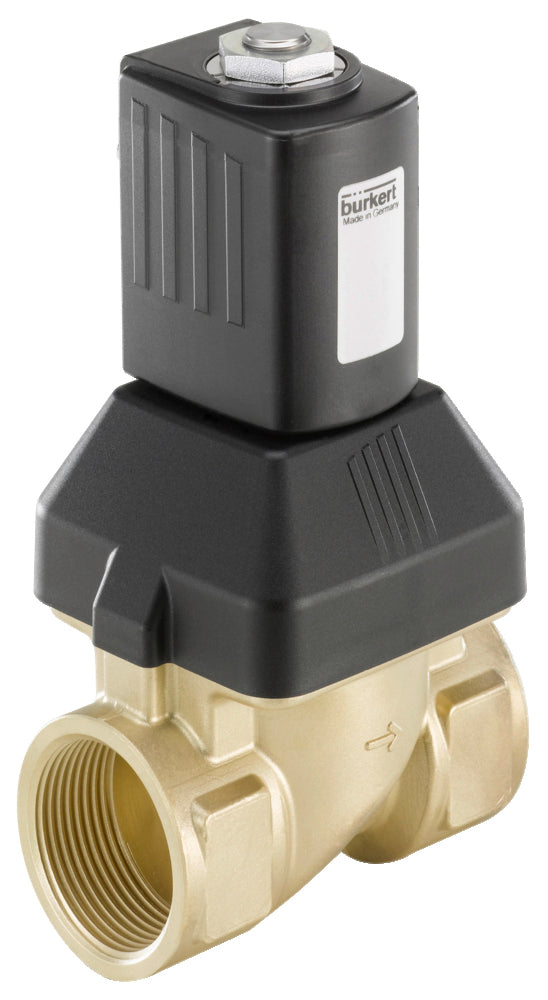

Bürkert 2/2-way solenoid valve (type 6213) with G1-1/4'' threads and a 24V AC coil. Normally closed (voltage = open) and semi-direct operating, so no differential pressure required. Housing of brass with EPDM sealing and a 25 mm orifice. Low risk of water hammer thanks to dampened closing. Suitable for drinking water.


View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Bürkert semi-direct operating 2/2-way solenoid valve with G1-1/4'' inner threads and 24V AC (alternating current) coil. The valve has a brass housing with EPDM sealing and an orifice size of 25 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve's design prevents water hammering. It is suitable for media with a high temperature (> 120°C). Satisfies all European drinking water requirements.

Important advantages

  • This valve satisfies all European drinking water requirements
  • Suitable for media with a high temperature (> 120°C)
  • The risk of water hammer is low, thanks to the dampened closing
  • The 6213 valve combines high flow capacity with the ability to operate with low pressure differentials
  • Bürkert design: proven reliability & durability

6213 series

The Bürkert 6213 valve is a semi-direct operated valve. The plunger of the solenoid is coupled to the rubber membrane via a spring. The valve opens from zero bar, but only opens fully when a minimal pressure differential is present. Orifices up DN 40 and port sizes up to 2 inch are available. All 6213 valves satisfy protection class IP65 and it's housing has a damped design for quiet closing. The standard brass housing satisfies all European drinking water requirements. A special version (HP00) which opens the valve without differential pressure is available for gas and vacuum applications. For reduced energy requirement, all coils can be delivered with electronic power reduction.

Please note: this product is made to order and can therefore unfortunately not be returned.

Downloads

Manual Burkert 6213 (EN)
pdf
Download

Specifications

Connection size
Choose a connection size that matches the size of the pipe or hose it will be connected to. Alternatively, you can size the valve based on the Kv value for more accuracy.
1 1/4 inch
Connection type
Type of connection used for the valve ports.
Inner thread cylindrical BSPP-G
Function
The circuit function of a solenoid valve specifies how fluid will flow between the valve's ports when it is energized or de-energized.
Normally closed
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
24 V AC
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Brass
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
EPDM
Operation
The operating principle of the solenoid valve.
Semi-direct
Recommended for
Type of fluid or gas that the valve is recommended for.
Water and steam, Alcohols
Min pressure difference (bar)
Minimum pressure difference required for the valve to operate effectively. If the pressure difference is lower, the valve might not operate properly.
0
Max pressure (bar)
Maximum pressure difference between the inlet and outlet port.
10
Features
Choose any special solenoid valve features that are important for your application.
Anti-waterhammer
Approval
Certifications or approvals indicating safety, quality, or performance standards met.
Drinking water
Valve bore (mm)
The valve bore is the diameter of the orifice, which the media flows through. It has a high impact on the flow rate.
25
Electrical connection
Type of electrical connection used to connect a power supply to the valve.
DIN-A
Nominal power (VA)
Rated power consumption of the valve.
16
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
2/2 way
Model
Choose a model.
Straight
Voltage-type
The type of voltage required for the solenoid valve to operate correctly. Common options include AC or DC voltage.
AC
Peak power (VA)
The maximum amount of electric power that the solenoid valve coil can safely handle without overheating or failing.
16
Indirect effect
No
Explosion safety
None
