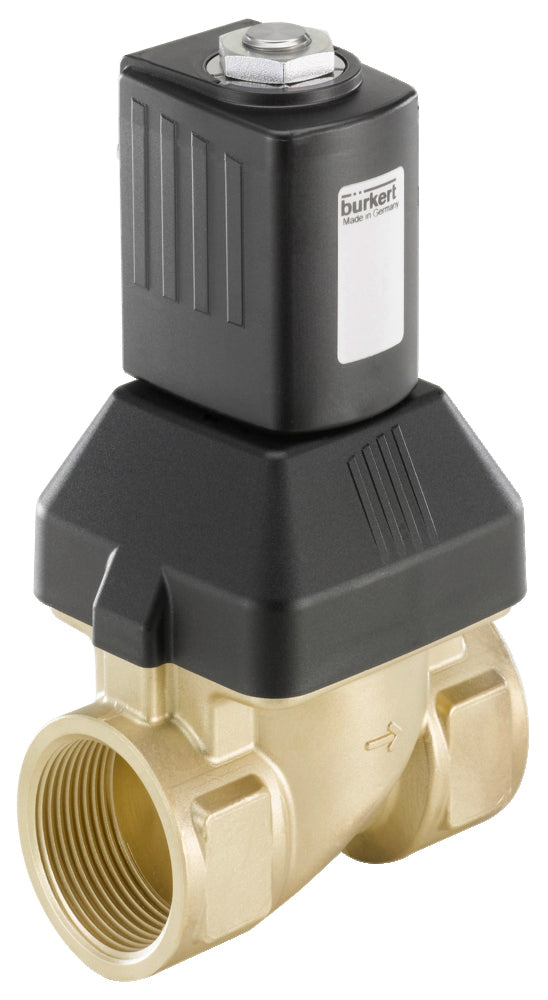

G1'' Brass 230VAC Drinking Water Fat/Oil Free Solenoid Valve 6213 248998

Bürkert semi-direct operating 2/2-way solenoid valve with G1'' inner threads and 230V AC (alternating current) coil. The valve has a brass housing with EPDM sealing and an orifice size of 25 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. Suitable for systems with a differential pressure of 0-10 bar and a maximum temperature of 100°C. The valve has a Kv-value of 11 m3/h, this translates to a flow rate of 183.33 l/min at the differential pressure of 1 bar (for water). The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve's design prevents water hammering. Satisfies all European drinking water requirements. The valve has an IP65 rating if properly connected. Suitable for cold media with temperatures from -30°C.

Important advantages

• This valve satisfies all European drinking water requirements
• Oil and fat free, so the valve does not contaminate the medium
• The risk of water hammer is low, thanks to the dampened closing
• Good protection against the environment thanks to the IP65 rating
• The 6213 valve combines high flow capacity with the ability to operate with low pressure differentials
• Bürkert design: proven reliability & durability

6213 series

The Bürkert 6213 valve is a semi-direct operated valve. The plunger of the solenoid is coupled to the rubber membrane via a spring. The valve opens from zero bar, but only opens fully when a minimal pressure differential is present. Orifices up DN 40 and port sizes up to 2 inch are available. All 6213 valves satisfy protection class IP65 and it's housing has a damped design for quiet closing. The standard brass housing satisfies all European drinking water requirements. A special version (HP00) which opens the valve without differential pressure is available for gas and vacuum applications. For reduced energy requirement, all coils can be delivered with electronic power reduction.

Please note: this product is made to order and can therefore unfortunately not be returned.
