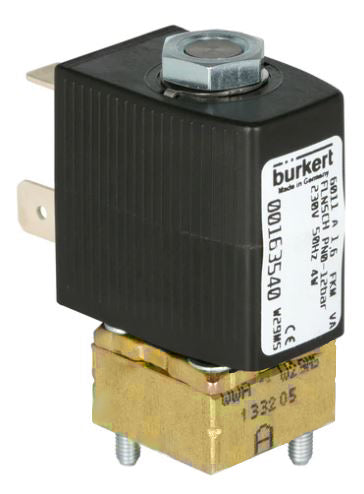

SFB Brass 24VDC Solenoid Valve Burkert 6011 299964
Notice: This product is discontinued
Bürkert 2/2-way solenoid valve (type 6011) with 20x20 mm SFB flange and a 24V DC coil. Normally closed (voltage = open) and direct operating, so no differential pressure required. For media with max 100°C at a differential pressure of 0-12 bar. Housing of brass with EPDM sealing and a 1.2 mm orifice. The Kv-value is 0.045 m3/h (0.75 l/min at dp=1 bar water).
Notice: This product is discontinued
Description
Bürkert direct operating 2/2-way solenoid valve with 20x20 mm Bürkert SFB flange and 24V DC (direct current) coil. The valve has a brass housing with EPDM sealing and an orifice size of 1.2 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. Suitable for systems with a differential pressure of 0-12 bar and a maximum temperature of 100°C. The valve has a Kv-value of 0.045 m3/h, this translates to a flow rate of 0.75 l/min at the differential pressure of 1 bar (for water). The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle. The valve has an IP65 rating if properly connected. Suitable for cold media with temperatures from -30°C.
Important advantages
- Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
- Good protection against the environment thanks to the IP65 rating
- Very compact design
- Bürkert design: proven reliability & durability
6011 series
The Bürkert Type 6011 valve is a normally closed (NC) direct operated 2/2-way miniature solenoid valve. It is the smallest type of the direct operated D.EV Bürkert series with a nominal diameter range between 1 and 2.4 mm. The plunger valves of the D.EV series are designed for small flow rates and are often used in machine construction, instrument engineering and pneumatic equipment. This cost-effective valve type is designed for neutral and clean liquids, gases and vapors. It is available with a wide range of connections, such as threaded connections, push-in fittings or a subbase flange. The valve is available in brass, stainless steel and polyamide (nylon). The possibilities are increased further with a range of certifications for drinking water, food and oxygen. There are special options, such as helium leak test versions, highly sealed versions, strand versions, and free of oil, grease and silicon versions.
Please note: this product is made to order and can therefore unfortunately not be returned.
