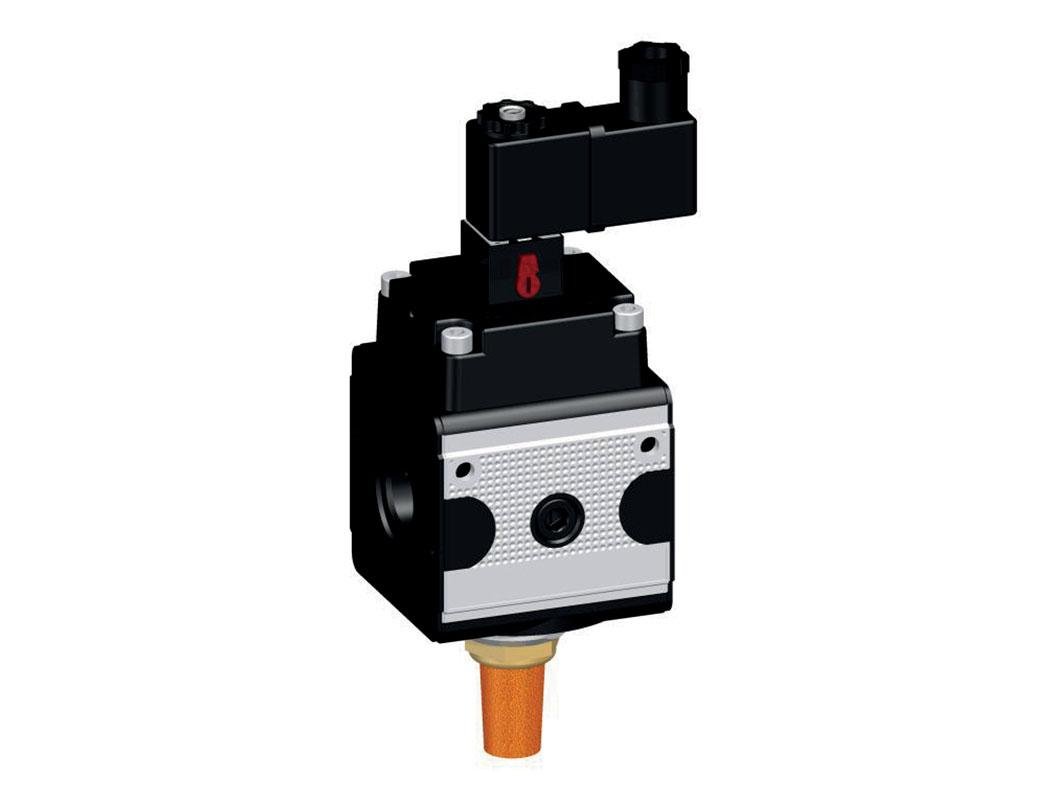

3/2 Valve G1/2 24VAC 4000 l/min Multifix 2
This 3/2-way solenoid actuated valve is used for pressurizing and exhausting pneumatic system. It can be used independently or in conjunction with an FRL. Shut off valves make servicing easier by depressurizing only specific parts of the system. The valve has G 1/2 inch ports and the maximum flow rate is 4000 l/min. The coil voltage is 24 V AC and nominal power 5 VA. The input pressure range is from 2 to 10 bar (29.0 to 145.0 psi). The threaded connection with the silencer allows for a ducted exhaust.
- Regular price
- £109.20
Description
This 3/2-way solenoid actuated valve is used for pressurizing and exhausting pneumatic system. It can be used independently or in conjunction with an FRL. Shut off valves make servicing easier by depressurizing only specific parts of the system. The valve has G 1/2 inch ports and the maximum flow rate is 4000 l/min. The coil voltage is 24 V AC and nominal power 5 VA. The input pressure range is from 2 to 10 bar (29.0 to 145.0 psi). The threaded connection with the silencer allows for a ducted exhaust.
