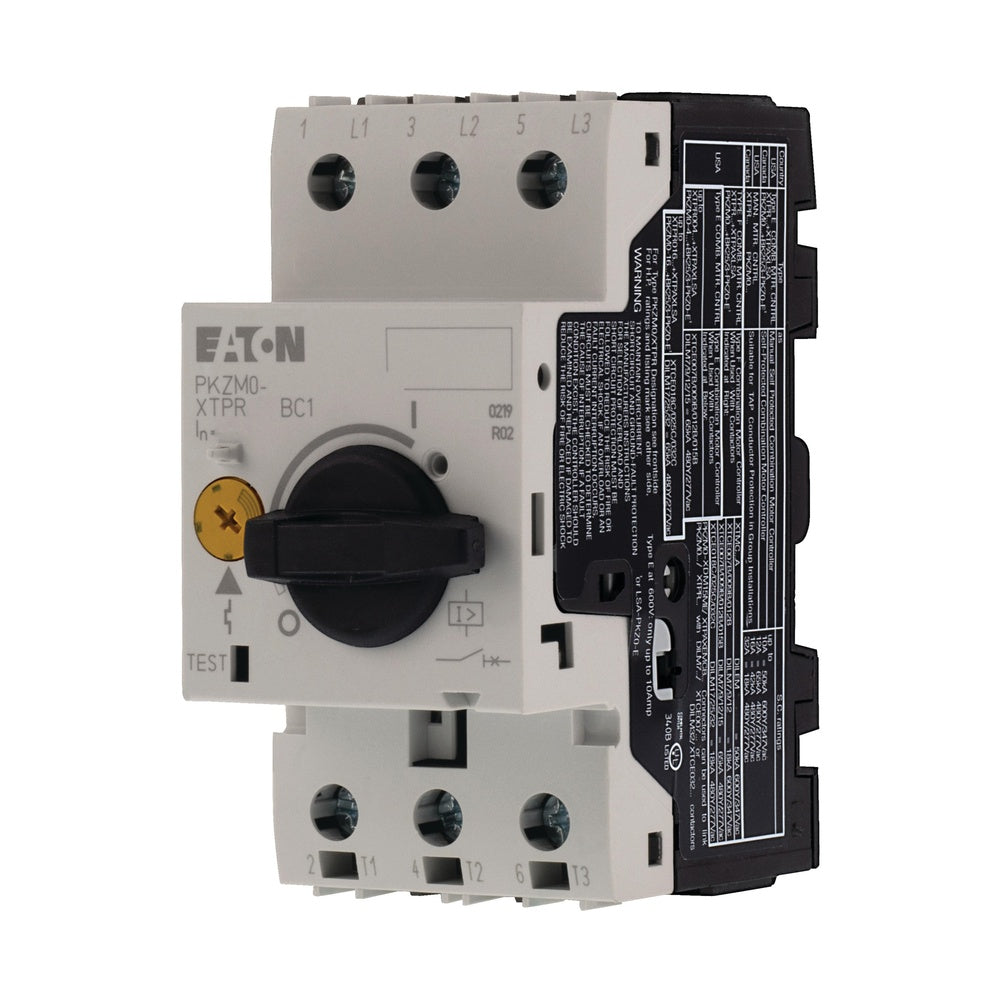

3 Pole Transformer Circuit Breaker 16-20A PKZM0 - 088918
Notice: This product is discontinued
IEC/EN60947-compliant transformer circuit breaker featuring 3-pole PKZM0 design with adjustable overload and non-delayed short-circuit protection. Offers phase failure sensitivity, 690V rated operating voltage, and IP20 protection rating. Features screw terminals, 45mm cap installation dimension, and finger-proof design per VDE 0106 T.100. Compatible with auxiliary contact and voltage release accessories.
Notice: This product is discontinued
Description
IEC/EN60947-compliant transformer circuit breaker featuring 3-pole PKZM0 design with adjustable overload and non-delayed short-circuit protection. Offers phase failure sensitivity, 690V rated operating voltage, and IP20 protection rating. Features screw terminals, 45mm cap installation dimension, and finger-proof design per VDE 0106 T.100. Compatible with auxiliary contact and voltage release accessories.
Pros:
- Adjustable overload protection 16-20A range
- Phase failure sensitive for enhanced safety
- High operating voltage rating of 690V
- Compatible with auxiliary contacts and voltage releases
