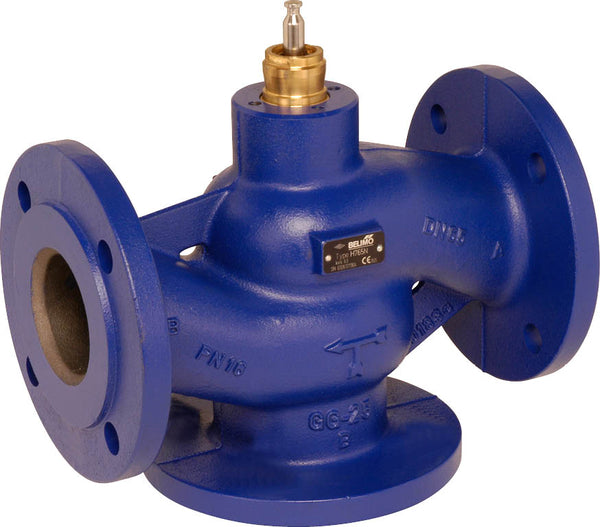

Belimo 3-Way Globe Valve Flange DN65 Kvs63 Cast Iron EPDM PN16 H765N
This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 65 and the flange size is DN 65. The maximum pressure differential is 4 bar (58 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 63 m3/h, equivalent to a Cv-value of 73 gpm. The valve's stroke length is 30 mm. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. This valve is suited for use with the Belimo 3-point or modulating globe valve actuator. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
- Regular price
- £877.13
Description
This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 65 and the flange size is DN 65. The maximum pressure differential is 4 bar (58 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 63 m3/h, equivalent to a Cv-value of 73 gpm. The valve's stroke length is 30 mm. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. This valve is suited for use with the Belimo 3-point or modulating globe valve actuator. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
Pros:
- Equal percentage flow characteristic, the bypass has a linear characteristic
Series:
The Belimo H2-S/H4-B series is specifically designed for use in open and closed cold and warm water systems. It offers modulating control for air-handling and heating systems on the water side. This series supports a range of sizes from DN15-50. Belimo H2-S/H4-B is a reliable choice for efficient control in various water systems. Its versatility allows it to cater to different needs, making it a dependable solution for maintaining optimal system performance. This series continues Belimo's tradition of quality and innovation.
