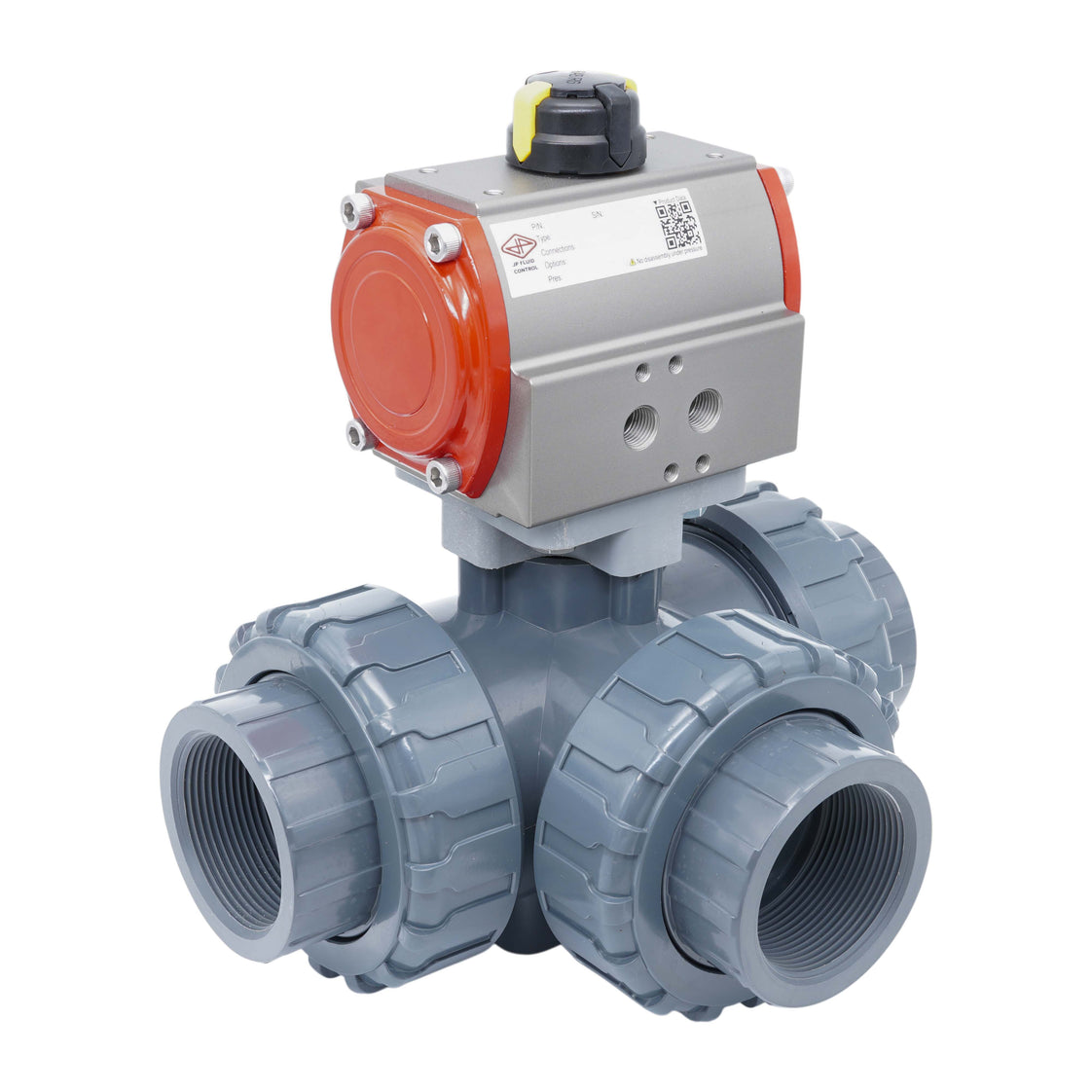

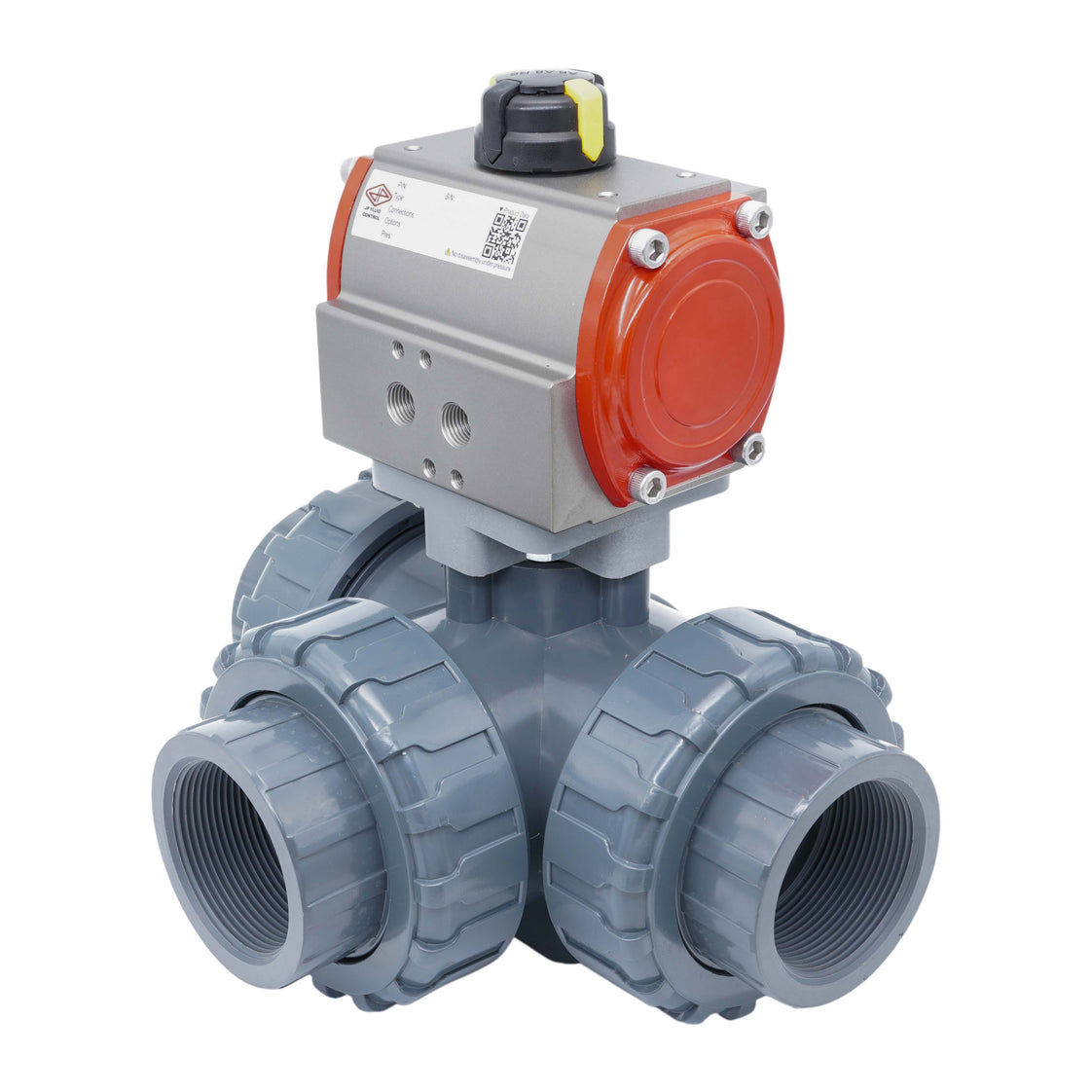

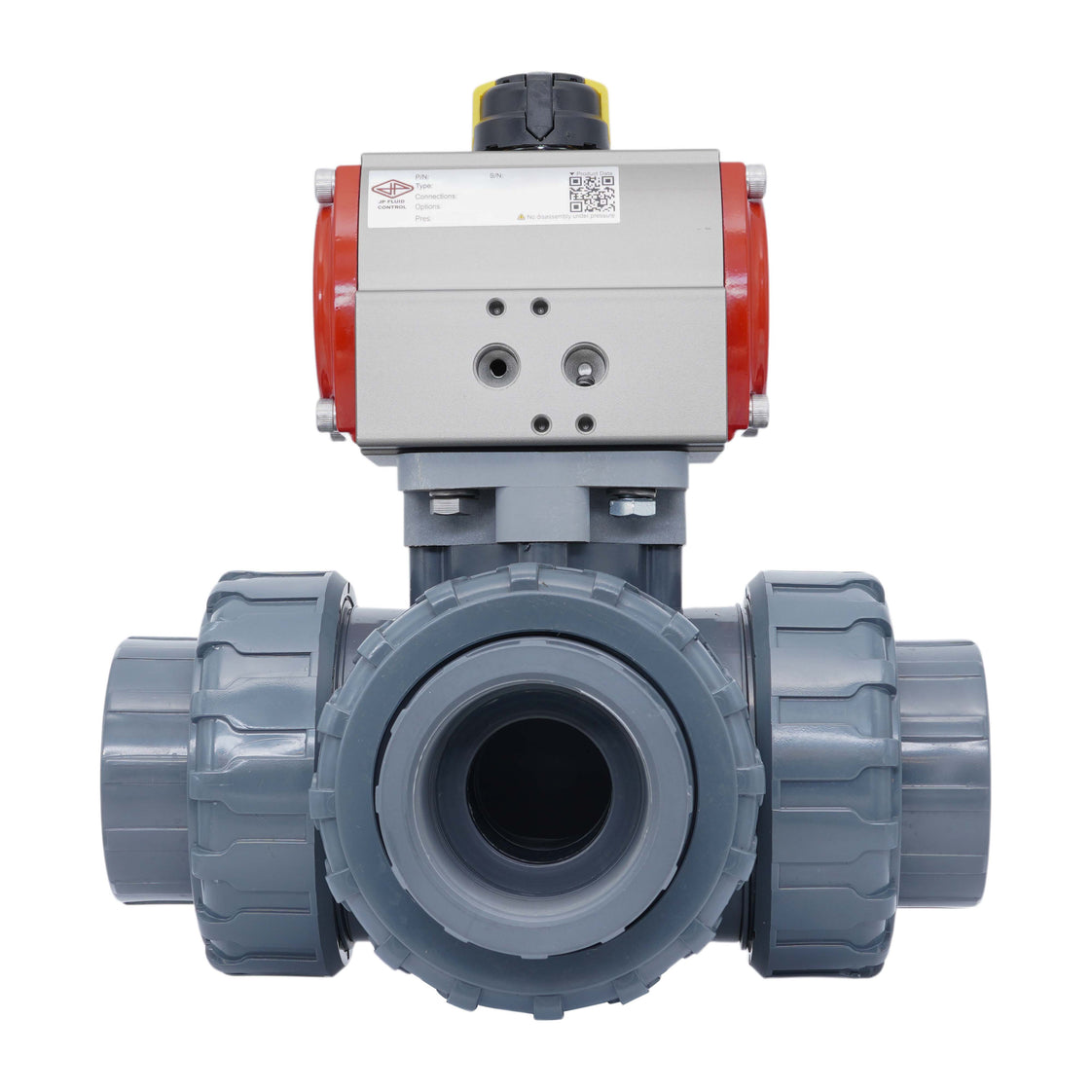

3-Way Pneumatic Ball Valve 50 mm L-bore PVC Double Acting
This 3-way ball valve is pneumatically actuated, featuring a 40 mm bore size and 50 mm glued sleeves. It is suitable for medium temperatures from -20 to 80°C (-4 to 176°F) and pressures up to 10 bar (145 psi).
The pneumatic input range is 3–8 bar (43–116 psi). The valve body is made of PVC with a PTFE seal
The actuator features a robust, double-acting rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. It is compatible with ISO 5211 F05/F07 valves and includes BSPP air ports for air supply and return. Additionally, it features a Namur 1/4 inch interface for solenoid valves and an 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes. Comes unassembled, including ball valve (BL3PAL-P-050), actuator (V3JKR/PR05D), and mounting accessories.
- Regular price
- £430.54
Description
This 3-way ball valve is pneumatically actuated, featuring a 40 mm bore size and 50 mm glued sleeves. It is suitable for medium temperatures from -20 to 80°C (-4 to 176°F) and pressures up to 10 bar (145 psi).
The pneumatic input range is 3–8 bar (43–116 psi). The valve body is made of PVC with a PTFE seal
The actuator features a robust, double-acting rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. It is compatible with ISO 5211 F05/F07 valves and includes BSPP air ports for air supply and return. Additionally, it features a Namur 1/4 inch interface for solenoid valves and an 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes. Comes unassembled, including ball valve (BL3PAL-P-050), actuator (V3JKR/PR05D), and mounting accessories.
Pros:
- Direct mounting of 1/4 Namur solenoid valve possible
- Can be equipped with a limit switch box (VDI/VDE 3845 80 x 30)
- Fast opening/closing
- Clear mechanical indicator on top shows the valve position
- Guaranteed 500,000+ cycles for the pneumatic actuator
Cons:
- No ATEX or SIL certificate
