1/4'' NPT Stainless Steel 24VUC Solenoid Valve 6013 302576
Notice: This product is discontinued

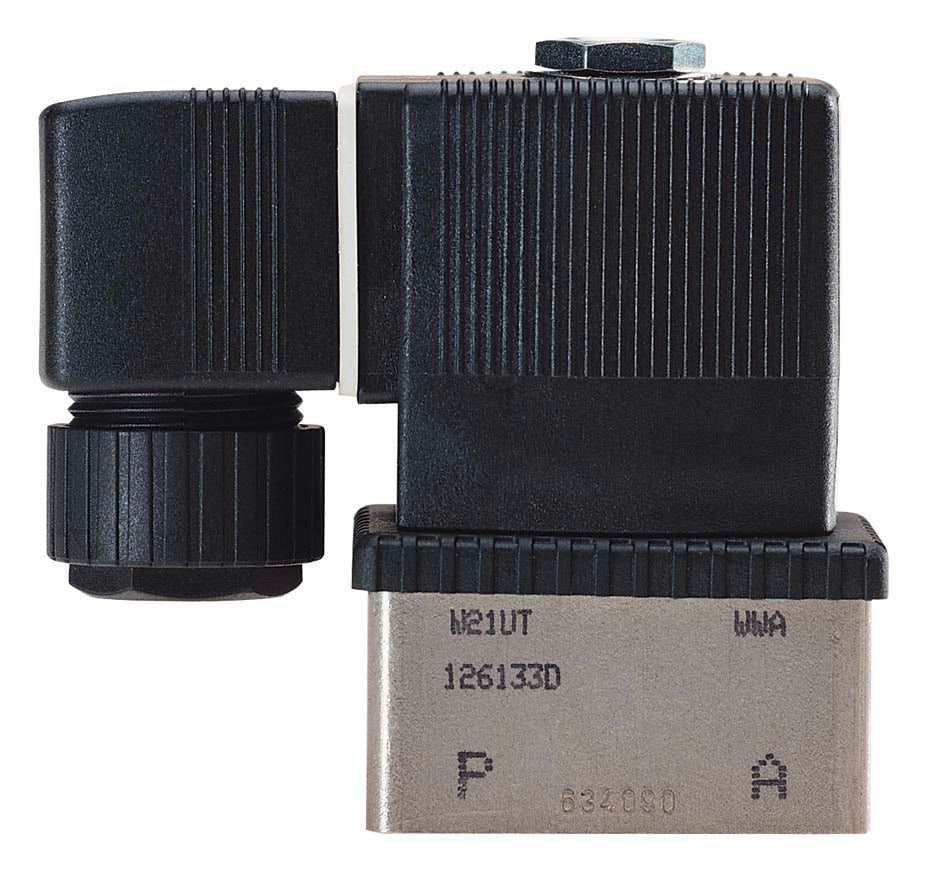

Bürkert 2/2-way solenoid valve (type 6013) with 1/4'' NPT threads and a 24V UC coil. Normally closed (voltage = open) and direct operating, so no differential pressure required. Housing of stainless steel with FFKM sealing and a 2 mm orifice.
Notice: This product is discontinued
Description
Bürkert direct operating 2/2-way solenoid valve with 1/4'' NPT inner threads and 24V UC (alternating or direct current) coil. The valve has a stainless steel housing with FFKM sealing and an orifice size of 2 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. The FFKM (perfluorinated rubber) sealing has excellent chemical properties, better than FKM and similar to PTFE. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle.
Important advantages
- Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
- This popular valve features a compact direct operated plunger design that operates without differential pressure
- Bürkert design: proven reliability & durability
6013 series
The Bürkert 6013 valve is one of the most popular Bürkert solenoid valve types. It is a compact, direct operated plunger solenoid valve that operates without a differential pressure over the valve. It can be used for low pressure applications, but also has versions that operate up to 25 bars. The valve is designed for small flow rates with port sizes from G 1/8" up to G 3/8" and orifice sizes ranging from 2 to 6 mm. There is also a special SFB flange design available, which allows for the installation onto a manifold with additional valves. Besides the versatile standard versions, the 6013 is available with options such as ATEX approval, DVGW gas approval, pulse coil (latching), manual override, kick-and-drop function (energy reduction), extreme temperature versions and oil & fat free versions for oxygen, vacuum and analysis applications.
Please note: this product is made to order and can therefore unfortunately not be returned.
