4mmxG1/8'' Hose Barb Male Thread

Notice: This product is discontinued

Discontinued
4mmxG1/8'' Hose Barb Male Thread
4mmxG1/8'' Hose Barb Male Thread
Reference: 30451-B
Brand: Tameson

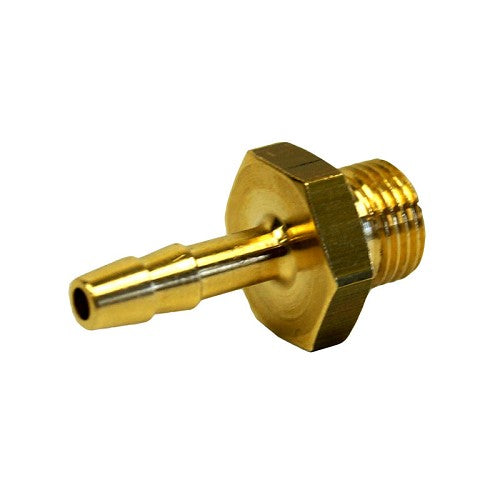

4mmxG1/8" Hose tail barb with male parallel thread, brass. Can be used up to 16 bar.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Hose barb fitting (female thread) of brass with parallel thread, operating pressure up to 16 bar.

Downloads

Specifications

Thread
1/8 inch
Hose pillar connection
4 mm
Connection type
Outer thread cylindrical BSPP-G
Material
Housing material.
Brass
Min pressure (bar)
0
Min pressure difference (bar)
Minimum required differential pressure for proper operation.
0
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Model
1-part
Bend radius (mm)
0
Material connection 1
Brass
Surface protection connection 1
Nickel-plated
Material connection 2
Brass
Surface protection connection 2
Nickel-plated
Shape
Straight
With drain
No
