8mmxG1/4'' Hose barb female thread

Notice: This product is discontinued

Discontinued
8mmxG1/4'' Hose barb female thread
8mmxG1/4'' Hose barb female thread
Reference: 30504
Brand: Tameson

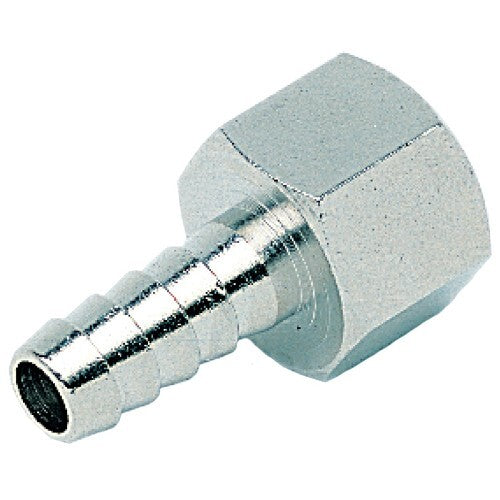

8mmxG1/4" Hose tail barb with female parallel thread, made of nickel plated brass. Can be used up to 16 bar.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Hose barb fitting (female thread) of nickel plated brass with parallel thread, operating pressure up to 16 bar.

Downloads

Specifications

Thread
1/4 inch
Hose pillar connection
8 mm
Connection type
Inner thread cylindrical BSPP-G
Material
Housing material.
Brass
Min pressure (bar)
0
Min pressure difference (bar)
Minimum required differential pressure for proper operation.
0
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Model
1-part
Bend radius (mm)
0
Material connection 1
Brass
Surface protection connection 1
Nickel-plated
Material connection 2
Brass
Surface protection connection 2
Nickel-plated
Shape
Straight
With drain
No
