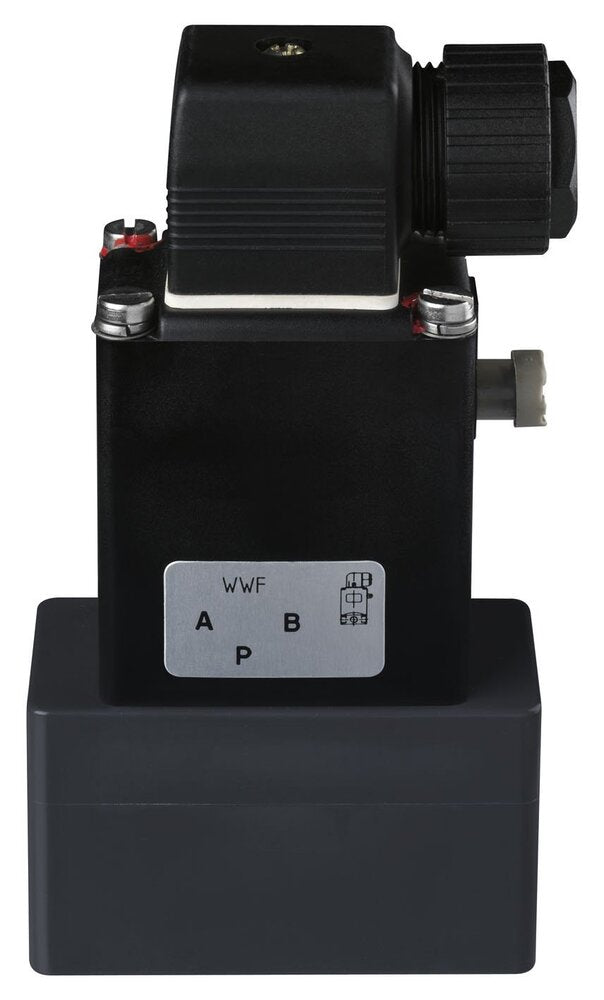

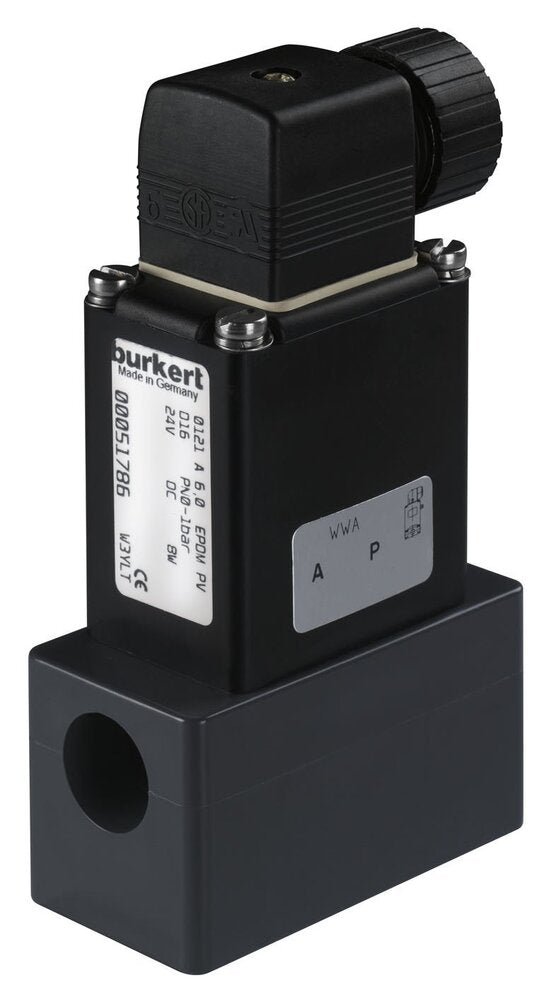

G3/8'' PVC 24VUC Solenoid Valve Burkert 0121 306411
Notice: This product is discontinued
Bürkert 2/2-way solenoid valve (type 0121) with G3/8'' threads and a 24V UC coil. Normally closed (voltage = open) and direct operating, so no differential pressure required. Suitable for slightly contaminated and aggressive media (media separation). Housing of PVC with FKM sealing and a 8 mm orifice.
Notice: This product is discontinued
Description
Bürkert direct operating 2/2-way solenoid valve with G3/8'' inner threads and 24V UC (alternating or direct current) coil. The valve has a PVC housing with FKM sealing and an orifice size of 8 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. This model is media separated and can therefore be used for slightly contaminated and aggressive media. The PVC housing is strong and lightweight and resistant to many chemicals, acids and alkali. The FKM (fluorine rubber or viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle.
Important advantages
- Can be used with slightly contaminated or aggressive media thanks to the media separated design
- Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
- Bürkert design: proven reliability & durability
0121 series
The Bürkert type 0121 valve is a direct-operated, media separated pivoted armature valve with a stainless steel (316L), PTFE (teflon), PVC (polyvinyl chloride), PP (polypropylene) or PVDF (polyvinylidene fluoride) housing. This design allows for complete isolation of your fluid from the valve's working parts, making it a good solution for aggressive or slightly contaminated media like alkaline and acidic solutions. It is available in 3/2- and 2/2-way versions. As a 3/2-way version, it can be delivered as a normally open, normally closed, distributing or mixing valve. It can be delivered with a diameter from DN 2 up to DN 8. As it is direct-acting, no pressure differential over the valve is needed to open the valve. Depending on the model, it can operate up to 6 bar. All 0121 valves come with a manual override for commissioning and testing. ATEX explosion approved versions are also available.
Please note: this product is made to order and can therefore unfortunately not be returned.
