Reference: 314806
Brand: Burkert

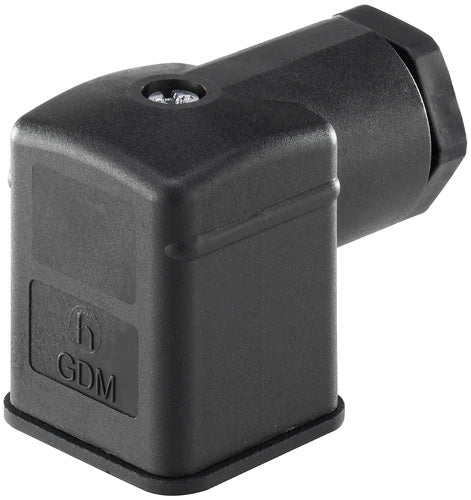

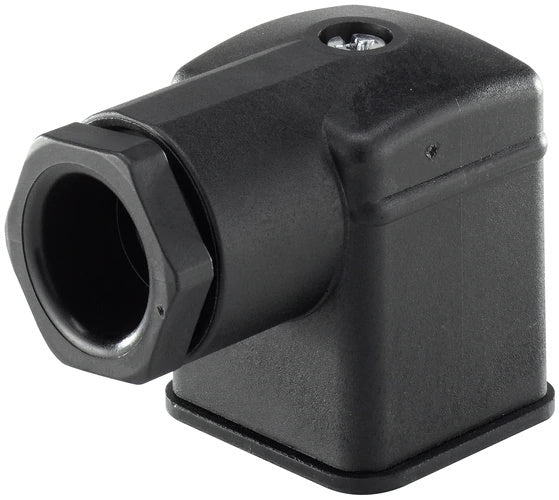

This Burkert 2518 DIN-A connector is used for connecting electrical components, like a solenoid valve, to a power supply. It is rated IP65, has a rated voltage of 0..250V AC/DC, max amperage of 16A, and suitable for an ambient temperature range of -40..105⁰C. This cable plug is 2-pin without additional circuitry, delivered with an iron steel mounting screw. It is modular, compact, comes with a 1m cable and allows for fast assembly and reduced integration time.

View all
Note: product cannot be returned
Regular price
£16.45
excl VAT

In stock +25 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 25 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 27 - 29 business days

Description
Specifications
Downloads
Related products

This Burkert 2518 connector is suitable for a DIN EN 175301-803 Form A (previously DIN 43650) connection, but simply referred to as a DIN-A connection. DIN-A connectors are also called "sugar cube connectors" or "MPM". The Form A refers to the distance between the pins, which is 18mm. It is rated for 0..250V AC/DC, 16A, and suitable for an ambient temperature range of -40..105⁰C. It is modular, compact, IP67 certified, connects the wires at a 90⁰ angle, allows for fast assembly and reduced integration time. This version comes with a steel mounting screw, a 1m cable and as standard has an earth ground connection point. This cable plug has 2-pins and comes with no additional circuitry.

Pros:

  • Adheres to DIN EN 175301-803 Form A, which is commonly used globally and can be used with numerous brands.
  • Burkert proven reliability.
  • Allows for fast assembly and reduced integration time.
  • IP67 certified.

Cons:

  • Only suitable for 0..250V AC/DC.

2518 series

The Burkert 2518 series is a range of cable plugs used to connect a power source to an electrical component, like a valve. Every plug is designed according to DIN EN 175301-803 (previously DIN 43650) Form A (shortly DIN-A). It comes in a wide variety of voltages, amperage and designs, each of which meet different protection, indication, or performance requirements. Possible circuitry options are: 2-pin without circuit, 3-pin without circuit, LED, varistor, rectifier, pole protection, freewheeling diode, HL-circuit, LR-circuit, IN-circuit, or a combination of different circuits. They connect at a 90⁰ angle and are IP65 certified, allowing for fast assembly and reduced integration time.
