Reference: 315334
Brand: Burkert

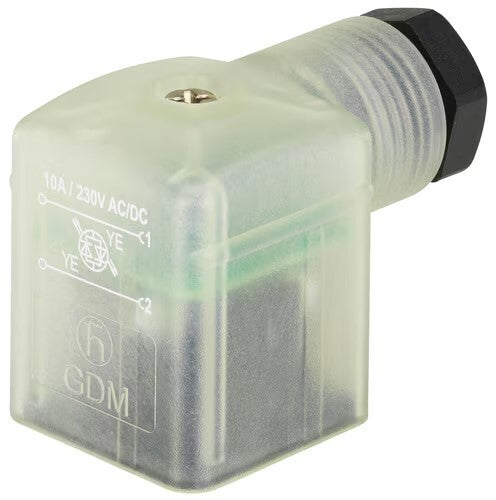

This Burkert 2518 DIN-A connector is used for connecting electrical components, like a solenoid valve, to a power supply. It is rated IP65, has a rated voltage of 200..240V AC/DC, max amperage of 10A, and suitable for an ambient temperature range of -30..90⁰C. This cable plug has an LED in the circuit used for valve power status indication and faster electrical troubleshooting. It is modular, compact and allows for fast assembly and reduced integration time.

View all
Note: product cannot be returned
Regular price
£12.19
excl VAT

In stock +25 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 25 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 27 - 29 business days

Description
Specifications
Downloads
Related products

This Burkert 2518 connector has a LED and is suitable for a DIN EN 175301-803 Form A (previously DIN 43650) connection, but simply referred to as a DIN-A connection. DIN-A connectors are also called "sugar cube connectors" or "MPM". The Form A refers to the distance between the pins, which is 18mm. It is rated for 200..240V AC/DC, 10A, and suitable for an ambient temperature range of -30..90⁰C. It is modular, compact, IP65 certified, connects the wires at a 90⁰ angle, allows for fast assembly and reduced integration time. This version comes with a steel mounting screw and as standard has an earth ground connection point. This cable plug has an LED in the circuit to allow for reduced installation time and faster electrical troubleshooting due to the visual feedback. Correct polarity is crucial for proper operation and a sufficient amount of current must pass through to light the LED.

Pros:

  • Adheres to DIN EN 175301-803 Form A, which is commonly used globally and can be used with numerous brands.
  • This cable plug has an LED in the circuit used for valve power status indication and faster electrical troubleshooting.
  • Burkert proven reliability.
  • Allows for fast assembly and reduced integration time.
  • IP65 certified.

Cons:

  • Only suitable for 200..240V AC/DC.

2518 series

The Burkert 2518 series is a range of cable plugs used to connect a power source to an electrical component, like a valve. Every plug is designed according to DIN EN 175301-803 (previously DIN 43650) Form A (shortly DIN-A). It comes in a wide variety of voltages, amperage and designs, each of which meet different protection, indication, or performance requirements. Possible circuitry options are: 2-pin without circuit, 3-pin without circuit, LED, varistor, rectifier, pole protection, freewheeling diode, HL-circuit, LR-circuit, IN-circuit, or a combination of different circuits. They connect at a 90⁰ angle and are IP65 certified, allowing for fast assembly and reduced integration time.
