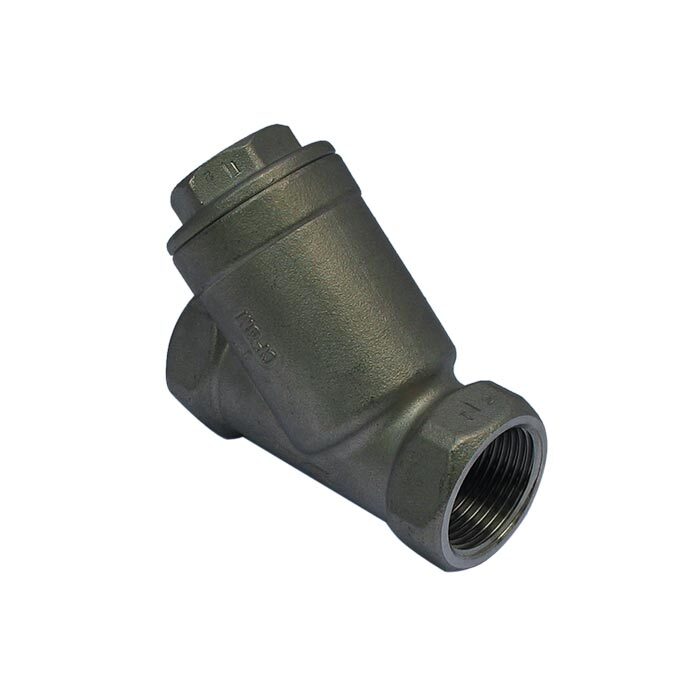

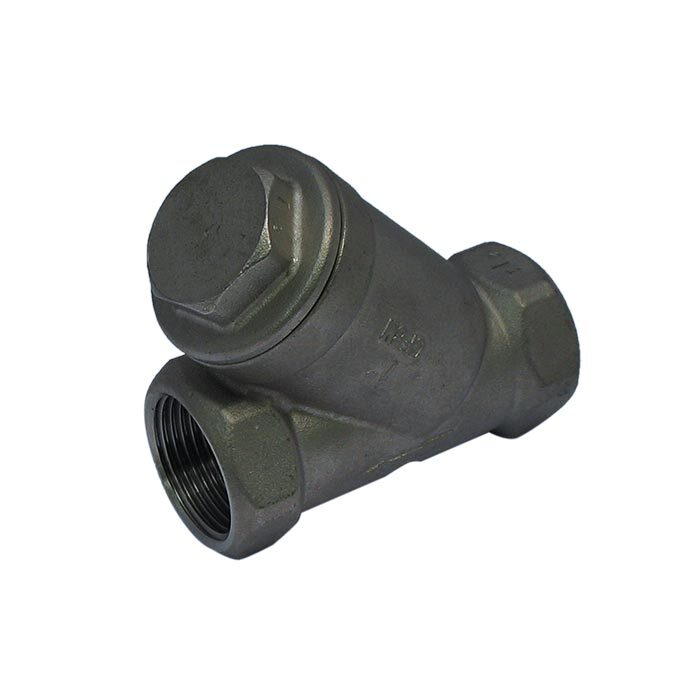

Stainless steel particle filter (Y-filter) with 3/8" pipe connection and stainless steel mesh. For media from -20°C up to 230°C. To be used in a single flow direction. The residue collects in the filter and can be cleaned by unscrewing the sealing cap.
Feature | Value |
Port threads | G3/8 inch |
Filter housing | Stainless steel |
Filter material | Stainless steel (SS 304) |
Medium temperature | -20..230°C |
O-ring | PTFE (teflon) |
Flow Direction | single (arrow) |
Applications
Solenoid valves only operate well in combination with clean liquids or gases. Therefore, it is recommended to install a filter before the solenoid valve. The filter can also be used for other applications.
