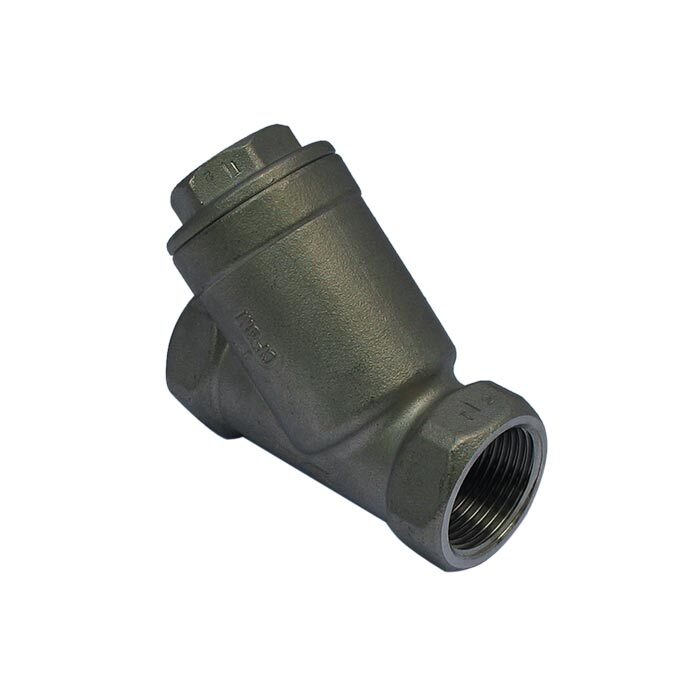

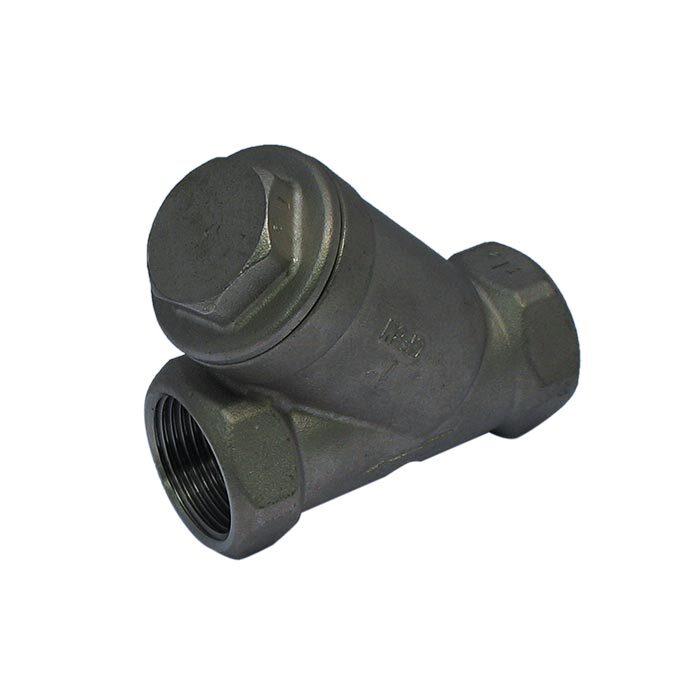

657 - G1'' Strainer Stainless Steel

Name: 657 - G1'' Strainer Stainless Steel
Brand: JP Fluid Control
Price: 29.07 GBP
Availability: InStock

Notice: This product is discontinued and replaced by SLS-100

G 1" Stainless steel Y-Strainer 0.8 mm Mesh 40 Bar

SLS-100 £122.84

Discontinued

Reference: 657S100

Brand: JP Fluid Control

Stainless Steel Y-shaped strainer with G1 inch threads and stainless steel mesh. For media between -20°C and 230°C. Can be used in one flow direction.

View all

Note: product cannot be returned

Notice: This product is discontinued and replaced by SLS-100

G 1" Stainless steel Y-Strainer 0.8 mm Mesh 40 Bar

SLS-100 £122.84

Description

Specifications

Downloads

Description

Stainless steel particle filter (Y-filter) with 1" pipe connection and stainless steel mesh. For media from -20°C up to 230°C. To be used in a single flow direction. The residue collects in the filter and can be cleaned by unscrewing the sealing cap.

Feature	Value
Port threads	G1 inch
Filter housing	Stainless steel
Filter material	Stainless steel (SS 304)
Medium temperature	-20..230°C
O-ring	PTFE (teflon)
Flow Direction	single (arrow)

Applications

Solenoid valves only operate well in combination with clean liquids or gases. Therefore, it is recommended to install a filter before the solenoid valve. The filter can also be used for other applications.
