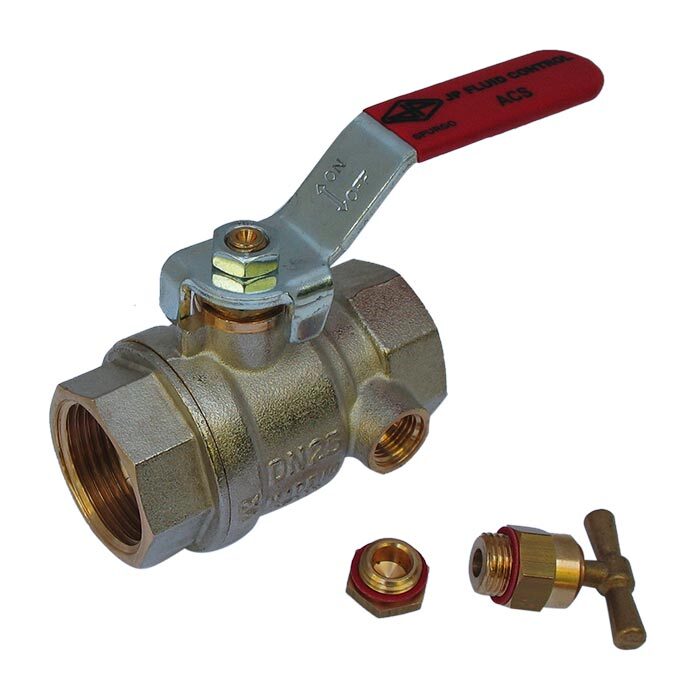

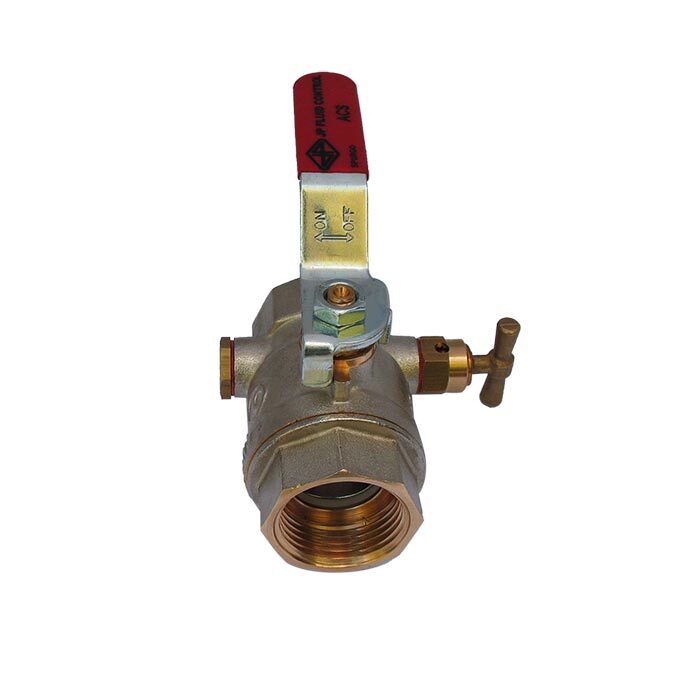

68 - G1'' 2-Way Ball Valve Full Bore F/F - Bleed Point
Notice: This product is discontinued, a possible alternative is BL2BN-M-IST-100
2-Way ball valve with G1 inch threads (F/F) and lever for open/close control. 25mm nominal diameter and max pressure 20 bar. Provided with drain cock. Temperature range from -10 to 110°C. Nickel plated brass hard chromed ball and PTFE seals.
Notice: This product is discontinued, a possible alternative is BL2BN-M-IST-100
Description
This 2-way ball valve from JP Fluid Control with a nominal diameter of 25 mm is designed for on/off flow control. The valve has G 1 inch female threaded ports. This is BSPP (British Standard Pipe Parallel. With our range of 1 inch fittings, the valve can be installed in any pipe (recommended pipe diameter ± 20 - 30 mm).
The housing of the valve is made of nickel-plated brass, the ball is made of brass and the seals are made of PTFE. The valve has an integrated bleed point for pressure control or discharge from heating systems. It is suitable for various media, such as water, oil or air. The valve can be used up to a max pressure of 20 bar (290 psi) and within a temperature range between -10 and 110 °C (14 and 230 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If the handle is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.
Pros:
- No extra friction losses thanks to the full bore design
- Equipped with an integrated bleed point for pressure control
Cons:
- Not suitable for aggressive media
- Suitable only for manual actuation
68 series
Our 2-way brass ball valve selection ranges from G 1/2 inch to G 2 inch. The valves are made of nickel-plated brass, the ball is made of brass and the seals are made of PTFE. Their operating pressure is up to 20 bar (290 psi). These valves have an integrated bleed point for pressure control or discharge from heating systems. They are suitable for various media, such as water, oil or air. The operating temperature range is from -10 to 110 °C (14 to 230 °F). The valves are handle operated. The ball valves in the 68 series of JP Fluid Control are characterized by a long life.
