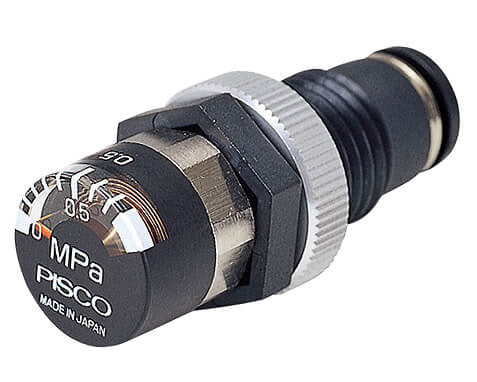

6mm PBT Bulkhead Pressure Gauge

6mm PBT Bulkhead Pressure Gauge
6mm PBT Bulkhead Pressure Gauge
Image may vary slightly
See specifications for accurate information.
Reference: GPM-6
Brand: Pisco

This is a bulkhead union pressure gauge for pneumatic system pressure measurement. The scale is in MPa. It has a bulkhead 6 mm push-in fitting for connection. It is suitable for a maximum operating pressure of 8 bar (116 psi). It has NBR seals that make it suitable for applications within a temperature range from 0 to 60 °C (32 to 140 °F).

View all
£29.39
excl VAT
In stock +36 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 36 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 38 - 40 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This is a bulkhead union pressure gauge for pneumatic system pressure measurement. Connect the pressure gauge to your system and it will show the pressure rating in MPa.

It has a bulkhead 6 mm push-in fitting for connection. The push-in fitting provides an easy connection with the tubing. Push the tube in and the fitting will fix it with stainless steel claws.

It is suitable for a maximum operating pressure of 8 bar (116 psi. It has NBR seals that make it suitable for applications within a temperature range from 0 to 60°C (32 to 140 °F) (no freezing).

Pros:

  • Equipped with easy to connect push-in fittings

Cons:

  • Not suitable for vacuum applications

GPM series

The GPM – series includes bulkhead pressure gauges for pneumatic system pressure measurement. They are equipped with a bulkhead push-in fitting port. The sizes range from 4 mm to 8 mm. The indicated pressure range is from 0 to 8 bar. The pressure gauges are suitable for a temperature range from 0 to 60°C (no freezing). The scale is in MPa.

Downloads

Pressure Gauges
pdf
Download

Specifications

Measuring range
The range of pressures that the gauge can measure accurately.
0 to 8
Scale division [bar]
The smallest pressure difference that can be read on the gauge.
1 bar
Push-in connection
Size of the push-in connection port.
6 mm
Plug-in connection (mm)
Size of the plug-in connection port.
0
Material process connection
The material of the connection port is in direct contact with the measured medium. Use our chemical resistance chart to easily search for compatibility with specific substances.
PBT
Pressure unit
The unit of measurement used to display the pressure on the gauge.
MPa
Cabinet diameter (mm)
The dimensions of the pressure gauge cabinet include diameter (D), height (A), and width (B).
19
Connection location
The connection location on a pressure gauge refers to where the gauge's connection port is located. Connection locations can be either below or at the rear of the gauge.
Below
Max. medium temperature (continuous) (°C)
The maximum temperature of the medium being measured that the pressure gauge can handle continuously.
60
Max. ambient temperature (°C)
The maximum temperature of the environment in which the pressure gauge is being used.
0
Pressure gauge attachment
The pressure gauge attachment refers to the method used to connect the gauge to the system being measured. Common attachment types include direct mounting, front flange, and wall flange.
Direct
Wrench width (mm)
The width of the wrench needed to attach the pressure gauge to the system being measured.
14
