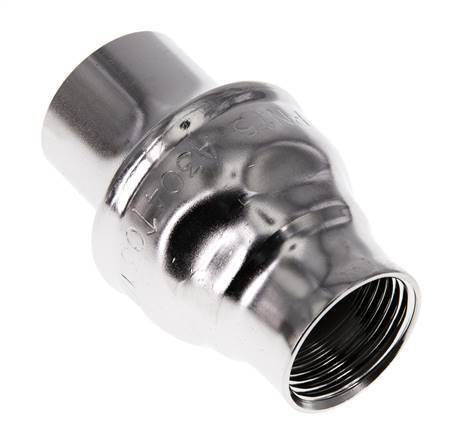

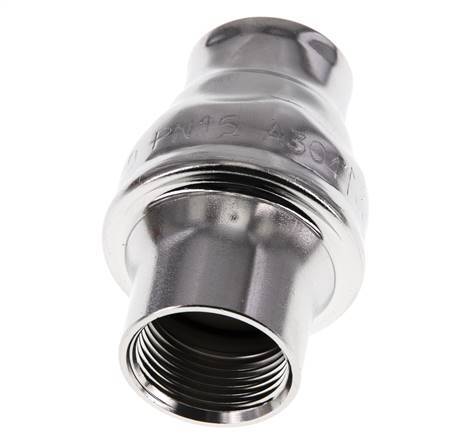

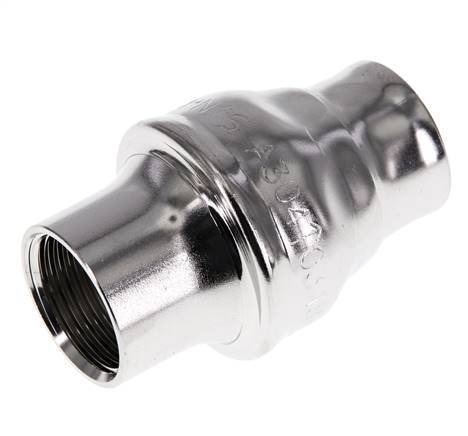

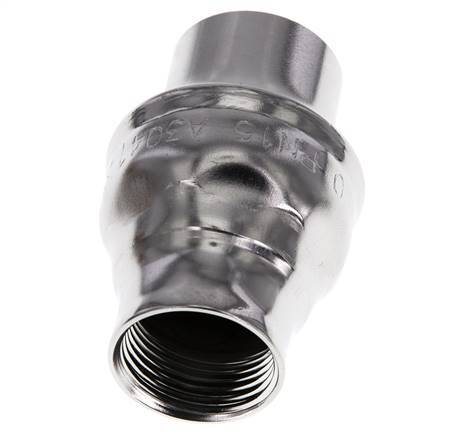

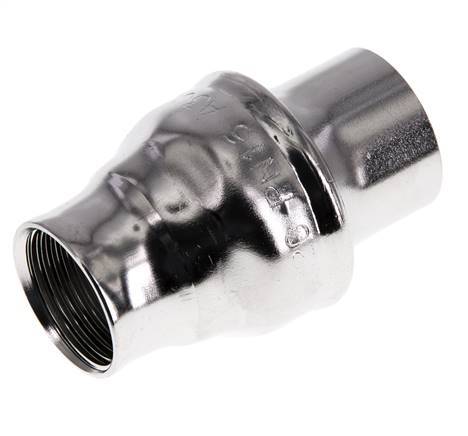

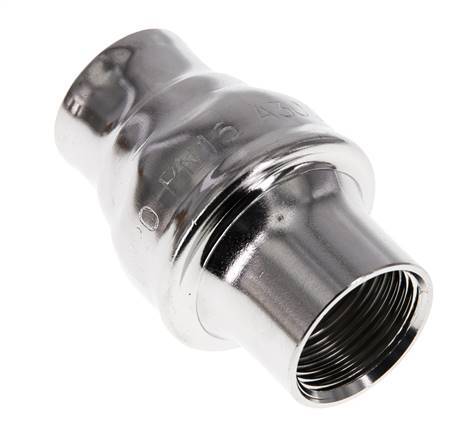

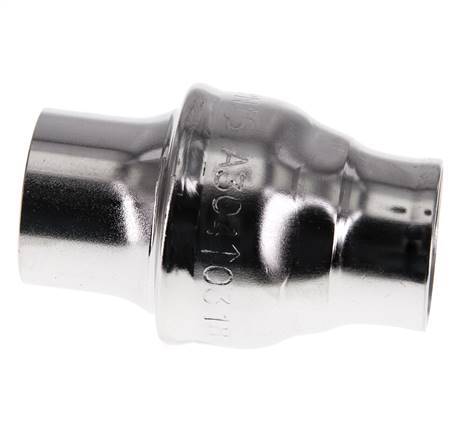

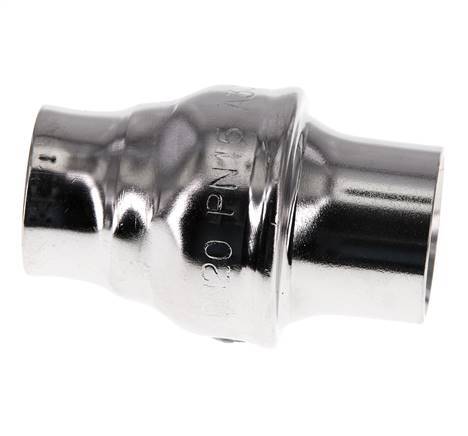

G3/4'' Stainless Steel 304 Check Valve NBR 0.03-16bar (0.44-232psi)

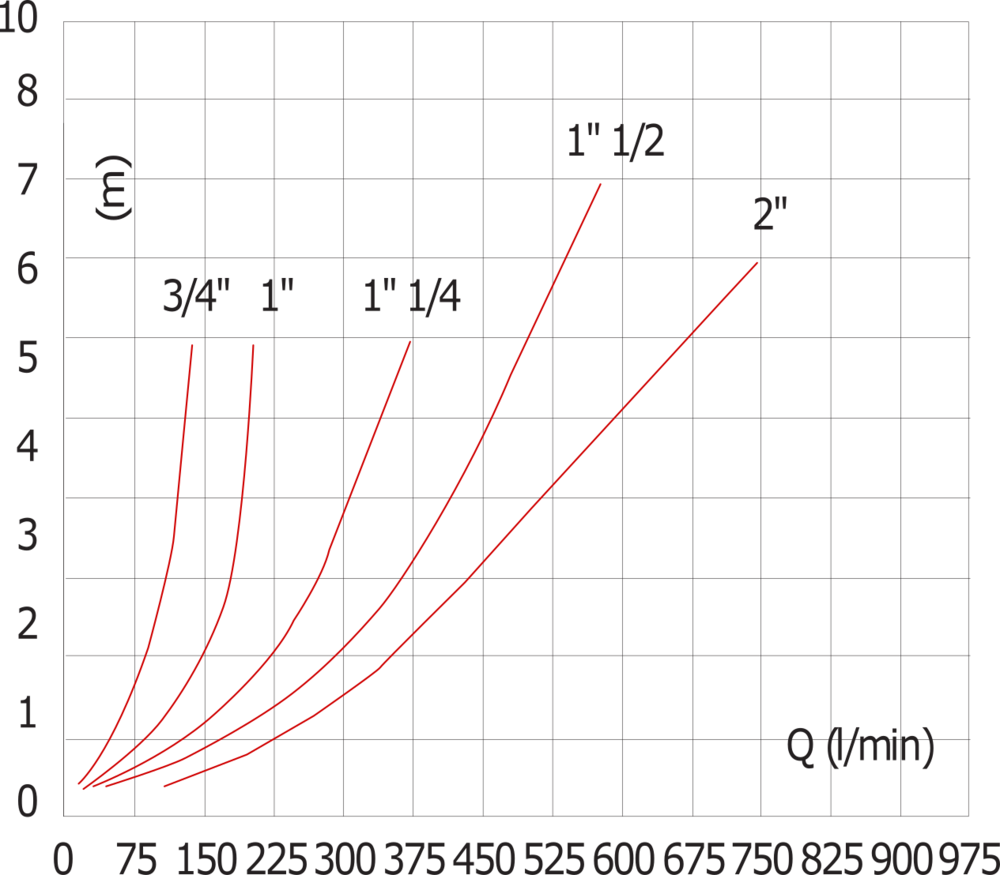

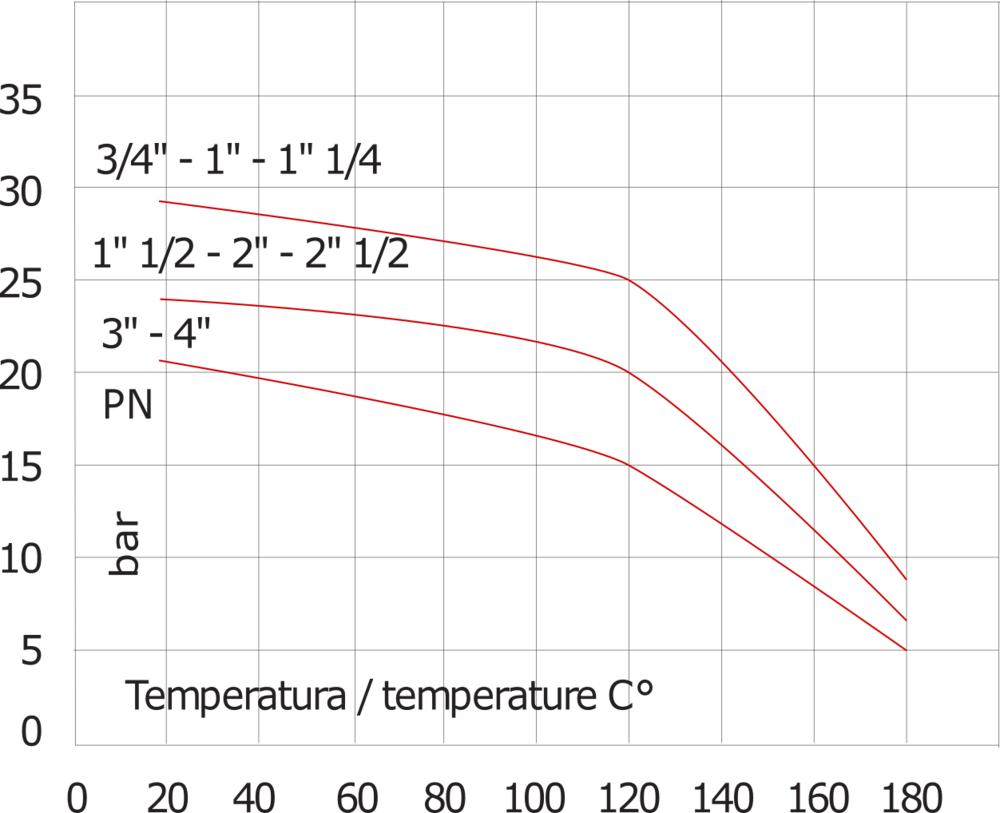

G 3/4 inch check valve made of stainless steel 304 with an NBR seal. The minimum differential pressure across the non-return valve must be higher than 0.03 bar (0.44 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between -25 and 90° C (-13 to 194° F). The Kv-value is 10.8 m3/h (180 l/min @1 bar pressure). In imperial units: Cv = 12.48 GPM @ 1 psi pressure.

Pros:

• For a wide range of applications thanks to the qualitative corrosion-resistant design
• NBR can be used with water, air, oil, solvents and alcohol

Cons:

• NBR is unsuitable for brake fluid and polar solvents. EPDM or FKM are suitable alternatives in this case
• 304 is less resistant than 316 stainless steel

Mondeo IDRJA series

The Mondeo IDRJA series check or foot valves are fabricated from pressed stainless steel. This production method allows high performance combined with competitive pricing. The products are degreased, pickled and electropolished. They're available in 304 and 316 stainless steel with a wide variety of sealing materials. Versions are available with antipollution control, drinking water approvals, suitable for heavy duty, with male and female connections, with flange connections, with NPT threads, with Victaulic connections or with a connection for air feeding.
