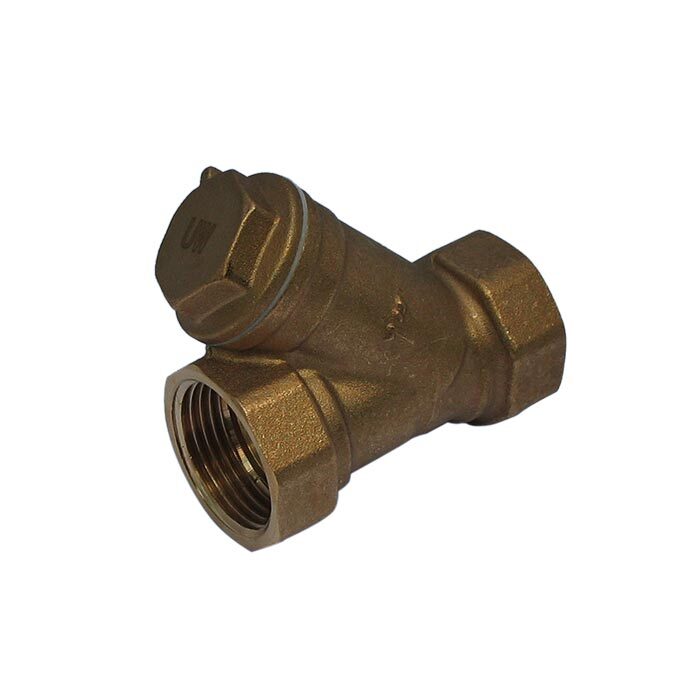

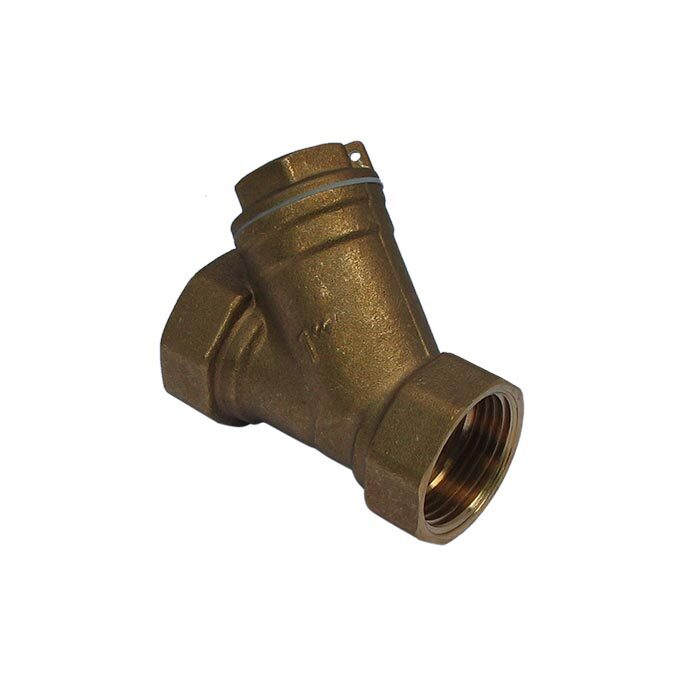

924 - G2'' Strainer Brass

Name: 924 - G2'' Strainer Brass
Brand: JP Fluid Control
Price: 39.06 GBP
Availability: InStock

Notice: This product is discontinued and replaced by SLB-200

Discontinued

Reference: 924B200

Brand: JP Fluid Control

Brass Y-shaped strainer with G2 inch threads and stainless steel mesh. For media between 0°C and 90°C. Can be used in one flow direction.

View all

Note: product cannot be returned

Notice: This product is discontinued and replaced by SLB-200

Description

Specifications

Downloads

Description

Brass particle filter (Y-filter) with 2" pipe connection and stainless steel mesh. For media from 0°C up to 90°C. To be used in a single flow direction. The residue collects in the filter and can be cleaned by unscrewing the sealing cap.

Feature	Value
Port threads	G2 inch
Filter housing	Brass
Filter material	Stainless steel (SS 304)
Medium temperature	0..90°C
O-ring	PTFE (teflon)
Flow Direction	single (arrow)

Applications

Solenoid valves only operate well in combination with clean liquids or gases. Therefore, it is recommended to install a filter before the solenoid valve. The filter can also be used for other applications.
