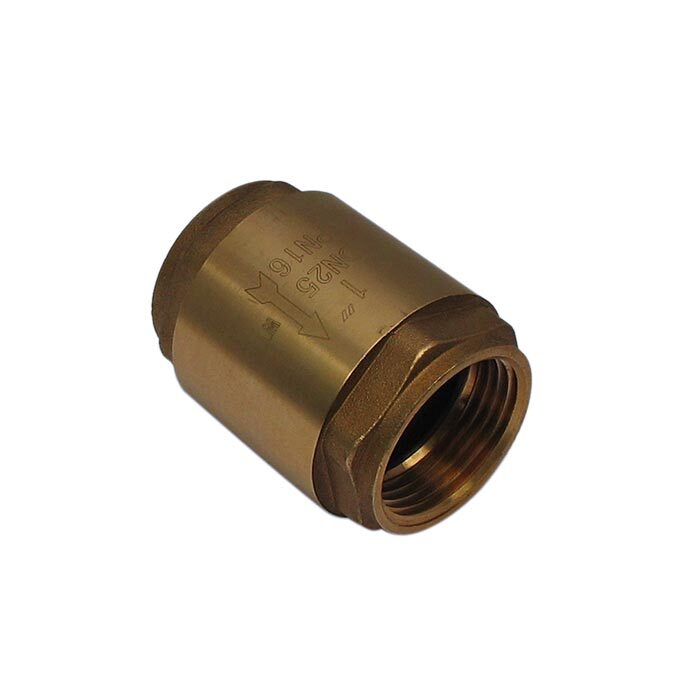

999L - G1'' Check Valve Brass NBR F/F 16bar

Notice: This product is discontinued and replaced by CLIB-100

G1'' Brass Check Valve NBR PN12 - CLIB
G1'' Brass Check Valve NBR PN12 - CLIB
CLIB-100 £11.59
Discontinued
999L - G1'' Check Valve Brass NBR F/F 16bar
999L - G1'' Check Valve Brass NBR F/F 16bar
999L - G1'' Check Valve Brass NBR F/F 16bar
999L - G1'' Check Valve Brass NBR F/F 16bar
Reference: 999LB100
Brand: JP Fluid Control

G1 inch (F/F) check valve (brand JP Fluid Control) made of brass with NBR seal. For a maximum pressure of 16 bar and temperature range of 0 to 90°C.

View all
Note: product cannot be returned

Notice: This product is discontinued and replaced by CLIB-100

G1'' Brass Check Valve NBR PN12 - CLIB
G1'' Brass Check Valve NBR PN12 - CLIB
CLIB-100 £11.59
Description
Specifications
Downloads
Related products

Description

G1" Brass check valve with parallel thread (BSPP) and NBR seal. The minimum differential pressure across the non-return valve must be higher than 0.1 bar. The valve has a light spring to close the valve. The maximum operating pressure is 16 bar and the valve is suitable for temperatures between 0 and 90°C.

Downloads

Safety instructions
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1 inch
Connection type
Inner thread cylindrical BSPP-G
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Brass
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
NBR (nitrile rubber)
Recommended for
Water (up to 60°C), Air, Oil, Alcohols, Lubricant
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
0
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
90
Min pressure difference (bar)
Minimum required differential pressure for proper operation.
0.1
Valve shape
The shape of the housing.
Inline spring closed
Model
Straight
Surface protection
The type of surface protection of the component.
Untreated
Width (mm)
The product's width without packaging.
48
Height (mm)
The product's height without packaging.
75
Article compression class
PN 16
