ABB Busch-Jaeger Reflex SI Insert Switchgear Plate - 2CKA001724A1150

Notice: This product is discontinued

Discontinued

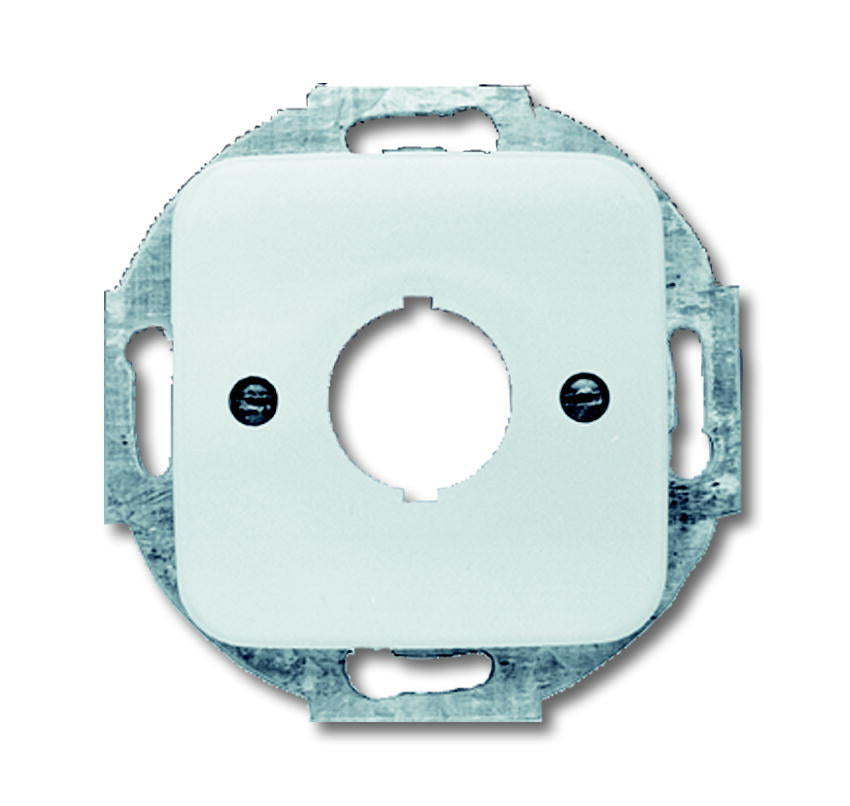

ABB Busch-Jaeger Reflex SI Insert Switchgear Plate - 2CKA001724A1150
ABB Busch-Jaeger Reflex SI Insert Switchgear Plate - 2CKA001724A1150
Image may vary slightly
See specifications for accurate information.
Reference: E2GU9
Brand: ABB
Mfr. Part: 2CKA001724A1150

With screw-type terminal. Fixed with central locknut. As cover for pilot devices with a diameter of 22.5 mm Without claws.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

With screw-type terminal. Fixed with central locknut. As cover for pilot devices with a diameter of 22.5 mm Without claws.

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Assembly arrangement
Basic element with central cover plate
Utilization
Bore hole
Support ring
Yes
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Imprintable label
Without indication field
With imprint
No
Mounting method
Flush mounted (plaster)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
The type of surface protection of the component.
Untreated
Surface finishing
Glossy
Color
White
RAL-number (similar)
9010
Transparent
No
Type of fastening
Mounting with screw
Number of modules (module system)
1
With buses/couplings
No
Suitable for number of connectors
1
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
With lighting
No
Suitable for degree of protection (IP)
IP20
Min. depth of built-in installation box (mm)
40
