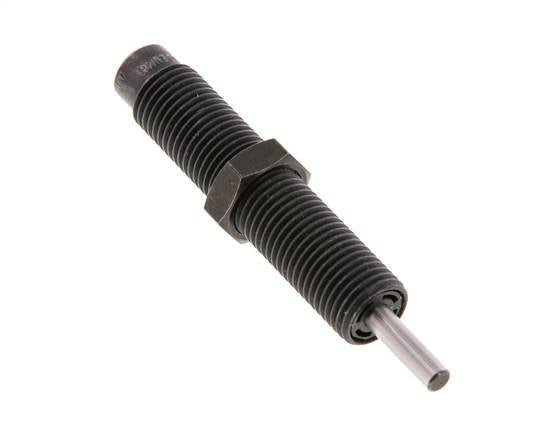

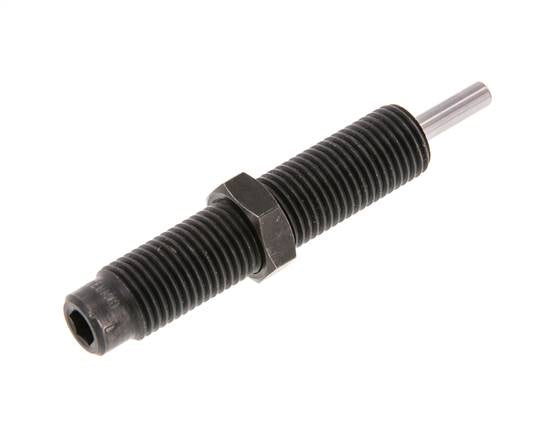

ACE Self-Adjusting Shock Absorber M 14x1.5, 12.7 mm Stroke - MC150EUM
ACE self-adjusting industrial shock absorber with M 14x1,5 body thread and 12,7 mm stroke rated for up to 20 Nm per stroke, 34000 Nm/h continuous, effective mass 0,9 - 10 kg, operating temperature 0 to +66 °C (32 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on pneumatic cylinders, compact linear axes, indexing tables, and rotary stops where the impact energy is consistent between cycles and no field tuning is wanted.
- Regular price
- £87.31
Description
ACE self-adjusting industrial shock absorber with M 14x1,5 body thread and 12,7 mm stroke rated for up to 20 Nm per stroke, 34000 Nm/h continuous, effective mass 0,9 - 10 kg, operating temperature 0 to +66 °C (32 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on pneumatic cylinders, compact linear axes, indexing tables, and rotary stops where the impact energy is consistent between cycles and no field tuning is wanted.
Pros:
- Fixed damping profile for 0,9–10 kg, no setup or tuning required
- Up to 20 Nm/stroke, 34000 Nm/h on a M 14x1,5 body, 12,7 mm stroke
- Sealed and maintenance-free, drop-in on standard machine axes
Cons:
- Outside 0,9–10 kg the damping curve is no longer optimal
- Rated 0 to +66 °C (32 to +151 °F); check before sub-zero or hot service
- Off-axis impacts shorten life; add a side load adapter when needed
