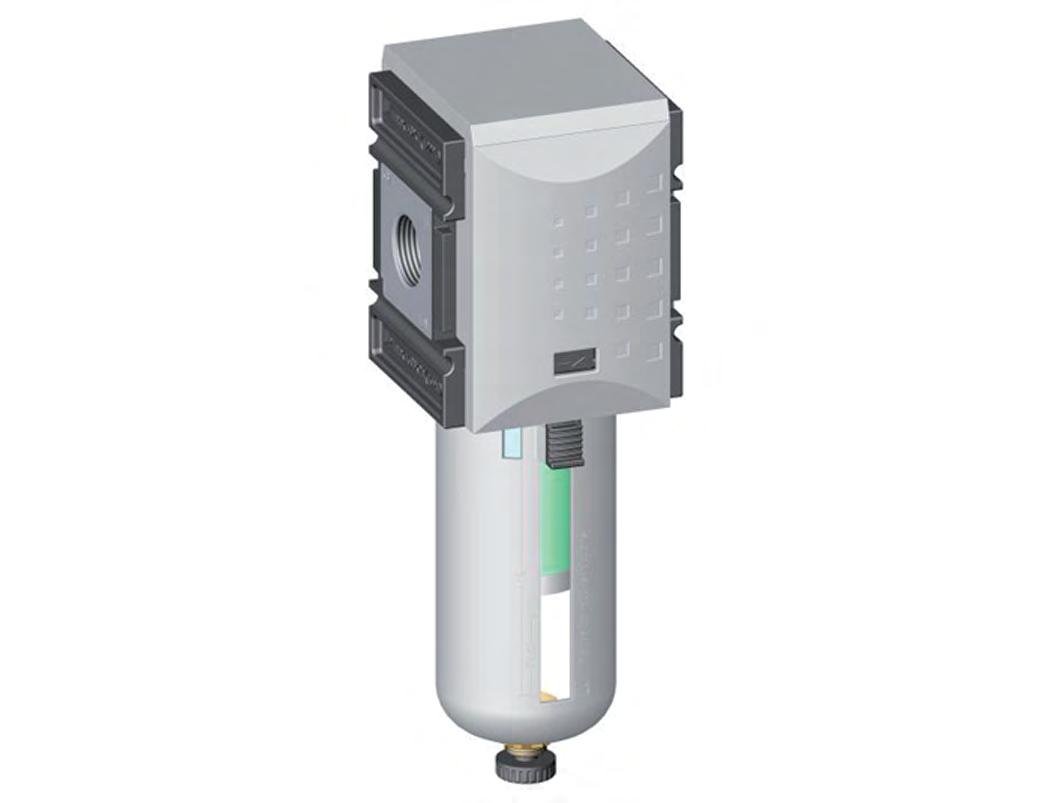

Activated Carbon Filter G1'' 2500 l/min Without Drainage Metal Futura 4
This G 1 inch pneumatic filter filters out contaminants to ensure clean air. The max flow rate is 2500 l/min (always use the flow chart for correct sizing). Suitable for a 16.0 bar (232 psi) max input and temperatures between -10 and 50 °C (14 and 122 °F). The filter bowl capacity is 87 cm3.
- Regular price
- £139.83
Description

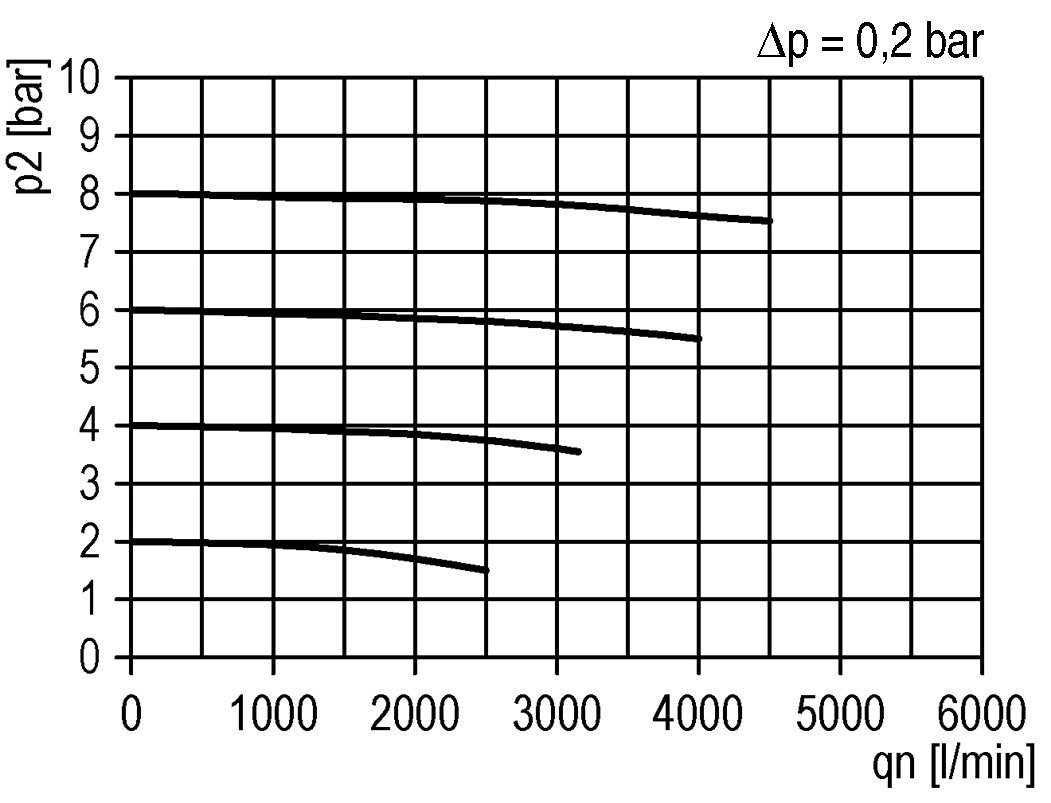

This model has G 1 inch ports. The maximum flow rate is 2500 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve.
The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between -10 and 50 °C (14 and 122 °F). The housing material is made out of PA 66 and the filter has a bowl made of metal. It has a position indicator to see the bowl level. Activated carbon filters are used to remove odors from compressed air. For a longer service life, it is recommended to use the upstream connection of a prefilter and microfilter.
Mounting brackets need to be ordered separately.
