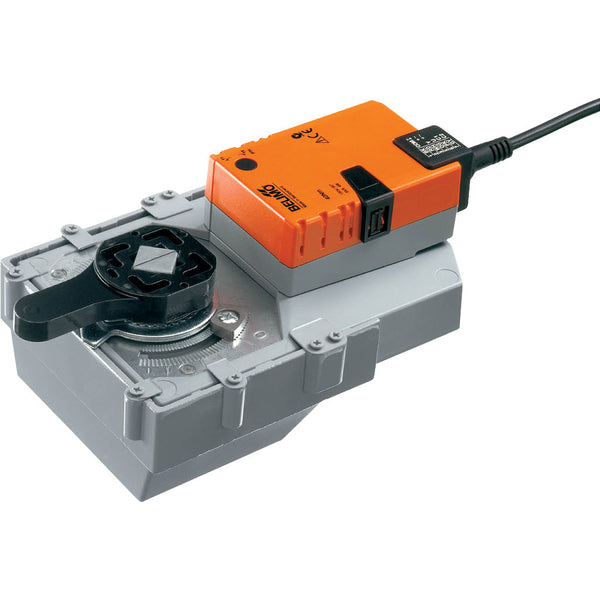

Belimo Actuator Open/Close 24VAC/DC 16Nm IP54 9s SRQ24A
This Belimo electrical actuator is designed for controlling quarter turn valves. The actuator delivers a torque of 16 Nm and can open/close the valve in 9 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator features two-point (open-close) control. The actuator has a durable plastic housing and has an IP54 protection rating. This actuator can operate within ambient temperatures between -30 and 40 °C (-22 and 104 °F). The actuator comes with a 1-meter power cable.
- Regular price
- £454.39
Description
This Belimo electrical actuator is designed for controlling quarter turn valves. The actuator delivers a torque of 16 Nm and can open/close the valve in 9 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator features two-point (open-close) control. The actuator has a durable plastic housing and has an IP54 protection rating. This actuator can operate within ambient temperatures between -30 and 40 °C (-22 and 104 °F). The actuator comes with a 1-meter power cable.
The actuator is equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The rotation angle can be adjusted with mechanical end stops.
Pros:
- Fast acting 9 s
- Manual override
- The actuator is overload protected
- Visual position indicator
