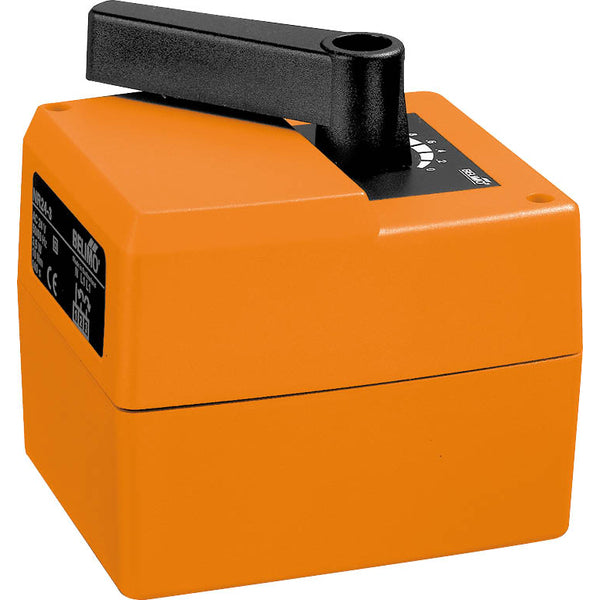

Belimo Actuator for Mixing Valve 3-Point 24VAC 10Nm IP40 SPDT HT24-3-S
This Belimo electrical actuator is designed for controlling quarter turn valves. The actuator delivers a torque of 10 Nm and can open/close the valve in 140 seconds. This actuator requires a supply voltage of 24 V AC and has a visual positioning indicator to clearly see the valve position. The actuator features three-point (open-close) control. The actuator has a durable plastic housing and has an IP40 protection rating. This actuator can operate within ambient temperatures between 0 and 50 °C (32 and 122 °F). The actuator is equipped with 1 X SPDT auxiliary switches. The actuator comes with a 1-meter power cable.
- Regular price
- £220.43
Description
This Belimo electrical actuator is designed for controlling quarter turn valves. The actuator delivers a torque of 10 Nm and can open/close the valve in 140 seconds. This actuator requires a supply voltage of 24 V AC and has a visual positioning indicator to clearly see the valve position. The actuator features three-point (open-close) control. The actuator has a durable plastic housing and has an IP40 protection rating. This actuator can operate within ambient temperatures between 0 and 50 °C (32 and 122 °F). The actuator is equipped with 1 X SPDT auxiliary switches. The actuator comes with a 1-meter power cable.
The actuator is equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached.
Pros:
- The actuator has the 1 x spdt auxiliary switches
- Manual override
- The actuator is overload protected
- Visual position indicator
Cons:
- The time to open/close of 140 s is slow for some applications
