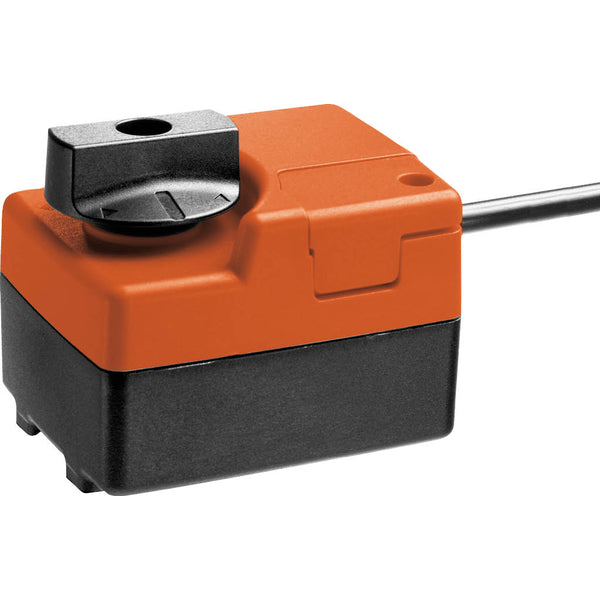

Belimo Actuator 2&3-Point 24VAC/DC 2Nm IP40 100s TR24
This Belimo electrical actuator is designed for controlling quarter turn valves. The actuator delivers a torque of 2 Nm and can open/close the valve in 100 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator features two-point and three-point control. The actuator has a durable plastic housing and has an IP40 protection rating. This actuator can operate within ambient temperatures between -7 and 50 °C (19 and 122 °F). The actuator comes with a 1-meter power cable.
- Regular price
- £134.97
Description
This Belimo electrical actuator is designed for controlling quarter turn valves. The actuator delivers a torque of 2 Nm and can open/close the valve in 100 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator features two-point and three-point control. The actuator has a durable plastic housing and has an IP40 protection rating. This actuator can operate within ambient temperatures between -7 and 50 °C (19 and 122 °F). The actuator comes with a 1-meter power cable.
To manually change the position, press and hold the override button, then turn the lever. The actuator automatically switches off when end stops are reached, with a pulse duration of ≥0.5 s. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments.
Pros:
- Manual override
- Visual position indicator
Cons:
- The time to open/close of 100 s is slow for some applications
