Reference: E2WXH
Brand: Adels
Mfr. Part: 16476310

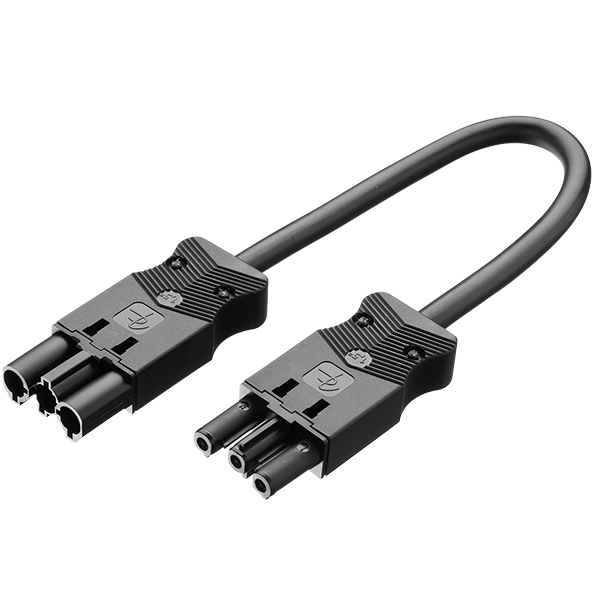

This coupler cable from the AC 166 G series from Adels is a 3-pole interconnect cable equipped with a male plug and a female mating plug. The black H05VV-F cord has a nominal conductor cross-section of 1.5mm². The total length of the coupling cord is 1 meter. Furthermore, the fire rating, according to EN 13501-6, of the Adels AC 166 G coupling cable is Eca.

View all
£8.01
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

This coupler cable from the AC 166 G series from Adels is a 3-pole interconnect cable equipped with a male plug and a female mating plug. The black H05VV-F cord has a nominal conductor cross-section of 1.5mm². The total length of the coupling cord is 1 meter. Furthermore, the fire rating, according to EN 13501-6, of the Adels AC 166 G coupling cable is Eca.

Downloads

Specifications

Rated voltage (V)
500
Rated current (A)
16
Number of poles
3
Type of finished cable
Connecting cable
Type side 1
Plug
Type side 2
Bus
Total length (mm)
1000
Mechanical coding
No
Colour coding/contact insert
Black
Colour housing
Black
Cable type
H05VV-F
Cable diameter (mm)
7.4 mm to 9.4 mm
Colour outer sheath
Black
Pole codification
L, N, PE
Nominal cross section conductor (mm²)
1.5
Locking mechanism
None
Insulating piece permanent temperature-resistant (°C)
70
Cable permanent temperature-resistant to (°C)
70
Halogen free
No
Fire load (kWh)
0.27
Surface treatment contacts
Other
Rated surge voltage (kV)
4
Reaction-to-fire class according to EN 13501-6
Eca
