Adels AC166 Patch Cord Adjustable Building Installation - 1804634

Adels AC166 Patch Cord Adjustable Building Installation - 1804634
Adels AC166 Patch Cord Adjustable Building Installation - 1804634
Image may vary slightly
See specifications for accurate information.
Reference: E2WXP
Brand: Adels
Mfr. Part: 16478310

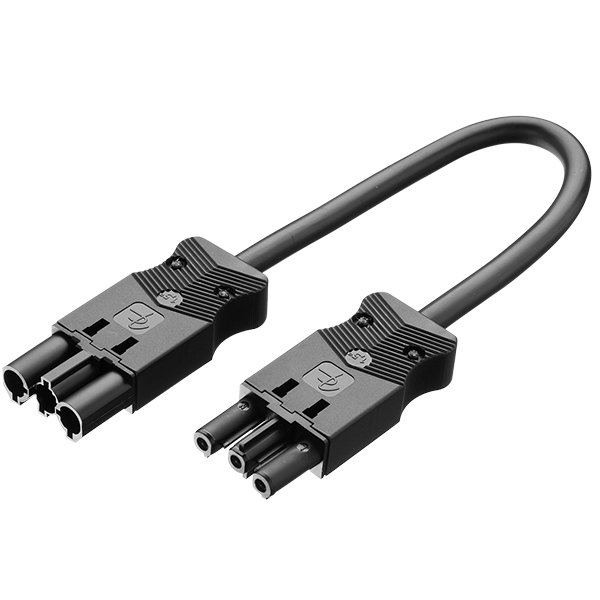

Adels AC166 patch cable inst.bare buildinginstall., design side 1 plug, design side 2 mating plug (female), type made-up cable connection cable, total length 1000mm, sheath black, nominal conductor cross-section 2.5mm², coding/contact insert black, pole marking L. N. PE, 3 poles.

View all
£8.85
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Adels AC166 patch cable inst.bare buildinginstall., design side 1 plug, design side 2 mating plug (female), type made-up cable connection cable, total length 1000mm, sheath black, nominal conductor cross-section 2.5mm², coding/contact insert black, pole marking L. N. PE, 3 poles.

Downloads

Specifications

Rated voltage (V)
500
Rated current (A)
20
Number of poles
3
Type of finished cable
Connecting cable
Type side 1
Plug
Type side 2
Bus
Total length (mm)
1000
Mechanical coding
No
Colour coding/contact insert
Black
Colour housing
Black
Cable type
H05VV-F
Cable diameter (mm)
9.2 mm to 11.4 mm
Colour outer sheath
Black
Pole codification
L, N, PE
Nominal cross section conductor (mm²)
2.5
Locking mechanism
None
Insulating piece permanent temperature-resistant (°C)
70
Cable permanent temperature-resistant to (°C)
70
Halogen free
No
Fire load (kWh)
0.43
Surface treatment contacts
Other
Rated surge voltage (kV)
4
Reaction-to-fire class according to EN 13501-6
Eca
