Adels Patch Cable Adjustable Building Installation - 1804920

Notice: This product is discontinued

Discontinued
Adels Patch Cable Adjustable Building Installation - 1804920
Adels Patch Cable Adjustable Building Installation - 1804920
Image may vary slightly
See specifications for accurate information.
Reference: E2VF4
Brand: Adels
Mfr. Part: 9D756203

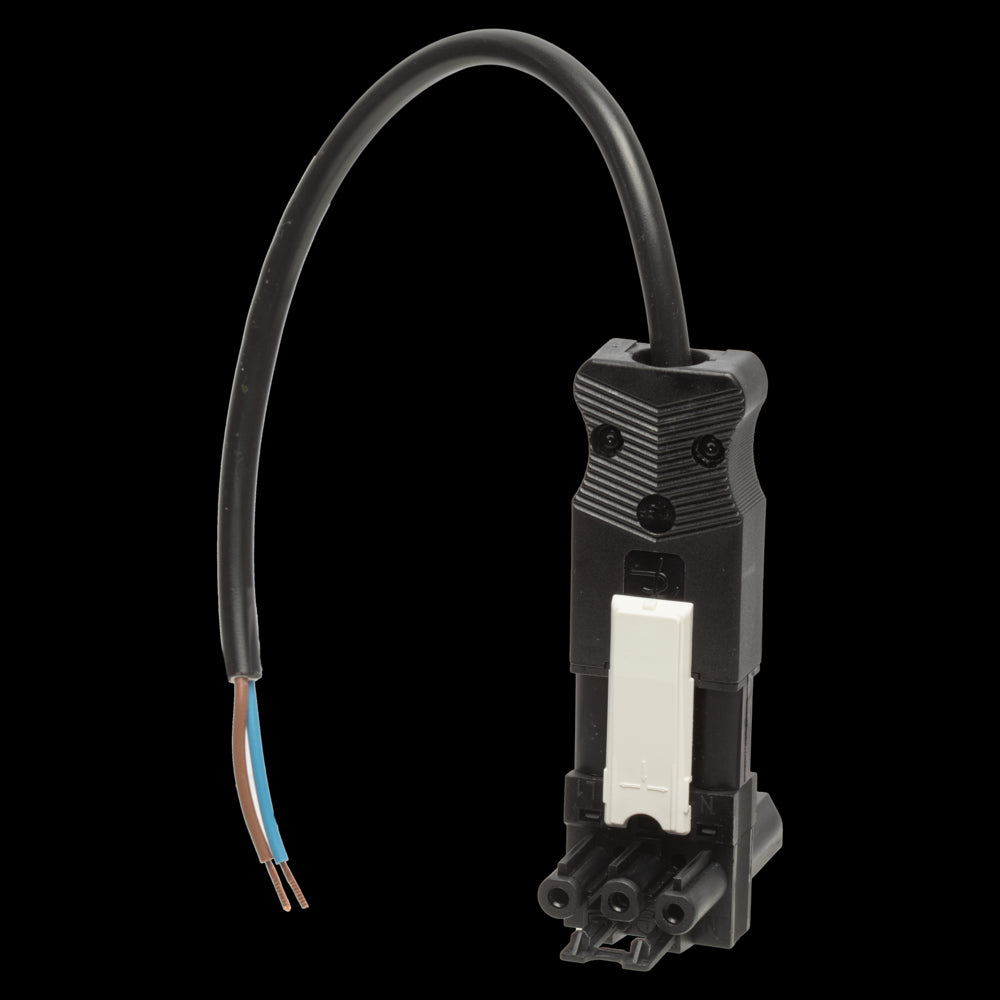

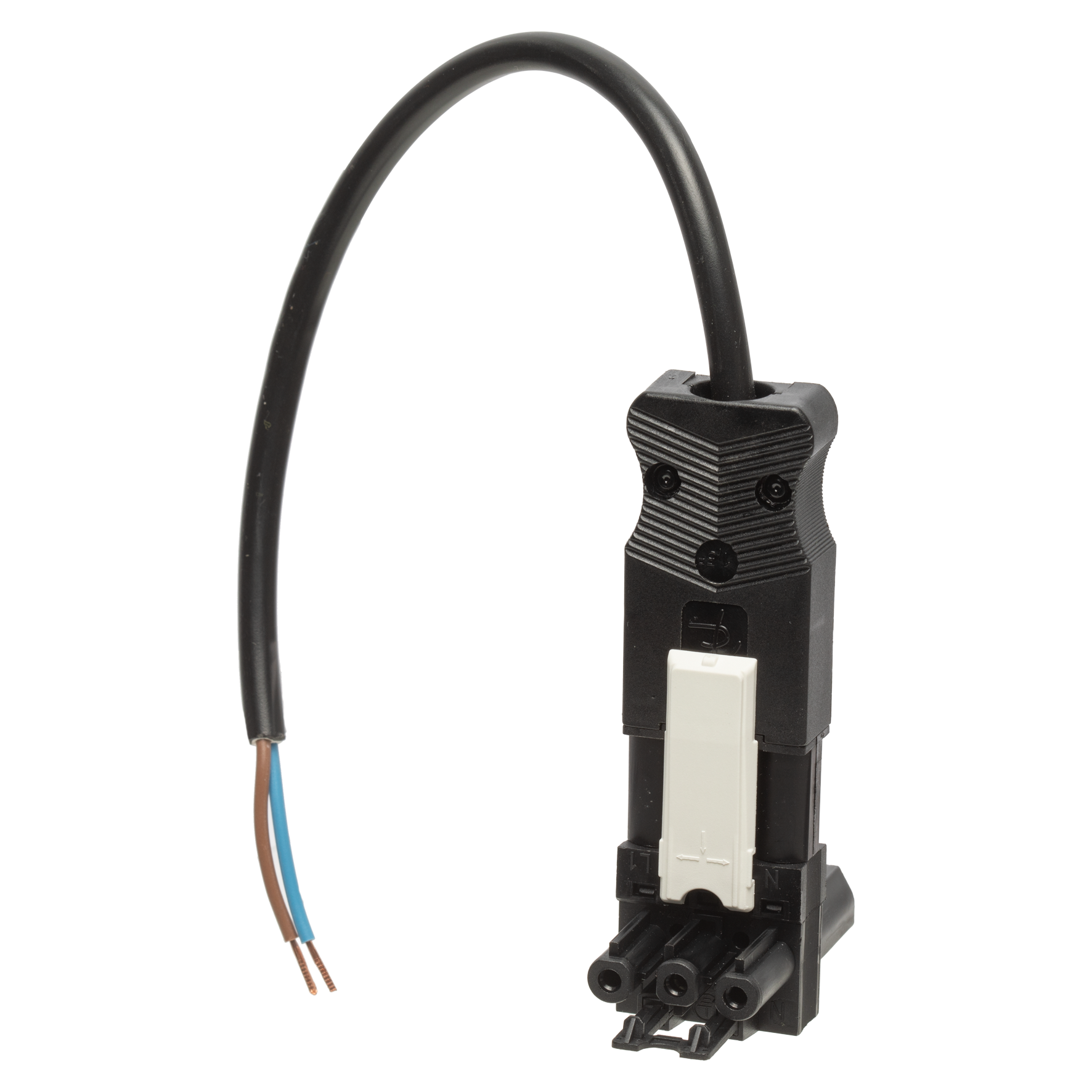

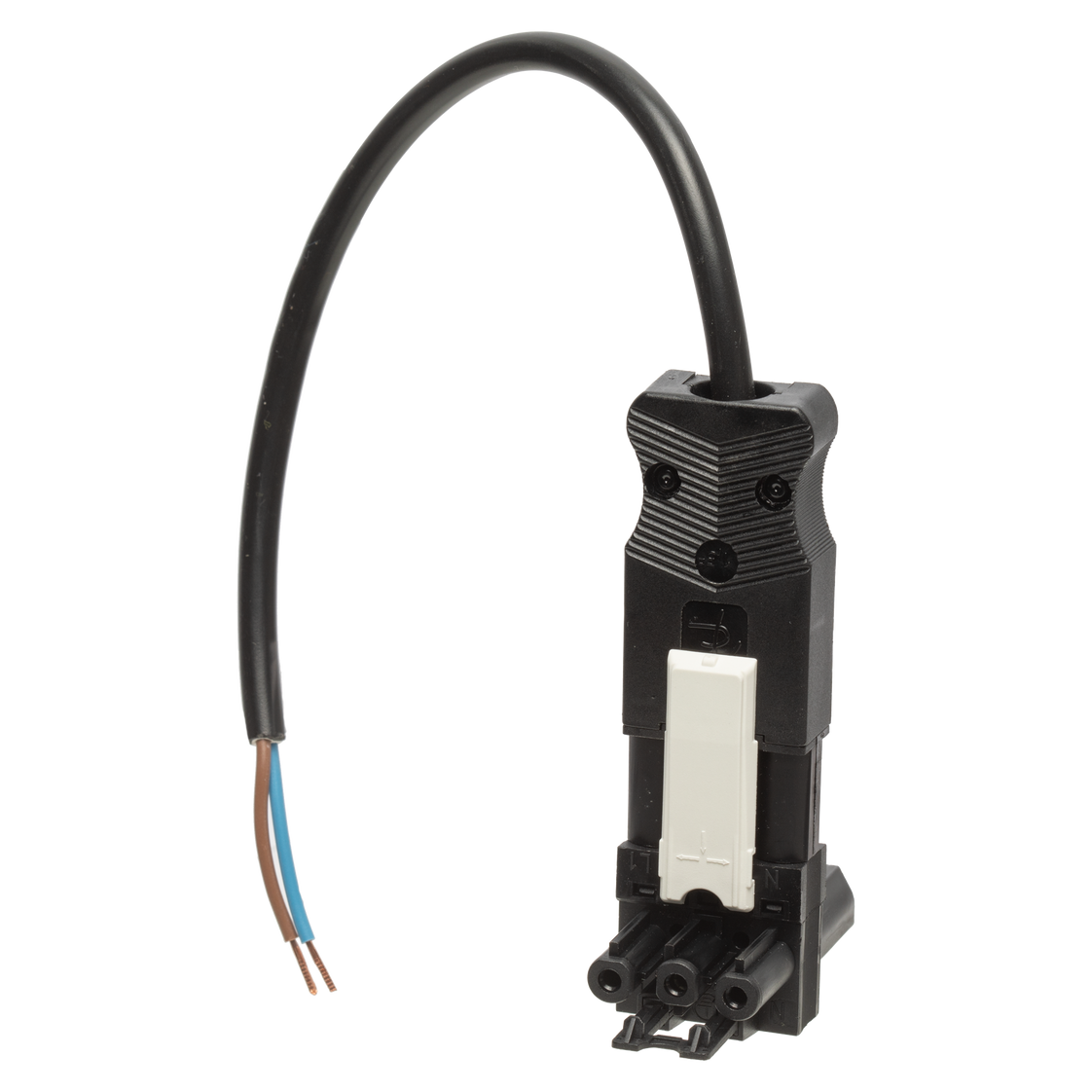

This AC 166 series connection cord from Adels is a 2-pole halogen-free connection cord equipped with a T-splitter and a free cable end. The black H05Z1Z1-F cord has a nominal conductor cross-section of 0.75mm². The total length of the connecting cord is 30cm. Furthermore, the fire classification, according to EN 13501-6, of the Adels AC 166 connecting cable is Dca.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications

Description

This AC 166 series connection cord from Adels is a 2-pole halogen-free connection cord equipped with a T-splitter and a free cable end. The black H05Z1Z1-F cord has a nominal conductor cross-section of 0.75mm². The total length of the connecting cord is 30cm. Furthermore, the fire classification, according to EN 13501-6, of the Adels AC 166 connecting cable is Dca.

Specifications

Rated voltage (V)
500
Rated current (A)
10
Number of poles
2
Type of finished cable
Device connection cable
Total length (mm)
300
Mechanical coding
No
Colour coding/contact insert
Black
Colour housing
Black
Cable type
H05Z1Z1-F
Dismantle length (mm)
32
Strip length (mm)
9
Colour outer sheath
Black
Pole codification
L, N
Nominal cross section conductor (mm²)
0.75
Locking mechanism
None
Insulating piece permanent temperature-resistant (°C)
70
Cable permanent temperature-resistant to (°C)
70
Halogen free
Yes
Surface treatment contacts
Other
Reaction-to-fire class according to EN 13501-6
Dca
