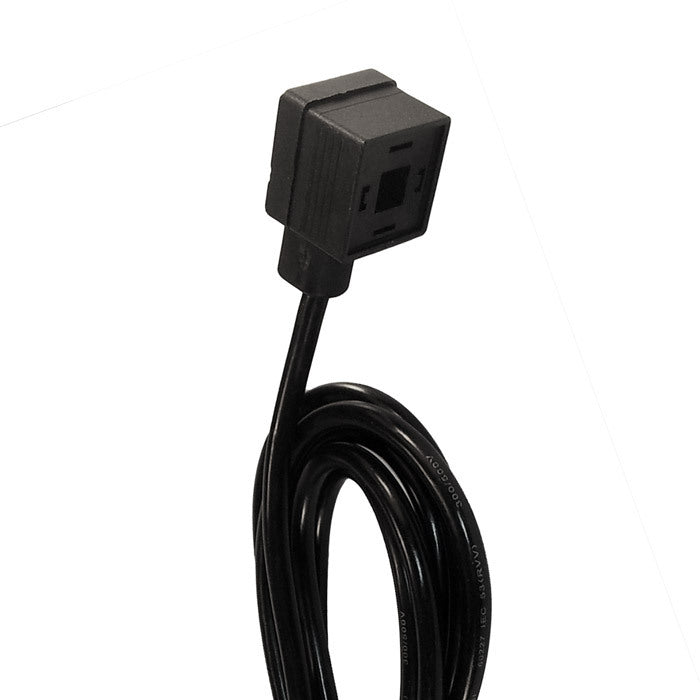

3m cable with connector (DIN - A)
Notice: This product is discontinued
Reference:
AF-CA3M
Brand:
JP Fluid Control
DIN - A connector (IP65) with three meters of cable. Suitable for solenoid valves with a DIN - A connector for voltages from 12V up to 400V.
Notice: This product is discontinued
Description
Specifications
Downloads
Related products
Description
DIN-A connector (DIN43650A) including 3 meter cable (3 x 0.75mm2) for solenoid valves or timers. You do not need to attach the cable to the connector by yourself, so you can get started right away.
Parameters
| Parameter | Value |
| Type | 43650A |
| Pin distance | 18 mm |
| Version | 2+1 earth |
| Protection Class | IP65 |
| Voltage | 12-400V AC/DC |
| Nominal current | 10A |
| Max. cable size | ≤3x1.5mm2 |
| Fixing screw | M3x28 |
Dimensions
Installation
- Connect the terminals (1) and (2) to the connector. With AC, polarity is not important. Always connect to the ground, don't use the piping as earthing.
- Mount the connector and make sure no moisture can enter between coil and connector.
- Use a round cable. Make sure that drops cannot slide along the cable into the connector.
