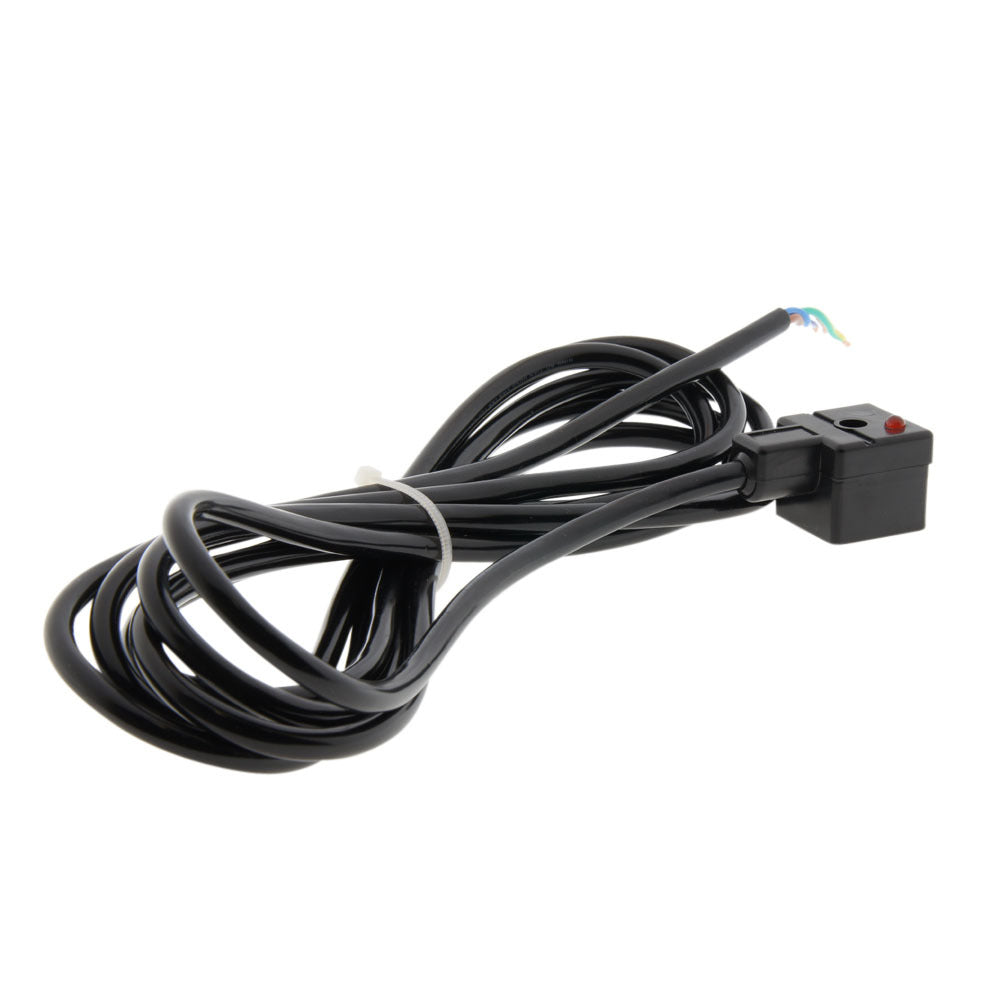

Connector (DIN-A) with 3m cable and LED

Name: Connector (DIN-A) with 3m cable and LED
Brand: JP Fluid Control
SKU: AF-CAL3M
Price: 15.63 GBP
Availability: InStock

Reference: AF-CAL3M

Brand: JP Fluid Control

DIN - A connector (IP65) with three meters of cable. Suitable for solenoid valves with a DIN - A connector for voltages from 24V up to 400V. Please note: when DC is used, the brown pole should be connected to the positive terminal.

View all

Regular price: £15.63

excl VAT

Quantity

In stock +50 days On request On request

0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 50 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Shipping to United Kingdom: £6.95

Free for orders > £75.00

Expected delivery in 52 - 54 business days

Customers rate us: 4.81 / 5

400 reviews at TrustedShops

Description

Specifications

Downloads

Description

DIN-A connector (DIN43650A) including 3 meter cable (3 x 0.75mm²) for solenoid valves or timers. You do not need to attach the cable to the connector by yourself, so you can get started right away. The LED indication is a handy tool to see whether the valve is activated. Suitable for 24-400V AC/DC.

Parameter	Value
Type	43650A
Pin distance	18 mm
Version	2+1 earth
Protection Class	IP65
Voltage	24-400V AC/DC
Fixing screw	M3x28

Dimensions

Installation

Connect the terminals (1) and (2) to the connector. With AC, polarity is not important. Always connect to the ground, don't use the piping as earthing.
Mount the connector and make sure no moisture can enter between coil and connector.
Use a round cable. Make sure that drops cannot slide along the cable into the connector.
