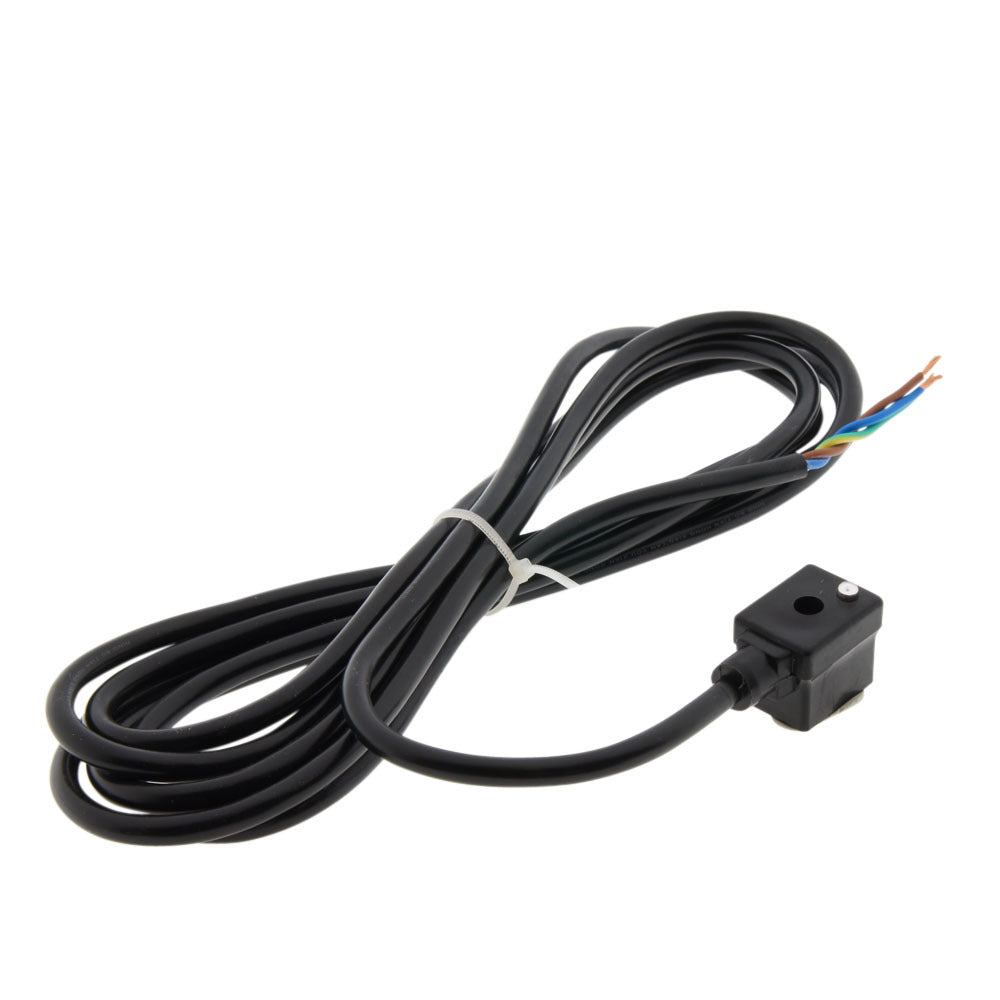

Connector (DIN-B) with 3m cable and LED
Reference:
AF-CBL3M
Brand:
JP Fluid Control
DIN - B connector (IP65) with three meters of cable. Suitable for solenoid valves with a DIN - B connector for voltages from 24V up to 400V. Please note: when DC is used, the brown pole should be connected to the positive terminal.
- Regular price
- £15.18
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 2 - 4 business days
Description
Specifications
Downloads
Related products
Description
DIN-B connector (DIN43650B) including 3 meter cable (3 x 0.75mm2) for solenoid valves or timers. You do not need to attach the cable to the connector by yourself, so you can get started right away. The LED indication is a handy tool to see whether the valve is activated. Suitable for 24-400V AC/DC. When DC is used please make sure that the brown wire is connected to the positive pole, otherwise the LED does not light up.
Parameters
| Parameter | Value |
| Type | 43650B |
| Pin distance | 11 mm |
| Version | 2+1 earth |
| Protection Class | IP65 |
| Voltage | 24-400V AC/DC |
| Nominal current | 10A |
| Max. cable size | ≤3x1.5mm2 |
| Fixing screw | M3x28 |
Dimensions
Installation
- Connect the terminals (1) and (2) to the connector. With AC, polarity is not important. Always connect to the ground, don't use the piping as earthing.
- Mount the connector and make sure no moisture can enter between coil and connector.
- Use a round cable. Make sure that drops cannot slide along the cable into the connector.
