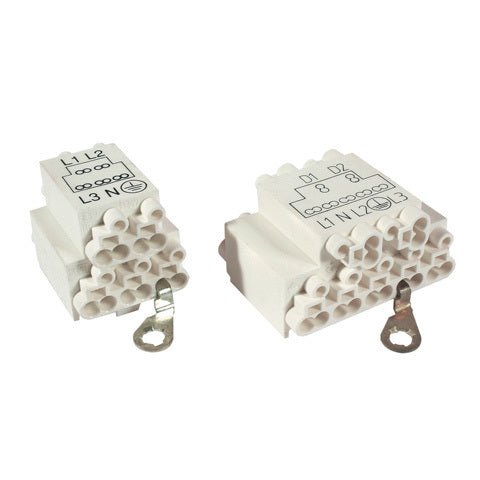

AKL 1/7+E Connection Terminal 7P 2x0.5-2.5 and 1x0.5mm2 - 88163326

AKL 1/7+E Connection Terminal 7P 2x0.5-2.5 and 1x0.5mm2 - 88163326
AKL 1/7+E Connection Terminal 7P 2x0.5-2.5 and 1x0.5mm2 - 88163326
Image may vary slightly
See specifications for accurate information.
Reference: E3KYX
Brand: Electro Terminal
Mfr. Part: 88163326

The Electro Terminal AKL floor-installation terminal block is gray in color, with dimensions of 40.9x32x22mm. It features a plug-in type electric connection and PE function. It accepts wire cross sections ranging from 0.5 - 2.5mm² and connects at the side, offering 7 potentials. The operational temperature range is between 0 - 85°C. The AKL 1/7+E SCHR terminal block has 7 poles and can take 2 wires of cross-section ranging from 0.5-2.5 mm² and 1 wire of 0.5 mm².

View all
Note: product cannot be returned
£1,750.62
excl VAT
In stock Ships in 41d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 41 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Expected delivery in 43 - 45 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

The Electro Terminal AKL floor-installation terminal block is gray in color, with dimensions of 40.9x32x22mm. It features a plug-in type electric connection and PE function. It accepts wire cross sections ranging from 0.5 - 2.5mm² and connects at the side, offering 7 potentials. The operational temperature range is between 0 - 85°C. The AKL 1/7+E SCHR terminal block has 7 poles and can take 2 wires of cross-section ranging from 0.5-2.5 mm² and 1 wire of 0.5 mm².

Specifications

Connectable conductor cross section solid-core
0.5..2.5 mm²
Rated current In
24 A
Rated voltage
400 V
Type of electrical connection 1
Plug-in connection
Type of electrical connection 2
Plug-in connection
Number of potentials
7
Mounting method
Direct mounting
Material insulation body
Other
Operating temperature
0..85 °C
Inflammability class of insulation material according to with UL94
Other
Closing plate required
No
Basic colour
Grey
PE-function
Yes
With N-disconnect slide
No
N function possible
Yes
