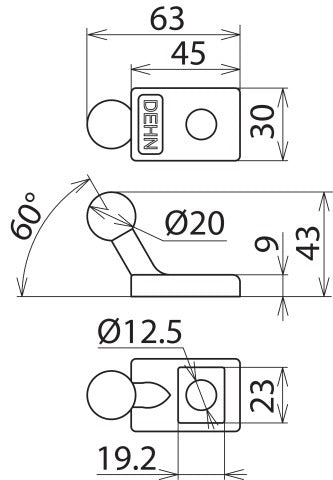

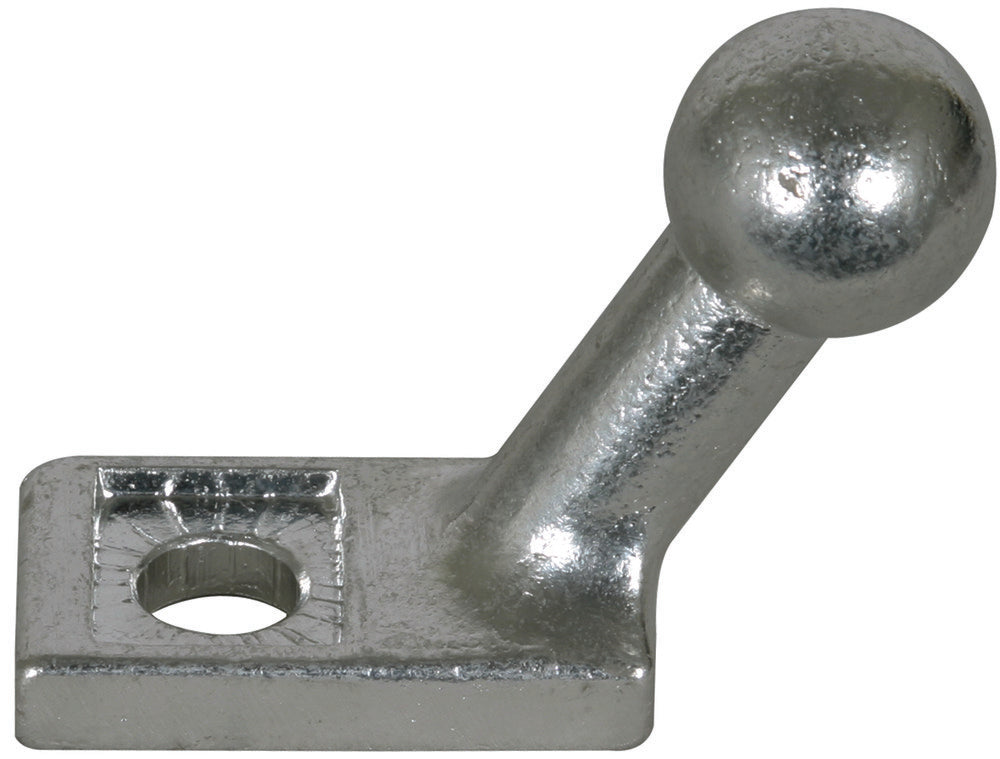

Angled Fixed Ball Point D20mm With Terminal Lug 45x30x9mm - 706300
This item is a fixed ball point with a terminal lug, presented in an angled form. It is suitable for line and earth connection point per EN/IEC 61230 (DIN VDE 0683-100) in the conductor and earth-termination system. With a high mechanical strength due to female thread (not cut), it is ideal for fixing cable lugs or connecting busbars following DIN 43673-1. It is designed to handle a maximum short circuit current of 14kA. The hardware features a lug connection of the earthing and short circuit secure point with a 20mm diameter, and it can accommodate a maximum wire cross section of copper up to 50mm².
- Regular price
- £45.36
Description
This item is a fixed ball point with a terminal lug, presented in an angled form. It is suitable for line and earth connection point per EN/IEC 61230 (DIN VDE 0683-100) in the conductor and earth-termination system. With a high mechanical strength due to female thread (not cut), it is ideal for fixing cable lugs or connecting busbars following DIN 43673-1. It is designed to handle a maximum short circuit current of 14kA. The hardware features a lug connection of the earthing and short circuit secure point with a 20mm diameter, and it can accommodate a maximum wire cross section of copper up to 50mm².
